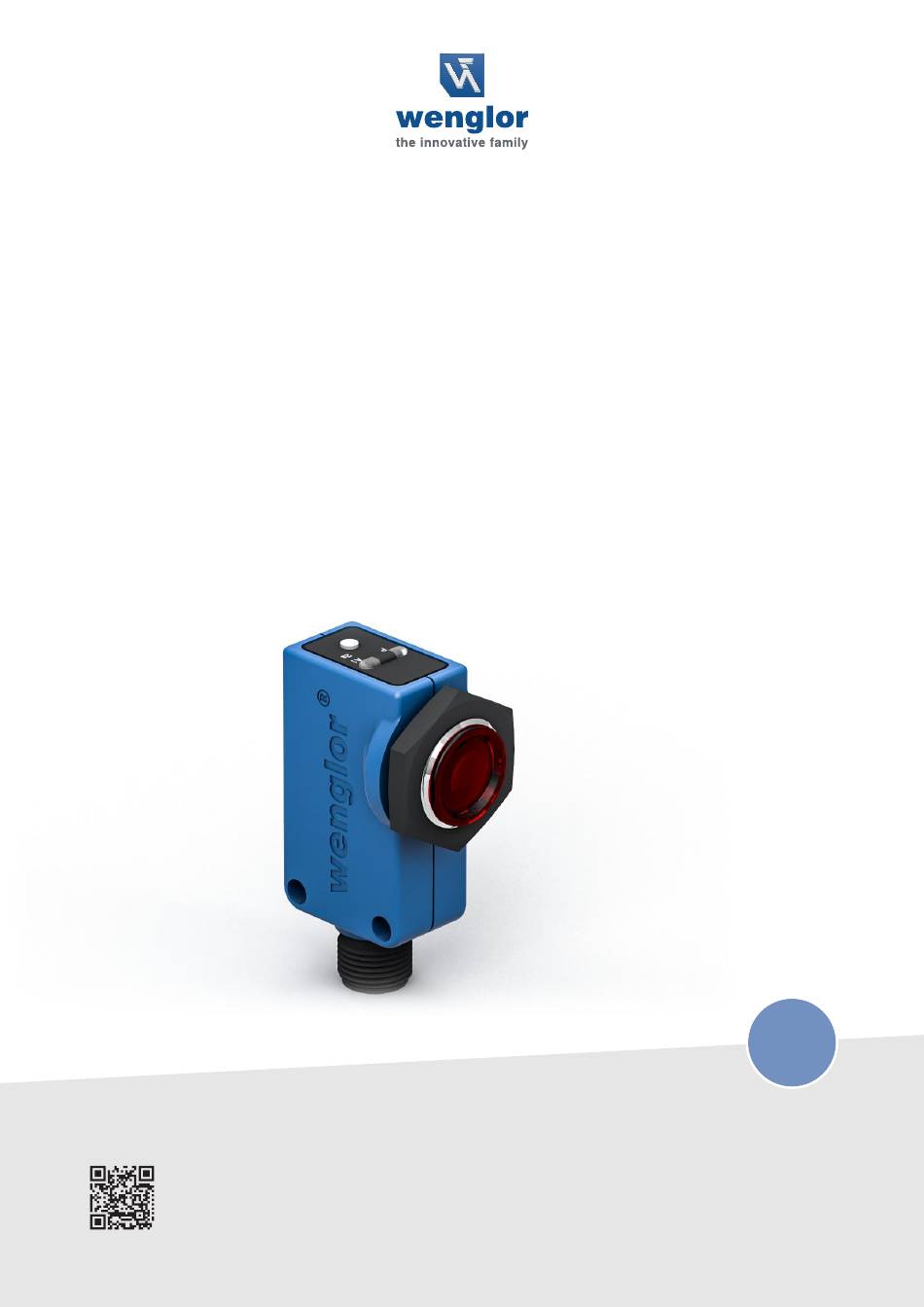

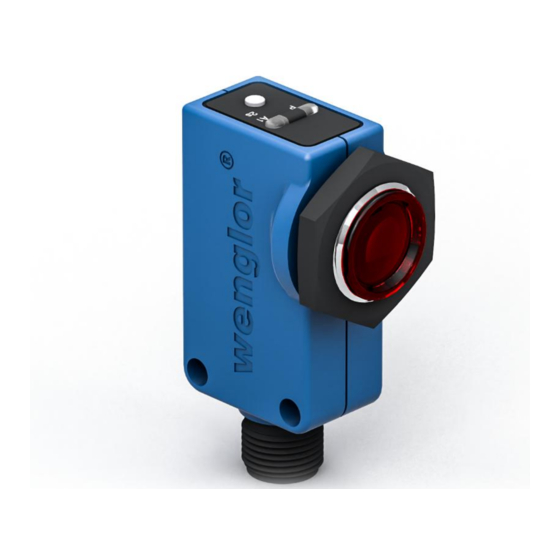

- Page 1 Operating Instructions P1RK003 Retro-Reflex Sensor for Transparent Objects Translation of the original operating instructions Subject to change without notice Available as PDF file only Version 2.0 www.wenglor.com...
-
Page 2: Table Of Contents
6.4 Pin Functions E/A2 ................................17 6.5 Additional Functions and Settings via IO-Link......................... 18 7 Maintenance Instructions ............................. 19 8 Proper Disposal ................................20 9 Declarations of Conformity............................21 Table of Contents | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 3: General
The safety precautions and warnings are laid out in accordance with the following principle: SIGNAL WORD Type and source of danger! Possible consequences in the event that the hazard is disregarded. à Measures for averting the hazard. 1 ‒ General | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 4: Limitation Of Liability
• wenglor assumes no liability for printing errors or other inaccuracies contained in these operating in- structions unless wenglor was verifiably aware of such errors at the point in time at which the operat- ing instructions were prepared. -
Page 5: Copyrights
• All rights are reserved by wenglor. • Commercial reproduction or any other commercial use of the provided content and information, in particular graphics and images, is not permitted without previous written consent from wenglor. 1 ‒ General | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 6: For Your Safety
• The product is not suitable for use in potentially explosive atmospheres. • The product may be used only with accessories supplied or approved by wenglor, or in combination with approved products. A list of approved accessories and combination products can be found at www.wenglor.com on the product detail page. -
Page 7: Personnel Qualifications
Read the operating instructions carefully before using the product. Protect the sensor against contamination and mechanical influences. Approvals and Protection Class IND. CONT. EQ 72HL / E189727 For use in class 2 circuits 2 ‒ For Your Safety | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 8: Technical Data
Protection Class Mechanical Data Setting Method Teach-In Housing Material Plastic, PBT Brass, nickel-plated Full Encapsulation Degree of Protection IP67/IP68 Connection M12 × 1; 4-pin Output Functions Output Adjustable Parameters 3 ‒ Technical Data | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 9: Light Spot Diameter
0 ... 1,5 m RR25KP 0 ... 0,7 m RR21_M 0 ... 1 m ZRAE02B01 0 ... 1 m ZRME01B01 0 ... 0,6 m ZRME03B01 0 ... 2 m 3 ‒ Technical Data | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 10: Housing Dimensions
To increase stability when detecting highly transparent objects, it is advisable to use reflectors with mi- crostructure. Housing Dimensions M4 screw = 0.5 Nm Dimensions specified in mm (1 mm = 0.03937") Control Panel 30 = switching status indicator / contamination warning 3 ‒ Technical Data | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 11: Complementary Products
68 = supply voltage indicator Complementary Products wenglor offers you the right connection and mounting technology as well as other accessories for your product. You can find this at www.wenglor.com on the product details page at the bottom. Scope of Delivery •... -
Page 12: Transport And Storage
• Protect the product against exposure to direct sunlight. NOTICE Risk of property damage in case of improper storage! The product may be damaged. à Storage instructions must be complied with. 4 ‒ Transport and Storage | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 13: Installation And Electrical Connection
Risk of personal injury or property damage due to electric current. Voltage-conducting parts may cause personal injury or damage to equipment. à The electric device may be connected by appropriately qualified personnel only. 5 ‒ Installation and Electrical Connection | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 14: Diagnosis
Check electrical wiring and eliminate the short approx. 5 Hz circuit Over-temperature Disconnect the sensor from the supply voltage and allow it to cool Hardware error Replace the sensor 5 ‒ Installation and Electrical Connection | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... - Page 15 Risk of personal injury or property damage in case of non-compliance! The system’s safety function is disabled. Personal injury and damage to equipment may occur. à Required action as specified in case of fault. 5 ‒ Installation and Electrical Connection | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects...
-
Page 16: Settings
To this end, the sensor is connected to a suitable IO-Link master (see product detail page/complementary products). The interface protocol and the IODD can be found at www.wenglor.com in the download area for the respective product. For information on installing and connecting the wTeach2 software and its structure, as well as information on the general functions, see the wTeach2 operating instructions. -
Page 17: Dynamic Readjustment
2. Disconnect pin E/A2 or apply 0 V to it for at least 2 seconds (4 seconds maximum). 3. As soon as the voltage is applied to the input, A1 is taught in. Error/Contamination Output The error output is switched in the following cases: 6 ‒ Settings | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 18: Additional Functions And Settings Via Io-Link
Additional Functions and Settings via IO-Link • PNP/NPN/push-pull • NC/NO • Switching hysteresis • On/off-delay • Mode of operation • Switch emitted light off • Test mode • Data storage (IO-Link) 6 ‒ Settings | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 19: Maintenance Instructions
Cleaning and inspection of the plug connections at regular intervals are advisable. Do not clean the sensor with solvents or cleaning agents that could damage the product. The product must be protected against contamination during initial start-up. 7 ‒ Maintenance Instructions | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 20: Proper Disposal
Proper Disposal wenglor sensoric GmbH does not accept the return of unusable or irreparable products. Respectively valid national waste disposal regulations apply to product disposal. 8 ‒ Proper Disposal | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects... -
Page 21: Declarations Of Conformity
Declarations of Conformity Declarations of conformity can be found on our website at www.wenglor.com in the product’s separate download area. 9 ‒ Declarations of Conformity | P1RK003 ‒ Retro-Reflex Sensor for Transparent Objects...
