BlueAnt X1i Manual

Inside the box

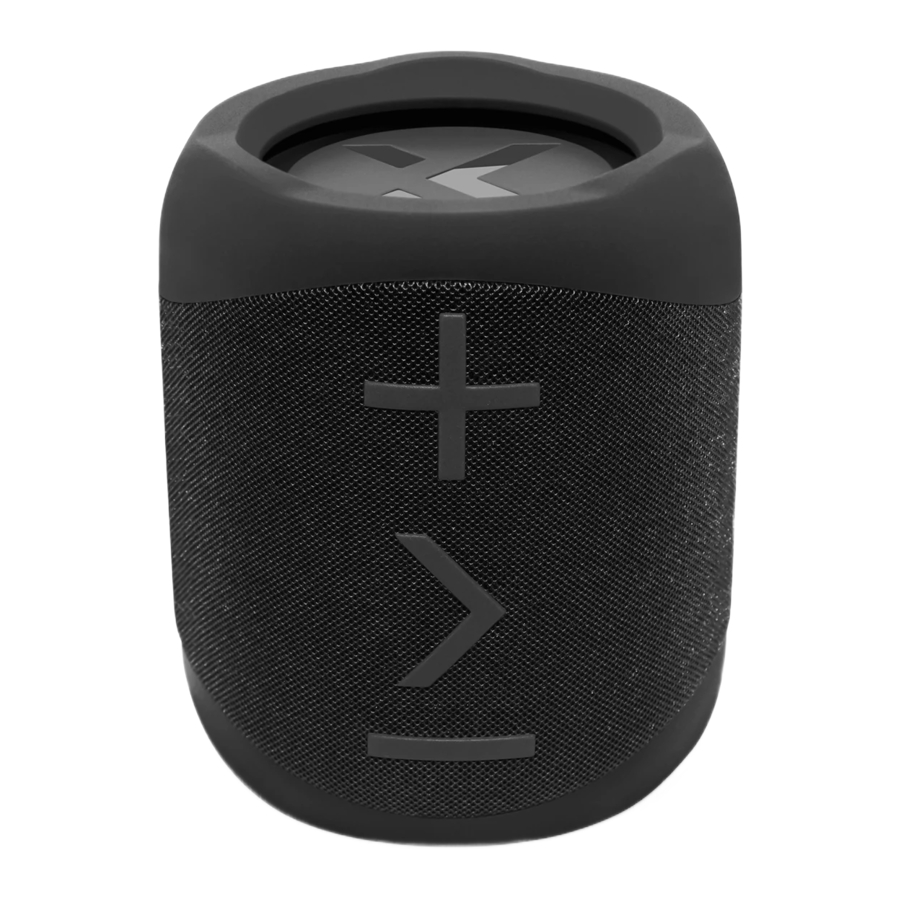

Get to know your device

Item	Button	Function
1		Power button - Short press to power on/off
2		Bluetooth Indicator
3		Battery Indicator
4		AUX in Jack 3.5mm
5		USB-C Charge slot - USB-C cable supplied
6		Volume Up - Short press Skip forward button Long press
7		Play/Pause button - Click to play/pause Double Click for Siri/Google Click to answer/end, Double Click to reject call
8		Microphone
9		Volume Down - Short press Skip backward button - Long press

Getting started

Power On/Off

Short press button to power on/off the speaker. The indicator light will flash blue. Each time the speaker powers on it will reset to 50% volume. After 10 minutes with no connection, the X1i will automatically power off to conserve battery.

Modes

Bluetooth Mode

1. Pairing
   Power on the speaker and enter Bluetooth mode. The light indicator will flash. On your smartphone search Bluetooth devices for the "BlueAnt X1i". Once connected, the speaker will announce it is "connected" and the indicator light will cease flashing.
2. Music

	Click to increase volume
	Press and hold for 1.5 seconds to skip forward a track
	Click to play/pause
	Click to decrease volume
	Press and hold for 1.5 seconds to skip back a track

3. Calls

	Click to answer an incoming call
	Click to end the active call
	Double click to reject an incoming call or press and hold

4. Siri/Google

Double click to active/cancel Siri/Google voice dialing

5. Disconnect

Press and hold for 8 seconds to disconnect the current Bluetooth connection. The X1i will prompt "disconnected". Then other Bluetooth devices can find and pair with the X1i.

6. Duo Mode
   Dual speaker wireless stereo pairing for wide stereo sound stage.
   The X1i and X2i can be paired to each Other in Duo Mode
   1. Press the power button on the first speaker to turn the speaker "On"
   2. Press and hold the Volume + and Volume - buttons on the first speaker until the speaker says "Duo Mode pairing" then release the buttons.
   3. Press the power button on the second speaker to turn the speaker "On"
   4. Press and hold the Volume + and Volume - buttons on the second speaker until the speaker says "Duo Mode pairing" then release the buttons.
   5. Please wait until one speaker says "Duo Mode connected". This may take up to 1 minute. The speakers are now connected to each other.
   6. The speaker that says "Duo Mode connected" is the master speaker and this is the speaker that you should pair with your phone.

For Bluetooth pairing, search for "BlueAnt X1i" on your smartphone. If you receive a phone call while in Duo Mode, the call will only come through the master speaker.
When in Duo Mode and you power off one speaker, both speakers will power off. When you power on the speakers, they need to be turned on individually. When both speakers are powered on, Duo Mode will automatically reconnect and you will hear "Duo Mode connected".

To disconnect Duo Mode, press and hold Volume + and Volume - until you hear "Duo Mode disconnected".
To clear Duo Mode pairing, press and hold Volume + and Volume - until the speaker says "Duo Mode cleared". This takes about 8 seconds. Assuming direct line of sight, you should achieve be able to achieve a range of over 40 metres between the two speakers. When used indoors the range will be affected by internal walls or obstacles between the speakers.

AUX in Mode

Use 3.5mm audio cable to connect the speaker to an audio source (PC, MP3/MP4, mobile phone). When you plug the AUX cable into the X1i, it will automatically change to AUX in mode. When you unplug the AUX cable the X1i will change back to Bluetooth mode. The speaker will play the music from the audio source.

	Click to increase volume
	Click to mute play back
	Click to decrease volume

To change or control tracks, please use your music source when in AUX in mode.

Charging

Please use the supplied USB-C cable to charge the X1i. A full charge will take around 3 hours. Please close the port cover after you have charged the X1i.

SPLASHPROOF - The BlueAnt X1i features splashproof rating IP56. The X1i is only splashproof when the port cover is closed.

Safety Information

Important Safety Information
PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE USE OF BLUEANT DEVICES

PROTECT YOUR HEARING
BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS

ONLY CHARGE WHEN DEVICE IS CLEAN AND DRY

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions. BlueAnt recommends that you take the following precautions. Avoid leaving your device in direct sunlight.

• Do not leave your device, or use your device, in any area where the temperature may exceed 50 degrees Centigrade, such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.
• Do not leave your device, or use your device, in any area where the temperature is likely to drop below 0 degrees Centigrade (32 degrees Fahrenheit).
• Do not leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device to malfunction.

PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL). TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.

• Do not use any household or industrial grade detergents or cleaners to clean your device. If your device becomes dirty or smeared, in most instances a wipe with a dry or slightly damp cloth should be sufficient to clean it.
• Do not leave your Bluetooth device plugged into a wall for long periods after it is fully charged. BlueAnt does not recommend long periods of continued charging.
• Before charging your BlueAnt device, make sure that the AC outlet, adaptor and cable are not damaged. If you notice any abnormalities, seek advice from a qualified professional.
• If travelling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
• Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed. Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved by BlueAnt, including but not limited to batteries, antennas, wall adapters, car charger, ear gels and foam tips and convertible covers, may cause your BlueAnt device to malfunction or in the case of non approved electrical accessories may cause the device to exceed RF energy exposure guidelines.

Limited Global Warranty

For warranty and technical support, please email care@blueantwireless.com visit www.blueantwireless.com or call 1300 669 049
Register your BlueAnt product for warranty and new product updates at register.blueantwireless.com

BlueAnt Wireless
Suite 6, 861 Doncaster Road
Doncaster, Vic, 3109 Australia

HELP & SUPPORT
Visit support.blueantwireless.com
Email: care@blueantwireless.com
Contact: 1300 669 049
Register your BlueAnt product for warranty and new product updates at register.blueantwireless.com

www.blueantwireless.com
