BlueAnt X-3D Manual

Inside the box

The X3D is capable of very high volume output. For Continuous Play, please use the supplied Fast Charger and Fast Charging Cable for endless uninterrupted audio.

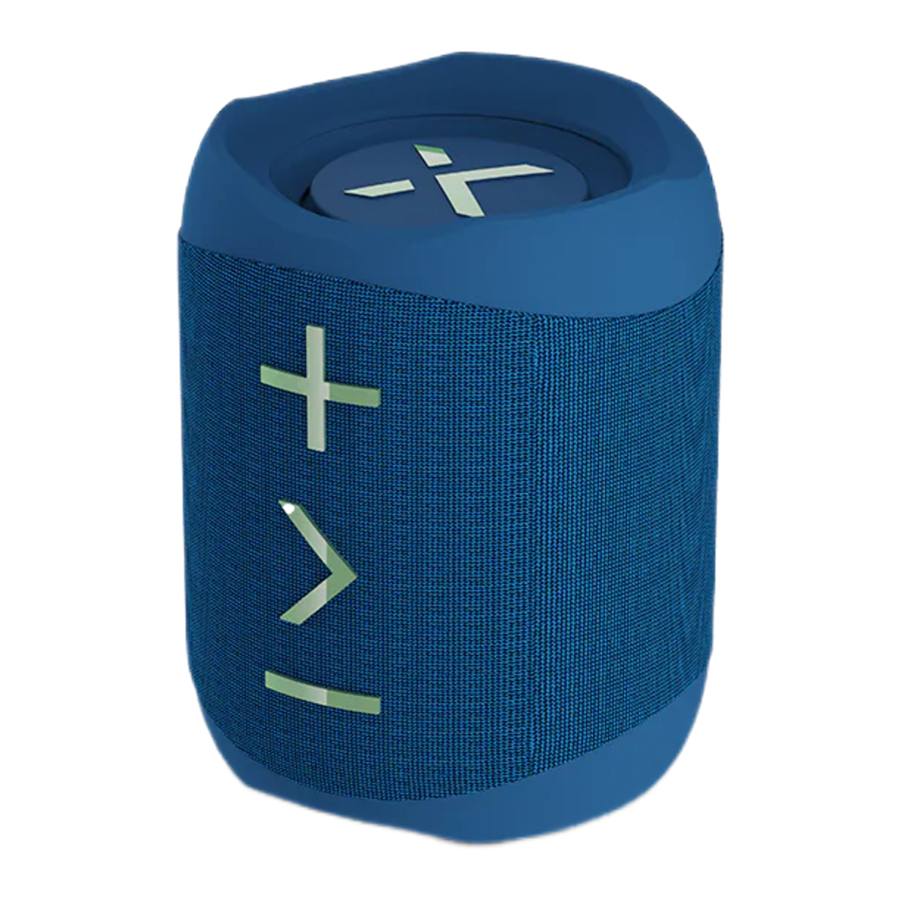

Get to know your X3D Speaker

Item	Button	Function
1		Power Button - Press for 1.5 seconds to power on Press for 1.5 seconds to turn off
2		Bluetooth Indicator
3		Battery Indicator
4		AUX in Jack 3.5mm
5		USB-C Charge Port - USB-C to USB-C cable supplied
6		Volume Up - Click or press and hold
7		Click to Play/Pause Double Click to skip forward a track Click to Answer/End a Call Double Click or press and hold to reject a call
8		Microphone
9		Volume Down - Click or press and hold
10		Press for 1.5 seconds to disconnect Bluetooth

Let's Get Started

Charging the X3D

Please use the supplied USB-C to USB-C Fast charge cable and Fast charger to charge the X3D. A full charge will take around 2 hours. Please close the port cover after you have charged the speaker.
WATERPROOF - The X3D features waterproof IP67 rating. The speaker is only waterproof when the port cover is closed.

Power ON/OFF

1. Press and hold the power button for 1.5 seconds to power the speaker ON or OFF.

Each time the speaker powers on, it will reset to 25% volume. After 10 minutes with no connection, the speaker will automatically power OFF to conserve battery.

MODES

1. Bluetooth Mode - Pairing the speaker to your phone or device
   1. Power ON the speaker and press button to go into Bluetooth pairing. The light indicator will flash.
   2. On your phone or device, look for "BlueAnt X3D" under the Bluetooth settings menu. Click on "BlueAnt X3D" on your phone.
   3. Once paired, the speaker will say "Connected" and the LED display will stop flashing. You are now ready to play some music!
2. Using the buttons for playing music

   	Click or press and hold to increase volume
   	Click to Play/Pause Double click to skip forward a track
   	Click or press and hold to decrease volume

3. Calls

   	Click to answer an incoming call
   	Click to end the active call
   	Double click to reject an incoming call or press & hold

4. Disconnect

   Press and hold the Bluetooth button for 1.5 seconds to disconnect the current Bluetooth connection. The speaker will prompt, "Disconnected". Then other Bluetooth devices can find and pair with the speaker.

5. Duo Mode
   Duo Mode Connection
   The BlueAnt X3D can be paired to another X3D or an X3D Max in Duo Mode
   1. Press the power button on the PRIMARY speaker, to turn the speaker on.
   2. Then on the PRIMARY speaker, press and hold the Volume + & Volume - buttons for 1.5 seconds, until the speaker says, "Duo Mode Pairing". Then release the button.
   3. Press the power button on the SECONDARY speaker, to turn the speaker on.
   4. Then on the SECONDARY speaker, press and hold the Volume + & Volume - buttons for 1.5 seconds until the speaker says, "Duo Mode Pairing". Then release the button.
   5. Please wait until one speaker says, "Duo Mode Connected". This may take up to 1 minute. The speakers are now connected to each other

For Bluetooth pairing, search for "BlueAnt X3D" on your smartphone. If you receive a call while in Duo Mode, the call will only come through the PRIMARY speaker.
When in Duo Mode and you power off one speaker, BOTH speakers will power off. When you power on the speakers, they need to be turned on individually.
When you power on the SECONDARY speaker, if it had previously been connected in Duo mode, it will reconnect to the PRIMARY speaker.

Duo Mode Disconnection

To disconnect Duo Mode, press and hold the Volume + & Volume - buttons for 1.5 seconds, on the SECONDARY speaker until the speaker says, "Duo Mode Disconnected". The speaker will then say, "Duo mode Cleared".
This means the SECONDARY speaker will no longer automatically reconnect to the PRIMARY speaker when it powers on.
Assuming direct line of sight, you should be able to achieve a range of over 30 metres between the speakers. When used indooors, the range will be affected by internal walls or obstacles between the speakers.

AUX In Mode

Use 3.5mm audio cable to connect the speaker to an audio source (PC, MP3/MP4, mobile phone). When you plug the AUX cable into the speaker, it will automatically change to AUX In Mode. When you unplug the AUX cable, the speaker will change to Bluetooth mode. The speaker will play the music from the audio source.

	Click or press and hold to increase volume
	Click to mute/unmute play back
	Click or press and hold to decrease volume

To change or control tracks, please use your music source when in AUX In Mode.

Important Safety Information

PLEASE READ THIS ENTIRE DOCUMENT CAREFULLY, BECAUSE IT CONTAINS IMPORTANT INFORMATION ABOUT THE USE OF BLUEANT DEVICES

PROTECT YOUR HEARING
BLUEANT DEVICES CAN REACH VOLUMES ABOVE 100 DECIBELS
ONLY CHARGE WHEN DEVICE IS CLEAN AND DRY

Care and Handling

Your BlueAnt Bluetooth device is a precision engineered instrument. To ensure its ongoing performance, you should look after it as you would any quality consumer electronic product, and use it in accordance with the instructions. BlueAnt recommends that you take the following precautions. Avoid leaving your device in direct sunlight.

• Do not leave your device, or use your device, in any area where the temperature may exceed 45 degrees Centigrade, such as inside a closed car on a hot day. Remember that on a hot day, the temperature inside a closed car may be significantly higher than the outside air temperature.
• Do not leave your device, or use your device, in any area where the temperature is likely to drop below 0 degrees Centigrade (32 degrees Fahrenheit).
• Do not leave your device, or use your device, in any area exposed to humidity, dust, soot, other foreign objects, smoke, or steam as this may cause your device to malfunction.

PROLONGED USE AT HIGH VOLUMES MAY AFFECT YOUR HEARING CAPACITY AND MAY RESULT IN NOISE INDUCED HEARING LOSS (NIHL). TURN OFF THE POWER TO YOUR DEVICE WHEN NOT IN USE.

• Do not use any household or industrial grade detergents or cleaners to clean your device. If your device becomes dirty or smeared, in most instances a wipe with a dry or slightly damp cloth should be sufficient to clean it.
• Before charging your BlueAnt device, make sure that the AC outlet, adaptor and cable are not damaged. If you notice any abnormalities, seek advice from a qualified professional.
• If travelling internationally, ensure that your BlueAnt wall or car power adapter is approved for use in the country where you plan to use it and that the adapter voltage is suited to the local power supply.
• Should a fault develop with your BlueAnt product, contact BlueAnt for advice on how to proceed. Do not attempt to repair or alter any BlueAnt product yourself.

Approved Accessories

The use of accessories not approved by BlueAnt, including but not limited to batteries, antennas, wall adapters, car charger, ear gels and foam tips and convertible covers, may cause your BlueAnt device to malfunction or in the case of non approved electrical accessories may cause the device to exceed RF energy exposure guidelines.

REGISTER & SCAN
Register your BlueAnt product for warranty and new product updates by scanning the QR Code above
register.blueantwireless.com

Visit support.blueantwireless.com or email: care@blueantwireless.com
blueantwireless.com
