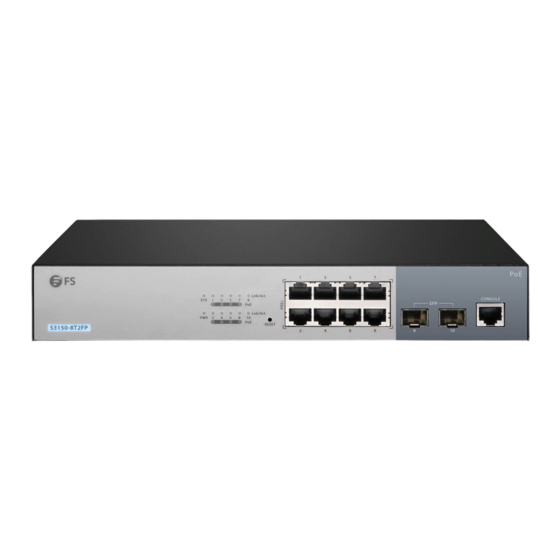

FS S3150-8T2FP Configuration Manual
Poe+ series switches loopback detection configuration guide
Hide thumbs
Also See for S3150-8T2FP:
- Installation manual ,
- Quick start manual (56 pages) ,
- Web configuration manual (55 pages)
Subscribe to Our Youtube Channel
Related Manuals for FS S3150-8T2FP
Summary of Contents for FS S3150-8T2FP

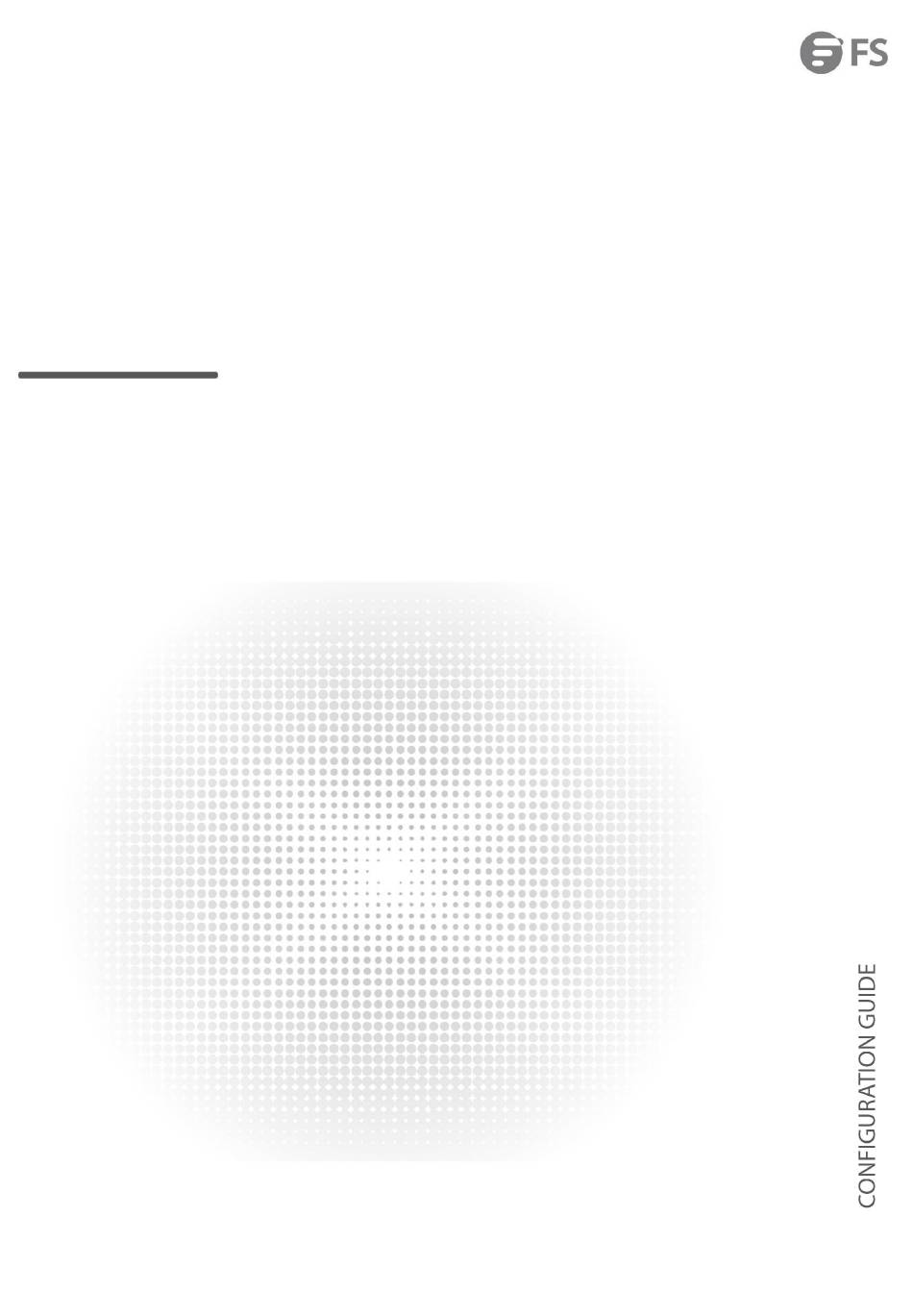

- Page 1 POE+ Series Switches Loopback Detection Configuration Guide Models: S3150-8T2FP S3260-8T2FP S3260-16T4FP S3400-24T4FP S3400-48T4SP...
-
Page 2: Table Of Contents
POE+ SERIES SWITCHES LOOPBACK DETECTION CONFIGURATION GUIDE Contents 1. Loopback Detection Configuration ..............................1 1.1 Introduction to Loopback Detection ..............................1 1.1.1 Format of Loopback Detection Packet ............................1 1.2 Loopback Detection Configuration Task List ............................2 1.3 Loopback Detection Configuration ..............................2 1.3.1 Configuring Global Loopback Detection ........................... -
Page 3: Loopback Detection Configuration
RESERVE Reserve the field SYSMAC MAC address of OLT system Serial number of the packet, it will be SEQUENCE automatically generated before forwarding the packet Port number, the 85 product is global port DiID number 0x0000 end mark www.fs.com... -
Page 4: Loopback Detection Configuration Task List
Purpose [no] loopback-detection hello-time time Configure loopback-detection recovery-time As the network is in change, the loopback detection is a lasting process. The port forwards loopback detection packets regularly. The time interval, i.e. loopback-detection hello-time is 3 seconds in default. www.fs.com... -
Page 5: Configuring Loopback-Detection Control
When the controlled action of this port is set to shut down, it is improper to regard that loopback exists on this port for a shutdown port has already not forwarded packets. There is no loopback by default. www.fs.com... -
Page 6: Configuring The Upper Threshold The Loop Detection Frame Received Every Minute
1.4 Configuration Example Figure 1.1 Loopback Detection Configurations As shown in Figure 1.1, port OLT S1 designates loopback detection of certain VLAN (1,2,3): Switch S1: Configure interface GigaEthernet0/1: switchport trunk vlan-untagged 1-3 switchport mode trunk loopback-detection enable loopback-detection control block www.fs.com... - Page 7 Global Configuration: vlan1-3 Switch S3: Configure interface GigaEthernet0/1: switchport pvid 3 If S3 has loopback and PVID of the port is 3, the packets will forward back to G5/1 of S1. S1 will block G5/1 if there is loopback. www.fs.com...
- Page 8 Copyright © 2009-2020 FS.COM AII Rights Reserved.
