Canon imageCLASS MF236n / MF232w Manual

Product Overview

THIS SERVICE GUIDE INCLUDES THE INFORMATION RELATING TO THE imageCLASS MF236n and MF232w.
SPECIFICATIONS AND OTHER INFORMATION CONTAINED HEREIN MAY VARY SLIGHTLY FROM ACTUAL DEVICE VALUES OR THOSE FOUND IN ADVERTISING AND OTHER PRINTED MATTER.
USE OF THIS SERVICE GUIDE SHOULD BE STRICTLY SUPERVISED TO AVOID DISCLOSURE OF CONFIDENTIAL INFORMATION.
ALL PRICES LISTED ARE SUBJECT TO CHANGE WITHOUT NOTICE.
PART NUMBERS LISTED MAY BE CHANGED WITHOUT NOTICE TO REFLECT ENGINEERING REVISIONS.

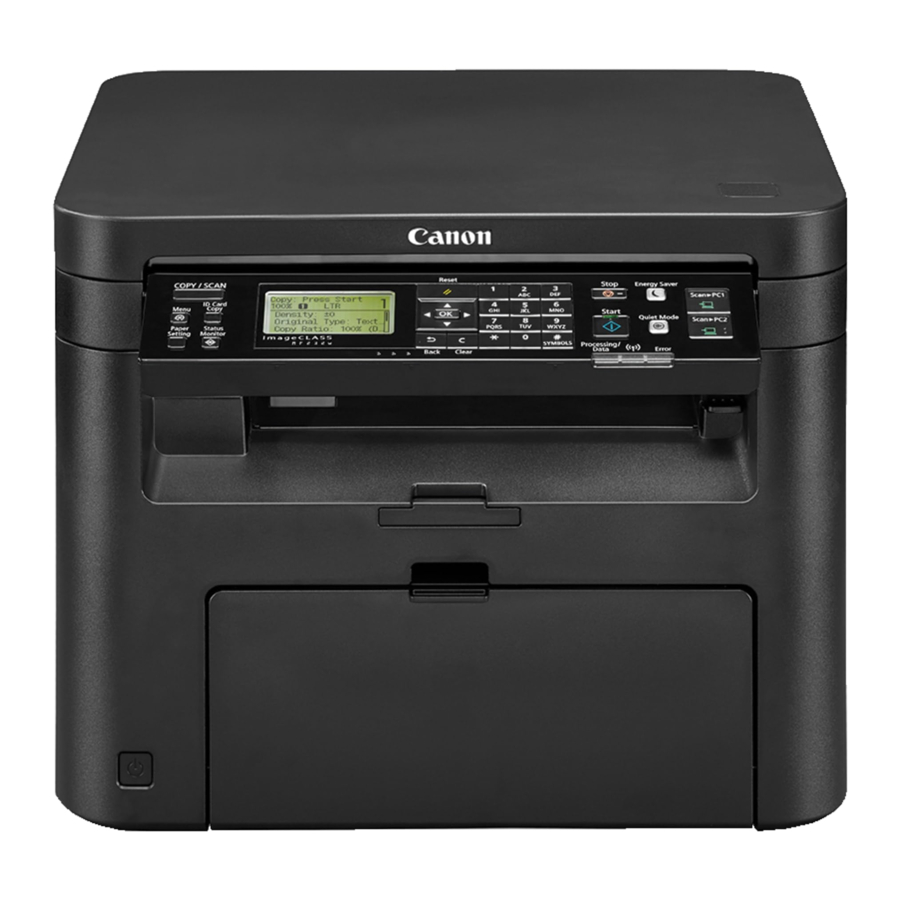

The Canon imageCLASS MF236n and imageCLASS MF232w are compact, B&W (black-and-white) multi-function printers. These models bring the following capabilities to users:

• The imageCLASS MF236n is a 4 in 1 device (print, scan, copy, fax) that prints in B&W at speeds of up to 24 ppm (pages-per-minute) using 1-sided LTR (letter-sized) paper^[1]. It is a simplex printer with an automatic document feeder, and a touch LCD display.
• The imageCLASS MF232w is a 3 in 1 device (print, scan, and copy) that prints in B&W at speeds of up to 24 ppm (pages-per-minute) using 1-sided LTR (letter-sized) paper¹. It offers wireless connectivity with an LCD display.
• Print resolution of up to 600 dpi (dots per inch).
• Standard front-loading paper cassette with a capacity of up to 250 sheets and a multi-purpose tray with a capacity of 1 sheet (LTR, 20 lb bond (80 g/m²)).
• Meets the ENERGY STAR guidelines for energy efficiency.
• Standard UFR (Ultra-Fast Rendering) II LT printing.
• Built-in network connectivity that supports network printing.
• The imageCLASS MF232w supports mobile printing from Apple iOS and Android mobile devices without the need for a router.

Product Configuration, Box Contents, and Monthly Print Volume

Configuration and eCarePAKs

Note: All configurations shown are for reference purposes only, and are subject to change without notice. Please refer to the Price List in the CNA (Canon Network Access) Web site www.cna.cusa.canon.com for the most up-to-date item numbers.

Table 1 — Configuration

Item	Item Number 2
imageCLASS MF236n	imageCLASS MF232dw
imageCLASS MF236n	1418C036AA
imageCLASS MF232w	1418C048AA
Supplies and Consumables
Cartridge 137 (Yields approximately 2,400 pages (LTR), with the factory default print density setting.)	9435B001AA
Service Materials and Parts Catalog
imageCLASS MF240/MF230 Series Service Manual	Available for download on the e-Support Web site
imageCLASS MF240/MF230 Series Parts Catalog

Table 2 — eCarePAKs
eCarePAKs are available for purchase through an Authorized Canon Reseller or Distributor. For more information, see "eCarePAK Extended Service Plan," .

Model	Type	Tier	Extended Coverage Length and Type	Item Number2
imageCLASS MF236n and MF232w	eCarePAK	1E	1 Year Exchange/Carry-In	5707B038AA
			2 Year Exchange/Carry-In	5707B039AA
			3 Year Exchange/Carry-In	5707B040AA
			4 Year Exchange/Carry-In	5707B041AA

2 Item numbers and part numbers are subject to change without notice.

Box Contents

Note: The box contents shown below are for reference purposes only, and are subject to change without notice.

• imageCLASS MF236n or
• Warranty Card imageCLASS MF232w
• Power Cord
• Getting Started Guide
• User Software DVD-ROM
• Starter Cartridge 137 (1,700 pages)
• Telephone Cable (imageCLASS MF236n only)

Monthly Print Volume

The optimum performance range is the volume range that the equipment is intended to run on a regular basis to maintain a high-level of performance and print/copy quality.
The maximum monthly print volume is the maximum number of pages the machine can produce within a one (1) month period (based on LTR paper). It is recommended not to use the device to produce the maximum number of pages, or a greater volume, on a consistent monthly basis.

Table 3 — Maximum Monthly Print Volume

Model	Optimum Performance Range	Maximum Monthly Print Volume
imageCLASS MF236n	500 to 2,000 prints	Up to 15,000 prints
imageCLASS MF232w

Service Authorization

To obtain and maintain authorization to provide warranty and post-warranty service, an ASF (Authorized Service Facility) must have at least two employees certified to service the imageCLASS MF236n and imageCLASS MF232w.

Educational Training

Training Program Overview

To be certified to service the imageCLASS MF200 Series, a Service Technician must download and take the imageCLASS MF4570dw * MF4570dn * MF4450 * D550 CBT (Computer Based Training) course. The imageCLASS MF4570dw * MF4570dn * MF4450 * D550 CBT is available for download via the TRAINING section of the Authorized Service FacilitySupport CenterWeb site. The CBT course provides the technician with the knowledge required for servicing and maintaining the imageCLASS MF200 Series.

Certification

It is recommended that a technician successfully complete the imageCLASS MF4570dw * MF4570dn * MF4450 * D550 online CBT course to receive certification to service the imageCLASS MF200 Series.

Who Should Complete

Any technician responsible for serving or supporting the imageCLASS MF200 Series machines must successfully complete the online CBT course.

Prerequisites

There are no prerequisites for this training course.
It is highly recommended that the service technician have:

• Prior experience with Canon imageCLASS MF devices
• Experience with taking CBT courses
• Familiarity with common hand tools to disassemble and service Canon devices

Course Format

The CBT provides essential servicing information for the device, and familiarizes the service technician with important areas of the service manual and user's guide.
Learning resources provided as downloads from within this training course include:

• Service Manual in PDF
• e-Manual User's Guide in HTML format

This online course is self-paced, and can take approximately 2 hours or longer. It is important that a quiet, non-distracting learning area be set up by the student beforehand to effectively take this training.

Course Equipment

• Windows-based browser with access to the TRAINING section of theAuthorized Service Facility Support CenterWeb site
• Flash-enabled Web browser (preferably Microsoft Internet Explorer)
• Sufficient storage space to download and use the learning resources

NOTE:
Windows Internet Explorer is necessary to download the documents supplied with this course. In Internet Explorer 8, the file download option is disabled by default. To enable file downloading in Internet Explorer 8, follow these steps:

1. Open Internet Explorer, and select the [Tools] menu.
2. Select [Internet Options].
3. Select the [Security] tab.
4. Select [Custom level].
5. Scroll down the Security Settings list until the [Downloads] section is displayed, then and select the [Enable] radio button under <Automatic prompting for file downloads> and under <File download>.
6. Click [OK] until all dialog boxes are closed.
7. Close and re-open Internet Explorer.
8. Download the learning resources for the course.
   The student should now be able to download the learning resources contained within the course.

Servicing Notes

Power and Plug Requirements

The imageCLASS MF236n/MF232w devices require a NEMA 5-15 receptacle for proper operation. Before installation, confirm that a proper NEMA receptacle is available for this device. It is not necessary to have a dedicated line.

Table 4 — Power and Plug Requirements

Installation Space Requirements

The approximate installation space requirements for the imageCLASS MF236n and MF232w are shown below. Always ensure that there is enough space for the service and operation of the device.
Keep the back and sides of the machine at least 4" (100 mm) away from a wall for proper servicing of the equipment.

Table 5 — imageCLASS MF236n Installation Space Requirements

imageCLASS MF236n

Width and Depth Requirements

Height Requirements

Table 6 — imageCLASS MF232w Installation Space Requirements

imageCLASS MF232w

Width and Depth Requirements

Height Requirements

Estimated Installation Time

The estimated length of time needed to unpack and install the machine is approximately 5.2 minutes^[3]. This is based on one (1) experienced technician or end-user.

Notes on the Wireless LAN

• The imageCLASS MF232w machine is designed for indoor use, and must be kept at a close distance (approximately 16.4' (5 m)) from an access point.
• It is recommended to check if masking is found. Communications between walls and floors can deteriorate; therefore, arrange for the proper installation of the machine to reduce any deterioration in communications.
• Radio wave interference may occur if radio wave equipment, such as a microwave is near the machine, and it is in the same frequency band as the radio wave used by the wireless LAN. Keep the machine away from radio wave sources as much as possible.

Firmware Upgrade

The imageCLASS MF236n and imageCLASS MF232w support two methods to upgrade the firmware.

1. Upgrading with the UST
   Firmware is available for download on the Canon USA public Web site (http://www.usa.canon.com/support). When servicing the machine, make sure to go to the Canon USA public Web site, and download the most recent firmware.
   Note:
   • A computer and the most recent UST (User Support Tool) file are required to install upgraded firmware.
   • The UST and firmware are included in the firmware package download from the Canon USA public Web site.
2. Upgrading via the Internet
   The imageCLASS MF236n and imageCLASS MF232w firmware can be upgraded without the use of an external PC.

   • To upgrade the firmware via Internet, the Serial Number of the machine must be written on the Main Controller PCB, and the BODY number must be registered in the Service Mode.
   • The machine must also be connected to a network with Internet access.
     After the machine's firmware is updated, the machine restarts and installs the update. For more information on updating firmware without a PC, see the imageCLASS MF230 Series Service Manual.

Service Support Tools

The only tools required for servicing the imageCLASS MF236n/MF232w are part of the technician's standard tool set. No special tools are required.
The oil in the table below should also be carried to ensure the imageCLASS MF236n and MF232w are serviced properly. For more information on the oil below, see the imageCLASS MF 230 Series Service Manual.

Table 7 — Oil

Type	Part Number2	Usage/Remarks
Ethyl Alcohol	-	Cleaning of metal parts, grease, and toner Procure locally Keep away from fire
Lubricant	HY9-0007	Apply to the gears, shafts, and shaft supports. Molykote EM-50L (Dow Corning Corporation)

2 Item numbers and part numbers are subject to change without notice.

Cleaning

The imageCLASS MF236n and MF232w do not have parts which require cleaning during a service visit. If the platen glass becomes dirty during servicing, clean the glass with a dry, lint-free paper.

Periodic Replacement Parts

The imageCLASS MF236n and MF232w do not have parts that require periodic replacement.

Consumables

Consumables are all products and materials that are consumed with regular use and cannot be reused. Such consumables include, but are not limited to, paper and toner.
A number of factors are considered to determine the approximate yield expectancy of a consumable item, including paper size and the amount of coverage per page.
Note: All consumables shown in the table below are estimates for reference purposes only, and are subject to change without notice.

Table 8 — Main Unit Consumables List

Description	Part Number2	Quantity	Estimated Life (prints)[4]	Remarks
Cartridge 137	9435B001AA	1	2,400	Based on the ISO/IEC standard

2 Item numbers and part numbers are subject to change without notice.

Consumable Parts

Consumable parts are parts that have a limited life, which will be reached during a customer's specific machine operation, and should then be replaced as needed by a service technician.
The imageCLASS MF236n and imageCLASS MF232w do not have consumable parts that require replacement.

Technical Support

Technical Support for the End-User

The first technical support call from the end-user is handled by CITS (Canon Information Technology Services). The CITS help desk, at 1-800-OK-CANON (652-2666), is available Monday through Friday, 8 A.M. to 8 P.M. EST (Eastern Standard Time), except for holidays. The CITS help desk provides the following support:

• Answers product related questions.
• Assists the end-user with pre- and post-sales inquiries.
• Attempts to resolve hardware, software, and operational problems.
• Assists the customer with installation and setup.
• If telephone-based troubleshooting fails to resolve a problem, CITS either provides the end-user with the contact information of the nearest ASF for Carry-In Service, or processes an Exchange Service.

Note:

• The CITS help desk times may change without notice.
• The CITS help desk only diagnoses problems with your machine.

1. Carry-In Service
   Carry-In Service provides the end-user with a local ASF where they can carry in the defective product and have it repaired.
   CITS will help the end-user over the telephone to diagnose any problems with the machine first. If telephone-based troubleshooting fails to resolve the problem, the CITS help desk will provide the end-user with the contact information of the nearest ASF location that can provide Carry-In Service.
   The end-user needs to contact the ASF to schedule a repair.
2. Exchange Service
   The Exchange Service option enables Canon USA to ship the end-user a replacement product for the defective product.
   CITS will help the end-user over the telephone to diagnose any problems with the machine first. If telephone-based troubleshooting fails to resolve the problem, and Exchange Service is requested, the CITS help desk issues the end-user a Return Authorization Number.
   The end-user must provide the CITS help desk with the following information:
   • Product serial number
   • A ship to location for the replacement product Canon USA will ship a replacement product to the end-user by the next business day (two (2) business days Exchange Service for Alaska and Hawaii), provided the request is made prior to 4 P.M. EST, Monday through Friday, except for holidays.
     The replacement product includes a prepaid shipping label for the return shipment of the defective product back to Canon USA. The end-user must ship the defective product within ten (10) days of receipt of the replacement product.
3. Internet Support
   End-user support is also available via the Canon USA consumer Web site: http://www.usa.canon.com/support. The end-user can access print drivers, software downloads, FAQs (Frequently Asked Questions), register their product, review promotions, and research products. Information for technical support by telephone, e-mail, and ASF locations is also available on the consumer Web site.
   Figure 1 — Canon USA's Consumer Web Site


eCarePAK Extended Service Plan

The eCarePAK Extended Service Plan is purchased in bulk by a distributor or dealer, who then sells the eCarePAK to their customers. Extended coverage plans are available for up to 4 years.
The eCarePAK Extended Service Plan enables the customer to extend the service coverage on their Canon product beyond the one (1) year limited warranty. It provides the customer toll-free telephone support, and if needed, Exchange Service for their Canon product for the duration of the extended coverage. A customer can purchase a 1 to 4 year extended coverage plan for a total of 5 years of coverage.
Note:

• eCarePAK coverage cannot be extended beyond the original term purchased.
• The eCarePAK Extended Service Plan must be purchased during the product warranty period, and goes into effect on the day the original warranty expires.
• The eCarePAK Extended Service Plan does not include coverage for any consumables, such as paper.
• Reimbursement to the ASF during the eCarePAK Extended Service Plan is through the ECP (Electronic Claims Processing) system. See"Warranty Compensation Procedures,".

1. Purchasing an eCarePAK Extended Service Plan
   A customer (end-user) can purchase an eCarePAK Extended Service Plan from the dealer or reseller who sold them the machine. Only an authorized dealer or distributor can purchase an eCarePAK from Canon.
   eCarePAK orders must contain the following information:
   • Reseller's e-mail address, name, and address
   • Customer's e-mail address, name, and address
   • The device's model number, serial number, and purchase date
2. Registering an eCarePAK Extended Service Plan
   Canon USA registers each eCarePAK, and provides the customer with the terms and conditions that pertain to their purchased eCarePAK Extended Service Plan via U.S. Mail.
   Note: Ask any questions on eCarePAKs via e-mail message to ecarepak_support@cusa.canon.com.

Authorized Service Facility Program

The Canon USA Authorized Service Facility program enables ASFs to provide warranty and post-warranty service for the imageCLASS MF236n/MF232w.
ASF responsibilities:
To authorize a service facility as an ASF, the facility must meet and maintain eligibility requirements under the ASF program. This includes, but is not limited to the following:

• Trained service technicians on the Canon imageCLASS MF236n and MF232w.
• The ASF must be able to invoice for repair service through the Internet.
• ASFs must maintain accurate service records. All repairs must be properly recorded, and the records must be made available to Canon USA when requested. The ASF must verify the product purchase date, product model, serial number, and log all repairs with any parts used.
• The ASF must inform Canon USA of any changes in company status, including a change of address and changes in service management.
• The ASF must have an established line of credit with Canon USA to facilitate the purchase of spare parts, training programs, and other service materials, as required, to support the customer base properly.
• ASFs are expected to maintain a spare parts inventory, sufficient to support the expected repair volume. ASFs must useGenuine Canon USA parts in all repairs.

ASF Technical Support Offerings

ASF Support

ASFs can contact the Canon Help Desk at CITS Monday through Friday, 8 A.M. to 8 P.M. EST, except for holidays at 1-866-702-2666. Before contacting CITS, a technician must exhaust all other resources including the service manual, and the e-Support CenterWeb site for technical publications, and their internal service support infrastructure.
Note: The ASF support times may change without notice.

Internet Support

The Authorized Service Facility Support CenterWeb site, available from Canon USA's Engineering Services and Solutions Division, provides high-quality support via the Internet.
Canon USA's Authorized Service Facility Support CenterWeb site is designed to give ASFs access to the following technical support information:

• Notification of new product releases, patches, and technical publications.
• Read and download online documentation.
• Warranty Claims Processing: ECP (Electronic Claims Processing) System.
• Technical documentation (Service Manuals and Parts Catalogs) and training information.

For information on how to access the WARRANTY section of the Authorized Service Facility Support Center, or how to file a claim, see "Warranty Compensation Procedures,".
To access online support for ASFs, go to www.support.cusa.canon.com, locate the "Authorized Service Facility Login," and enter the ASF Support Code: imageCLASS2016. This serves as your permanent access ID to the Authorized Service Facility Support Center's Web site.

Figure 2 — Authorized Service Facility Login

Figure 3 — Authorized Service Facility Support Center

Call Escalation Procedure

Canon USA provides a time-sensitive call escalation process for all imageCLASS MF236n and imageCLASS MF232w ASFs. The CITS help desk is the single point of entry for this process. Once a call is placed to the CITS help desk and information is logged into the call management system, a case number is assigned to the call. Every effort is made to resolve the problem during the call. For problems that cannot be resolved during the initial call and require escalation, follow the process below.

Figure 4 — Call Escalation Procedure Flow Chart

Parts Support

Parts and Service Material Orders

1. Canon Network Access
   If you have direct access to CNA, log on to the CNA Web site via http://www.cna.cusa.canon.com. However, you can also access CNA through Canon USA's ISG Central Web site, and access the CNA section via the "Canon Network Access (CNA)" tab.
   All ASFs are required to submit their parts purchase orders electronically via CNA. No manual orders are accepted. The ASF is responsible for all shipping costs related to their order.
   Figure 13 — CNA Log In

   Figure 14 — ISG Central – CNA Tab

   • Order parts
   • Download parts information and the parts price list
   • View the parts discontinuation schedule information
   • Inquire about orders and invoices
   • Log on to the ECP system
     The CNA Web site is accessible 24 hours a day, and 7 days a week.
2. Parts Order Desk
   ASFs without access to the CNA Web site must contact the Canon Parts Order Desk at 1-866-481-2569. The ASF is responsible for all shipping costs related to their order.

Parts Order Entry

1. Regular Orders
   All parts for regular orders are shipped via ground once the parts orders are printed by Canon USA, unless an alternate shipping method is requested by the ASF for rush orders.
   Note: Shipments may be delayed for credit review.
2. Rush Orders
   To ensure same day shipment of rush orders, submit all one (1) and two (2) day emergency purchase orders no later than 4 P.M. EST.
   All purchase orders placed through CNA are confirmed via an e-mail message.

Parts Information/Parts Price List Download

All parts information for active parts are made available on the CNA Web site under the "Parts Information" link. Downloadable files by model and product are also available under the "Parts Information" link.
Note: ASFs without access to the CNA Web site must contact the Canon Parts Order Desk at 1-866-481-2569.

Parts Discontinuation Schedule Information

Parts discontinuation schedule information is available on the CNA Web site under the "Parts/Supply Discontinuation" link. Information is available regarding active machines; machines scheduled to be discontinued within the year, and discontinued machines.
Note: ASFs without access to the CNA Web site must contact the Canon Parts Order Desk at 1-866-481-2569.

Order/Invoice Inquiry

Inquiries concerning purchase orders and invoices can be made on the CNA Web site. You can search using the purchase order, invoice number, or conduct a search for the most recent date required. For additional tracking information, purchase orders that have been shipped contain a link to the UPS (United Parcel Service) Web site. For questions concerning parts, please send an e-mail message to canonparts@cusa.canon.com.
Note: New accounts are not available on the CNA Web site. ASFs without access to the CNA Web site should contact the Canon Parts Order Desk at 1866-481-2569 for order and invoice inquiries.
Figure 15 — CNA – Order and Invoice Inquiry

Specifications

Note: All specifications are for reference purposes only, and are subject to change without notice.

Table 10 — imageCLASS MF236n/MF232w Main Unit, Copy, and Print Specifications

Item			Description
			imageCLASS MF236n	imageCLASS MF232w
Printer Type			Desktop, Black-and-White Laser
Print Speed1			Up to 24 ppm (Simplex LTR)
Copy Speed			Up to 24 ppm (Simplex, LTR) using ADF	No ADF
First Print Time			Approximately 6 seconds (LTR)
First Copy Time			Approximately 9 seconds (LTR)
Warm Up Time (at a room temp. of 68°F (20°C))[5]			Approximately 12 seconds
Printer Language			UFR II LT (host-based)
Print Resolution			Up to 600 dpi x 600 dpi
Copy Resolution			Up to 600 dpi x 600 dpi
Copy Ratio			100% Direct, 400% Max, 200%, 129% STMT->LTR, 78% LGL->LTR, 64% LTR->STMT, 50%, 25% Min
Maximum Print Size			Up to 8 1/2" x 14" (Legal)
Print Modes			Toner Saver, Page Composer, and Watermark
Copy Modes			Memory Sort, 2 on 1, 4 on 1, and ID Card Copy
Print and Copy Memory			256 MB (shared)
Mobile Print			-	WiFi Direct Print
Maximum Monthly Print Volume			Up to 15,000 pages
Environmental Conditions			Temperature: 50°F to 86°F (10°C to 30°C) Humidity: 20% to 80% RH (Relative Humidity) (No Condensation)
Noise	Standby		Inaudible[6]
	Operation	Sound Power	Approximately 6.5 B (SADF) Approximately 6.6 B (Platen)
		Sound Pressure	Approximately 51 dB

Item		Description
		imageCLASS MF236n	imageCLASS MF232w
Power Requirements		120V – 127V AC, 60 Hz, 15 A
Plug		NEMA 5-15
Power Consumption	Maximum	Approximately 1,050 W
	Standby	Approximately 5.1 W	Approximately 4 W
	During Operation	Approximately 420 W
	Sleep Mode	USB Connection: Approximately 1.1 W Wired LAN Connection: Approximately 1.3 W Wireless LAN Connection: Approximately 1.8 W (MF232w)
	Power Is OFF[7]	Approximately 0.5 W or less
Dimensions (H x W x D)		Approximately 14.2" x 15.4" x 14.6" (360 mm x 390 mm x 371 mm)	Approximately 12.3" x 15.4" x 14.6" (312 mm x 390 mm x 371 mm)
Weight		imageCLASS MF236n: Without Cartridge: Approximately 25.4 lb (11.5 kg) imageCLASS MF232w: Without Cartridge: Approximately 22.5 lb (10.2 kg)

1 The print speed is based on internal testing, and may vary, depending on the number of prints, paper size, paper type, and paper orientation selected.

Table 11 — Scanner Specifications

Item		Specifications
Type		Color Scanner
Maximum Scan Size	Platen Glass	Up to 8 1/2" x 11 3/4"
	Feeder	Up to 8 1/2" x 14"
Scan Resolution	Platen Glass	Up to 600 dpi x 600 dpi
	Feeder[8]	Up to 300 dpi x 300 dpi
	Interpolated	Up to 9,600 dpi x 9,600 dpi
Scan Speed[9][10] (LTR, 300 x 300 dpi)	Color	Approximately 4 seconds per sheet
	B&W	Approximately 3 seconds per sheet
Driver		TWAIN WIA 2.0 (Windows Vista, 7, 8 or later, Server 2003/2003 R2/2008/2008 R2/2012/201 2R2) ICA (Mac OS X 10.5.8 or later)

Table 12 — Paper Handling Specifications

Item		Description
Paper Source/Capacity		Paper Cassette: 250 sheet capacity10 Multi-Purpose Tray: 1 sheet capacity10
ADF Capacity (imageCLASS MF236n only)		35 sheet capacity
Paper Output11	Output Tray	Approximately 100 sheets (face-down)10
Paper Weight		Approximately 16 lb bond to 60 lb cover (60 to 163 g/m2)
Media Sizes	Paper Cassette	Letter, Legal, Executive, Statement, Officio, Gov't Letter, Gov't Legal, Foolscap, Envelopes: COM10, C5, DL, and Custom: Width: 3" to 8 1/2"; Length: 8 1/4" to 14"
	Multi-Purpose Tray	Letter, Legal, Executive, Statement, Officio, Gov't Letter, Gov't Legal, Foolscap, 3" x 5", Envelopes: COM10, Monarch, C5, DL, and Custom: Width: 3" to 8 1/2"; Length: 5" to 14"
Media Types12		Plain Paper, Heavy Paper, Recycled Paper, Color Paper, Bond Paper, Labels, and Envelopes
Envelope Capacity	Paper Cassette	Up to 20 envelopes
	Multi-Purpose Tray	1 envelope
Envelope Types		COM10, Monarch (tray only), C5, DL

Table 13 — Connectivity and Software Specifications

Item	Specifications
Standard Interfaces	USB 2.0 (A USB cable is not included.)[11] 10Base-T/100Base-TX Ethernet (Network)
Network Functions	Print, Scan, Copy, PC Fax (imageCLASS MF263n only)
Embedded Web Server	Yes (Remote UI)
Web Browser Support for Remote UI	Internet Explorer 7.0 or higher on Windows Vista/7/8/higher, Safari 3.2.1 or higher on Mac OS X 10.5.8/higher (except for Classic environment)
Bundled Software	Canon Printer Driver, e-Manual, Wireless Setup Assistant, MF Scan Utility, Address Book Tool, imageWARE Enterprise Management Console Drivers are available for download from http://www.usa.canon.com/support
Supported Operating Systems	Windows 10, 8.1, 8, 7, Windows Vista Windows Server 2012 R2/2012/2008 R2/2008/2003/2003 R2 Mac OS X V10.5.8 and higher

Table 14 — Wireless Network Specifications (imageCLASS MF232w only)

Item	Specifications
Standard Interfaces	IEEE 802.11b/g/n (Wireless)[12]
Wi-Fi Connection Method	WPS (Wi-Fi Protected Setup), Manual Setup
Wi-Fi Communication Mode	Infrastructure Mode/Access Point Mode
Wi-Fi Security	Infrastructure Mode WEP, WPA-PSK (TKIP/AES-CCMP), WPA2-PSK (TKIP/AESCCMP) Access Point Mode WPA2-PSK (AES-CCMP)
Wi-Fi Frequency Range	2,412 to 2,462 MHz

Table 15 — Fax Specifications (imageCLASS MF236n only)

Item	Specifications
Line Used	PSTN (Public Switched Telephone Network)[13]
Communication Mode	Super G3, G3
Modem Speed	Super G3: Up to 33.6 Kbps G3: Up to 14.4 Kbps Automatic Fallback
Compression Method	MH, MR, MMR
Transmission Speed	Approximately 3.0 seconds per page[14] (ECM-MMR, transmitting from memory at 33.6 Kbps)
Fax Resolution	Up to 200 x 400 dpi (Ultra Fine)
Receiving	Automatic Reception, Remote Reception by Telephone (Default ID: 25)
Memory Capacity (Sending and Receiving)	Up to 256 pages16 (Total pages of transmission/reception) Maximum number of fax jobs that can be sent from memory: 10 Maximum number of fax jobs that can be received into memory: 90
Dialing	One-touch keys (4 destinations), Coded dialing (100 destinations), Group dialing (103 groups), Address Book dialing, Regular dialing (with numeric keys), Automatic redialing, Manual redialing, Sequential broadcast (114 destinations)
Reports	Send Results Report, Transmission Management Report[15] and RX Results Report

1. The print speed is based on internal testing, and may vary, depending on the number of prints, paper size, paper type, and paper orientation selected.
2. Item numbers and part numbers are subject to change without notice.
3. This does not include the up to 2.0 minutes to install the printer driver.
4. The value is based on LTR paper with the factory default print density setting.
5. Warm-up time may vary, depending on the environment and conditions under which the machine is used.
6. Indicates that the sound pressure level of each bystander position is below the ISO 7779 absolute criteria for the background noise level.
7. Even if the machine's power is turned OFF, a slight amount of power is still consumed. To stop power consumption completely, disconnect the power plug from the AC power outlet.
8. imageCLASS MF236n only.
9. The scan speed is based on scanning from the platen glass. The communication time is not included. 10 Based on 20 lb bond (80 g/m²) paper.
10. May vary, depending on the installation environment and paper type used. 12 Chlorine-free paper can be used.
11. USB 2.0 requires Windows 10, 8.1, 8, 7, or Vista.
12. Wireless performance may vary, depending on terrain and distance between the printer and wireless network clients.
13. The Public Switched Telephone Network currently supports fax modem speeds up to 28.8 Kbps, depending on telephone line conditions. Fax machines that can send and receive documents must conform to ITU-T v.34 guidelines.
14. Based on the ITU-T (ITU Telecommunication Standardization Sector) Standard Chart No. 1, MMR standard mode.
15. Output automatically after 40 transmissions.
