motorola edge 50 Ultra Manual

Let's get started

Before using your phone, please read the legal, safety and regulatory information provided with your product.

Screen protectors may reduce your phone's touchscreen sensitivity. Do not use screen protectors thicker than 0.5mm.

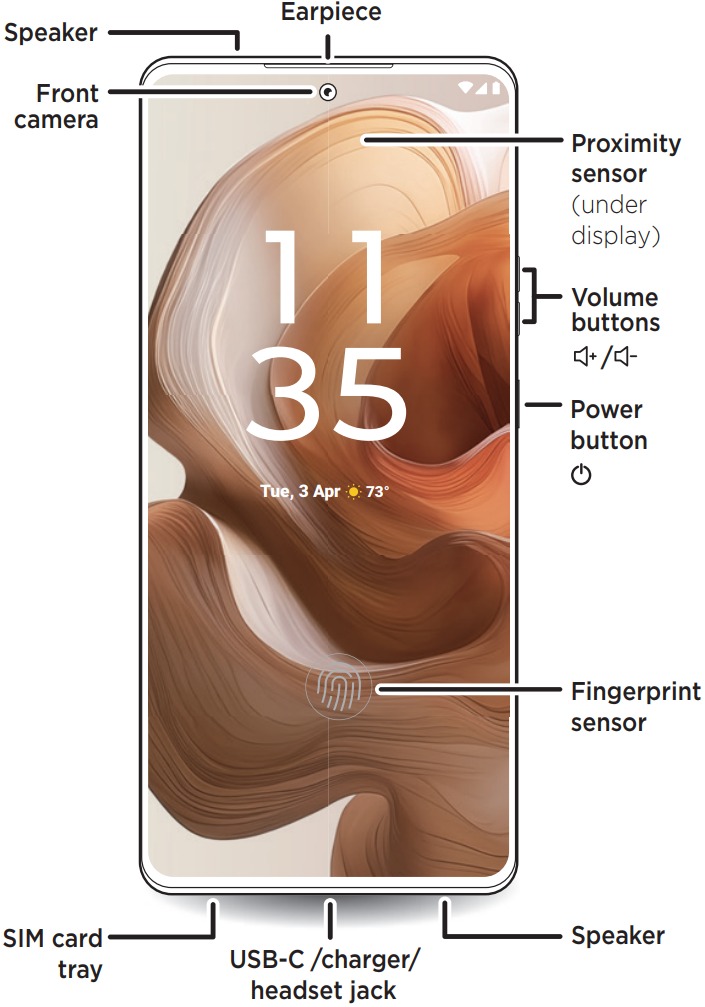

Product Overview - Part 1

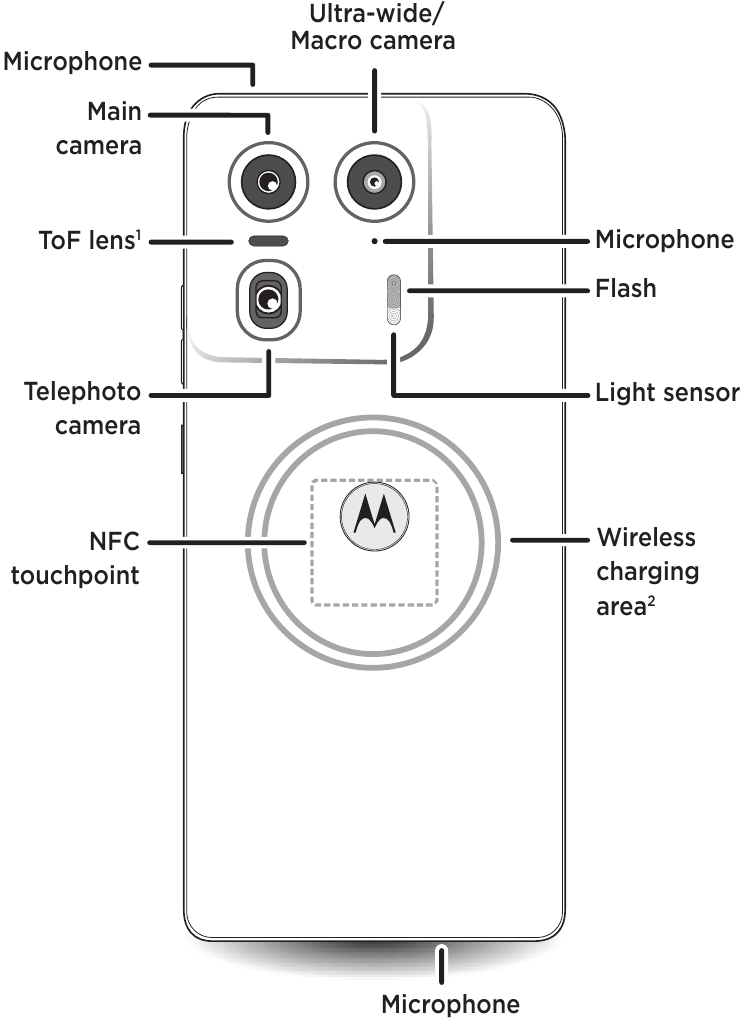

Product Overview - Part 2

¹Time of flight lens.
²Wireless charging: charge your phone using a Qi-certified wireless charger (sold separately). Your phone can wirelessly charge another Qi-compatible device. Swipe up from the Home screen and tap Settings > Battery > Power sharing, then tap the switch to turn it on.

Note: to use a headset, you'll need one with a USB-C connector. If you're using a 3.5mm headset, you'll need an adapter to connect a 3.5mm connector to USB-C. Headset and adapter may be sold separately.

Water, splash and dust resistance. Water, splash and dust resistance were tested to IP68 standards under controlled laboratory conditions. Withstands immersion in up to 1.5 metres of fresh water for up to 30 minutes. Resistance will decrease as a result of normal wear. Not designed to work while submerged underwater. Do not expose to pressurised water, or liquids other than fresh water. Do not attempt to charge a wet phone. Not waterproof. For more about your phone's water-repellent design and care, swipe up and tap Settings > Help.

Put in the card and power on

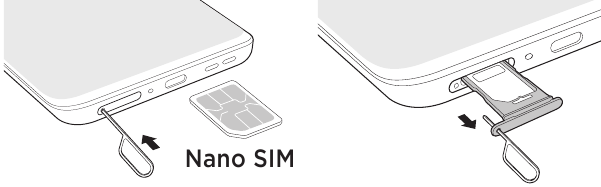

Insert the SIM tool into the tray hole to pop out the tray.
Make sure that you use the correct size of SIM card and don't cut the SIM card.
Insert the SIM card with the gold contacts up, then gently push the tray into the slot.

eSIM option: your phone may have an eSIM (embedded SIM card) in addition to the physical SIM card. Contact your service provider for details if you want to activate and use it.
Connect with 5G: 5G service plan and 5G network coverage required; available only in selected areas; device not compatible with all 5G networks. Contact your service provider for details.

Press and hold the power button to turn on your phone, then follow the prompts to get started.
To turn off your phone, press the power and volume up buttons at the same time.

Scan the QR code above with your Camera app for how-to videos.

Help and more

Get answers, updates and info:

Help is here: from the Home screen, swipe up and tap Settings > Help to learn how to use your phone and get support.
Get more: get software, user guides and more at www.motorola.com/mymotoedge.
Get apps: tap Play Store to browse and download apps.

Warning about high volume usage.
To prevent possible hearing damage, do not listen at high volume levels for long periods. When your headset volume reaches the high volume threshold, a warning will be shown. Tap OK to dismiss it, or wait one to five seconds, then press the volume up button to dismiss the alert and enable the volume to continue to be adjusted.

Extreme heat or cold. Don't use your phone in temperatures below -20°C or above 45°C. Don't store/transport your phone in temperatures below -20°C or above 60°C.

Supported frequencies and power (Model XT2401-1). This phone is capable of operation on the following frequencies, subject to location and network availability.

Operating mode	Frequency range MHz/Band	Maximum nominal transmit power dBm
Bluetooth	2400 – 2483.5	20 dBm EIRP
Wi-Fi	2400 – 2483.5	20 dBm EIRP
Wi-Fi	5150 – 5250	23 dBm EIRP
Wi-Fi	5250 – 5350/5470 – 5725	20 dBm EIRP
Wi-Fi	5725 – 5850	14 dBm EIRP
Wi-Fi	5945 – 6425	23 dBm EIRP
GNSS	1559 – 1610/1164 – 1215	N/A
NFC	13.56	-18.47 dBuA/m @ 10m
UWB	6489.5 and 7987.2	0 dBm
WPT	100 – 205 kHz	-2.08 dBuA/m @ 10m
GSM	2/3/5/8	33/30
UMTS	1/2/4/5/8	24
LTE	1/2/3/4/5/7/8/12/13/17/18/19/20/25/26/28/32/38/39/40/41*/42/43/66	23/(26*)
5G	n1/2/5/7/8/20/26/28/38/ 40/41/66/71/75/77/78	23/(26*)
