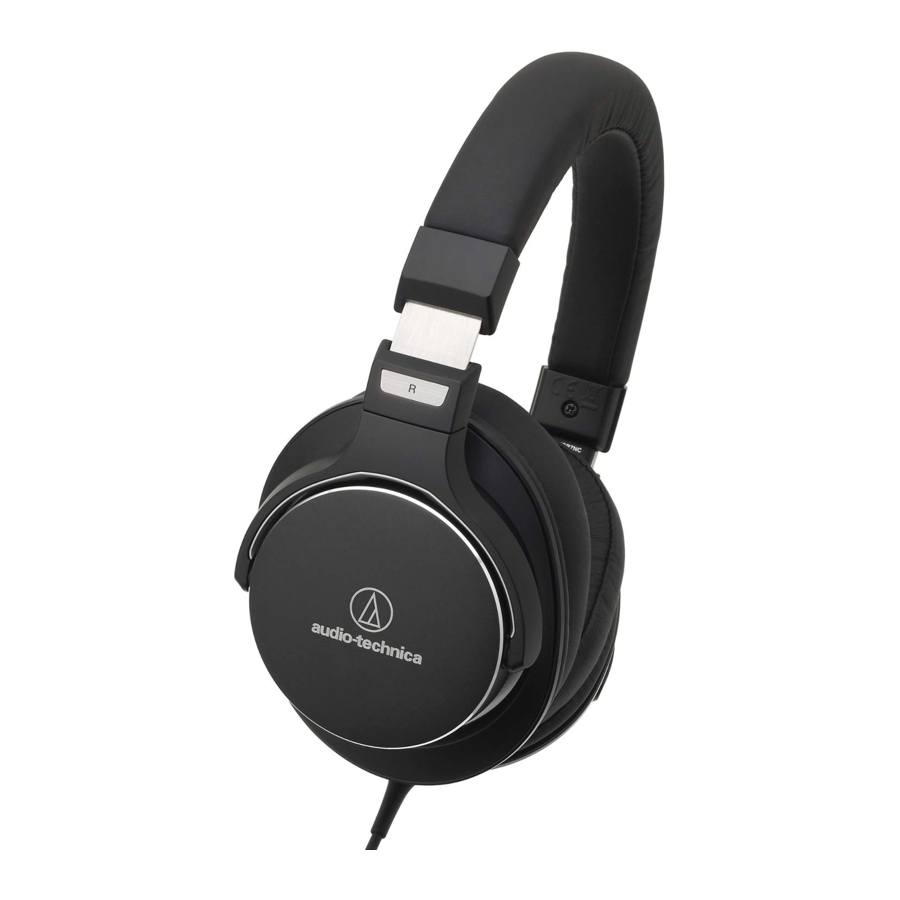

Audio Technica ATH-MSR7NC, ATHMSR7NCREFB Manual

Introduction

Thank you for purchasing the product.
Before using the product, read through this user manual to ensure that you will use the product correctly. Also, keep this manual handy for easy reference when needed.
The product uses proprietary active noise-cancelling technology to provide a comfortable listening environment in areas with high ambient noise. The product features a miniature microphone in each earpiece that pick up ambient noise (such as traffic, air-handling systems, etc.) and create a sound-cancelling signal to effectively block the noise.

• The noise-cancelling function of the product mainly operates to reduce noise at 300 Hz or lower, which means it has almost no effect on noise that is above this frequency (such as telephone ringtones and voices).
• The noise-cancelling function may have limited effect when used in quiet locations or when used to cancel certain types of noise.

Part names and functions

Included accessories

• Detachable 1.2 m (3.9') headphones cable with 3.5 mm (1/8") gold-plated stereo mini-plugs

• Detachable 1.2 m (3.9') headphones cable for smartphones with in-line controller/ microphone unit and 3.5 mm (1/8") goldplated stereo miniplugs

• Airplane adapter

• USB charging cable

• Pouch


* The jack on airplane equipment may be different than the standard 3.5 mm (1/8") input. Use included airplane adapter when necessary.

Using headphones

How to charge

• Fully charge the battery when using for the first time.
• It takes about 4 hours to charge the battery fully. (It varies depending on service conditions.)

1. Connect the included USB charging cable (the micro USB terminal side) to the headphones' battery jack.
   • The included USB charging cable is specifically designed to charge the product. Data cannot be transferred to and from computer.
2. Connect the included USB charging cable (the Type A side) to the computer and start charging.
3. During charging, the indicator turns on/flashes as follows:

   Indicator	Charging condition
   Lights in red	Charging
   Off	Complete
   Flashes in red	Error*

   • In case of charging error, disconnect the product from your device and contact your Audio-Technica dealer.

How to connect

1. Select the cable that you want to use, and connect the connector plug of the cable to the input jack of the headphones.
   • Before using the detachable cables, identify the "Connector plug" and the "Input plug".
2. Minimize the volume of each sound device, then connect the "Input plug" to the headphones terminal.
   • Use included airplane adapter to connect to typical airline audio systems.
3. Move the power/ANC switch on the product to the ON position, and fit the earpads over your ears with the side marked "L" over your left ear and "R" over your right ear, adjusting the headband length by sliding the adjustable slider as shown in the figure.
   * Place the product on your head with the opening part facing upward, so that the product can provide stable noise-cancelling performance.

   Make sure the indicator is on.

   The indicator lights in	Condition
   Blue	The power/ANC switch is on
   Red	Charging
   Purple	The power/ANC switch is on and charging

4. Turn on your audio device, and adjust volume as necessary.
   * Also read instruction manual of audio device.
5. After you have finished using your headphones, be certain to move the power/ANC switch to the OFF position, and detach the 1.2 m (3.9') headphones cable from the headphones and the audio device or smartphone.
   • For noise-cancelling without audio, there is no need to connect the headphones cable.
   • The product features the play-through function to operate as stereo headphones and play music from a portable device even if the product runs out of battery (play-through function).
   • Playback sound can be easily heard outside to ensure the quality performance of the product. On public transport systems or in other public places, keep the volume low so as not to disturb other people.

Using the headphones cable for smartphones

* Some smartphones do not support playback and pause functionality for music/movie files.
* Audio-Technica does not provide support for how to use smartphones.

Cleaning

Get into the habit of regularly cleaning your headphones to ensure that they will last for a long time. Do not use alcohol, paint thinners or other solvents for cleaning purposes.

• Wipe the main unit with a dry cloth to clean the headphones/remote control with microphone.
• Wipe your cables with a dry cloth after use if there is sweat or other dirt present. Using an unclean cable continuously will deteriorate and harden the cable, resulting in product malfunction.
• Wipe your plugs on cables with a dry cloth if dirty. Using the plug without cleaning it can cause sound skipping or distortion.
• To clean the earpads and headband, wipe with a dry cloth. Earpads and headband may fade if sweat or water dries on them. If the earpads and headband get wet, we recommend wiping them with a dry cloth and allowing them to dry in the shade.
• For long-time storage, keep the product in a well-ventilated place free from high temperatures and humidity.
• Earpads will deteriorate over time due to use and storage. Replace when necessary. For information about replacing earpads or other parts, or for information about other serviceable parts, contact your Audio-Technica dealer.

Troubleshooting

Specifications

* The above figures depend on operating conditions.
(For product improvement, the product is subject to modification without notice.)

Safety precaution

Read these cautions before using the product.
To ensure safety, observe all warnings and cautions while using the product.

• Follow applicable laws regarding mobile phone and headphone use if using the product while driving.
• Do not use the product in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, and construction sites).
• To prevent damage to your hearing, do not raise the volume too high. Listening to loud sound for an extended period may cause temporary or permanent hearing loss.
• Discontinue use if skin irritation results from direct contact with the product.
• Stop using the product immediately if you become unwell during use.
• Do not disassemble, modify or attempt to repair the product.
• Be careful to avoid pinching yourself between the housing and arm of the product.
• To ensure compatibility and correct usage, always consult the user manual of any device before connecting the product to it.
• Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using the product.
• On public transport systems or in other public places, keep the volume low so as not to disturb other people.
• Minimize the volume on your audio device before connecting the product in order to avoid hearing damage from sudden exposure to excessive volume.
• When using the product in a dry environment, you may feel a tingling sensation in your ears. This is caused by static electricity accumulated on your body, not by product malfunction.
• Do not subject the product to strong impact to avoid electric shock, malfunction or fire.
• Do not handle the product with wet hands to avoid electric shock or malfunction.
• Disconnect the product from the device if you encounter any malfunction like noise, smoke, smell, heat or damage with the product. In such case, contact your local Audio-Technica dealer.
• Do not put foreign matter such as combustible materials, metal, or liquid in the product.
• Do not cover the product with a cloth while using or charging.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place. Do not allow the product to get wet.
• When the product is used for a long time, the product may become discolored due to ultraviolet light (especially direct sunlight) or wear.
• The included cable may become caught or severed if the product is placed in a bag or pocket without adequate protection. Always store the product in the included pouch.
• Connect/disconnect the included cable by holding the plug. Pulling directly on the included cable can result in a broken wire and the risk of electric shock.
• Do not wind the included cable around your audio device. This may damage or sever the included cable.
• The product cannot be used with some portable audio players or other devices that are equipped with a digital amplifier.
• The included airplane adapter may not be compatible with certain types of aircraft devices.
• Do not use the product when the use of electronic devices is prohibited on the airplane, or when the use of personal headphones with the aircraft's audio service is prohibited.
• Be sure to purchase the appropriate conversion plug adaptor when connecting the product to a device equipped with something other than a 3.5 mm (1/8") stereo headphone jack.
• An extension cable for the product is sold separately.

Caution for rechargeable battery
The product is equipped with a rechargeable battery (lithium polymer battery).

• If battery fluid gets into eyes, do not rub them. Rinse thoroughly with clean water such as tap water and consult a doctor immediately.
• If battery fluid leaks, do not touch fluid with bare hands. If fluid remains inside the product, it may cause malfunction. If battery fluid leaks, contact your local Audio-Technica dealer.
  • If fluid gets in your mouth, gargle thoroughly with clean water such as tap water and consult a doctor immediately.
  • If your skin or clothing comes in contact with fluid, immediately wash the affected skin or clothing with water. If you experience skin irritation, consult a doctor.
• Never heat, disassemble or modify the battery, nor dispose of it in a fire.
• Do not attempt to pierce with a nail, hit with a hammer or step on the battery to avoid generation of heat, damage or ignition.
• Do not drop the product or subject it to strong impact to avoid leakage, generation of heat or explosion.
• Do not get the battery wet to avoid generation of heat, explosion or ignition.
• Do not use, leave or store the battery in the following places:
  • Area exposed to direct sunlight or high temperatures and humidity
  • Inside of a car under the blazing sun
  • Near heat sources such as heat registers
• Charge only with the included USB cable to avoid malfunction or fire.
• After using the product, be sure to switch it off. Leakage often occurs due to battery drain that results from a failure to switch off product.
• To protect the built-in rechargeable battery, charge it at least once every half year. If you leave it too long, you will have less rechargeable battery life or the battery may not recharge at all.
• Because this product's design is optimized to provide stable noise-cancelling performance, its structure does not allow for replacement of the built-in rechargeable battery after purchase. The battery may have reached the end of its service life if the usage time becomes shorter even though the battery is fully charged, or if charging is still not complete after more than 4 hours of continuous charging. In this case, contact your local Audio-Technica dealer.
