Audio Technica QuietPoint ATH-ANC27 - NC Headphones Manual

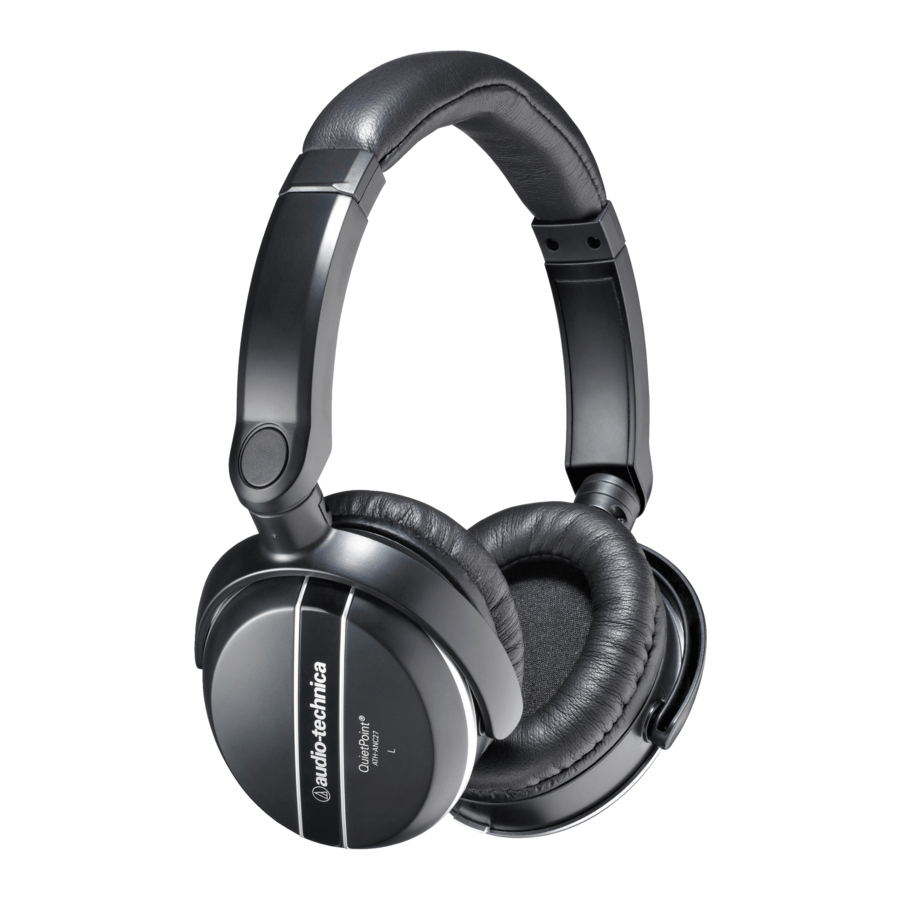

Audio-Technica's ATH-ANC27 QuietPoint^® headphones use active noise-cancelling technology to provide a comfortable listening environment in areas with high ambient noise. The headphones feature a miniature microphone in each earpiece that picks up ambient noise and creates a sound-cancelling signal to effectively block the noise.

• QuietPoint^® active noise cancelling headphones cut ambient noise by up to 85%
• Use for MP3, CD, DVD and in-flight entertainment systems; remove detachable cable for noise-cancelling function without audio input
• Audio functions (in passive mode) even without the battery
• Fully integrated electronics—no external modules needed
• Compact design folds flat for travel
• Includes a durable carrying case with attached pouch for accessories

Features and Included Accessories

1. Swiveling earcups
2. Adjustable headband
3. Power indicator (Lights red when power is ON)
4. Replaceable earpads
5. Power switch (Activates noise-cancelling function when power is ON. Headphones operate as stereo headphones in OFF position without active noise-cancelling function.)
6. Battery compartment cover
7. Detachable 1.2 m (3.9') cable with gold-plated 3.5 mm (¹/₈") stereo mini-plug and 2.5 mm stereo mini-plug with locking connector tab
8. Gold-plated 6.3 mm (¹/4") adapter
9. Gold-plated airline adapter
10. AAA battery
11. Durable carrying case with attached pouch

Installing the battery

The ATH-ANC27 requires one AAA battery for operation (included). Use only disposable AAA alkaline batteries. Do not use rechargeable batteries.

1. Move headphone power switch to the "OFF" position.
2. While the headphones are lying in a flat position, use the lift tab at the bottom of the right earcup to open the battery compartment.
3. Insert one AAA battery, observing correct polarity as marked.
4. Close the battery compartment cover.

Using your headphones

Listening to music/audio

1. Connect the 2.5 mm end of the included headphone cable to the input connector on the left earcup, making certain that the small locking connector tab on the 2.5 mm stereo plug aligns with the notch in the input connector. When the plug is firmly seated, rotate counterclockwise 90° to lock. Reverse this motion to unlock before removing the plug.
2. Connect the 3.5 mm (¹/₈") end of the headphone cable to the headphone jack of your audio device. Use the included airline adapter to connect to typical airline audio systems. Use included 6.3 mm (¹/4") stereo adapter to connect to home stereo equipped with 6.3 mm (¹/4") output jack.
3. Wear the left earpiece (marked L) on your left ear; and the right earpiece (marked R) on your right ear. Adjust the headband as needed for a comfortable fit.
4. To activate noise-cancelling function, move the power switch to the "ON" position; the power indicator should light (red). (If you do not wish to use the active noise- cancelling function, move power switch to the "OFF" position.)
5. Turn on your audio device. (Volume should be set at a low level at first; adjust as necessary on audio device.) To prevent damage to your eardrums, never use excessive volume levels.

Noise-cancelling only

To activate noise-cancelling function, move the power switch on your headphones to the "ON" position; power indicator should light (red). In this case, there is no need to connect the headphone cable; simply turn the headphones on and wear them.

After using

• When you have finished using your headphones, switch the power to the "OFF" position.
• Remove battery when you will not be using the headphones for an extended period.
• Store your headphones and accessories in the included carrying case.

Troubleshooting

Specifications*

Driver: 40 mm, active noise-cancelling; Frequency Response: 20 – 20,000 Hz; QuietPoint^® Active Noise Reduction: Up to 18 dB; Sensitivity: 106 dB; Impedance: 33 ohms; Maximum Input Power: 500 mW; Battery: AAA (alkaline); Battery Life: Up to 40 hours, typical (alkaline); Cable: Detachable 1.2 m (3.9') with 3.5 mm (¹/8") stereo mini-plug output connector; Connector Input: 2.5 mm; Weight: 192 g (6.8 oz), without cable and battery; Included Accessories: 6.3 mm (¹/4") stereo adapter; airline adapter; AAA battery; carrying case with attached accessory pouch

* Specifications measured with headphones in active mode. Specifications are subject to change without notice.
