Audio-Technica ATH-M50X - Professional Monitor Headphones Manual and Review Video

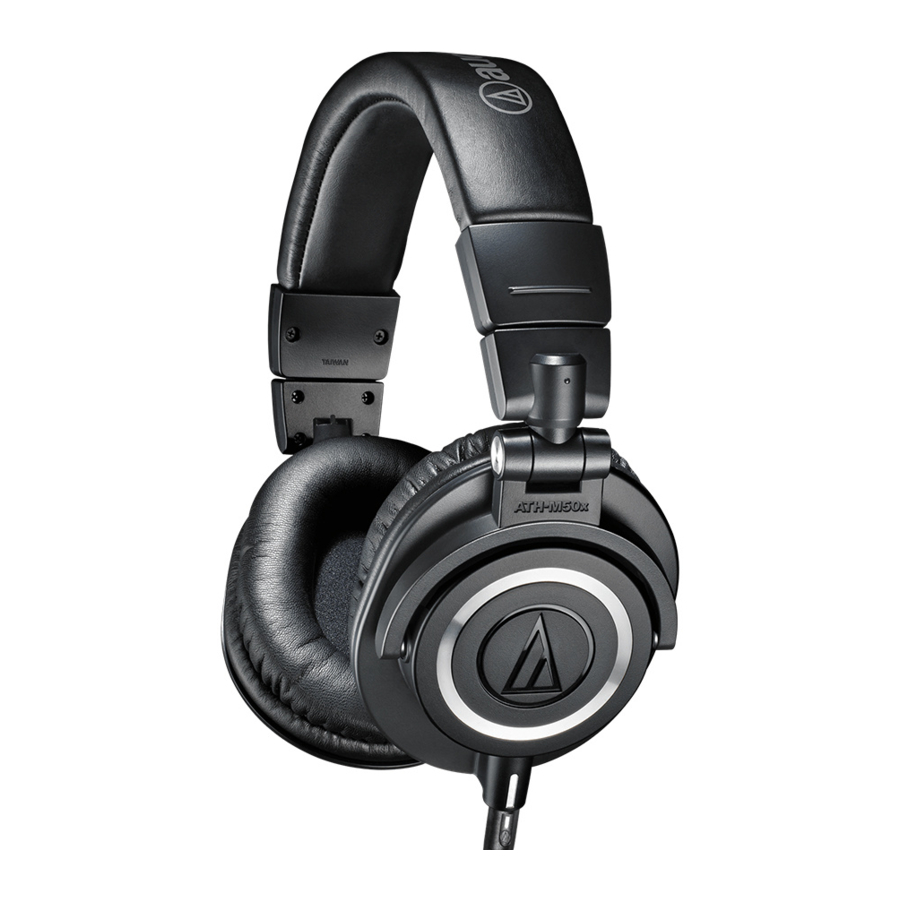

Name of each part and examples of connection

Confirm each part before using the product.

1. Headpad
2. Headband
3. Slider
4. Arm
5. Housing
6. Earpad
7. 3.0 m (9.8') detachable coiled cable
8. 1.2 m (3.9') detachable straight cable
9. 3.5 mm (1/8") gold-plated stereo mini-plug
10. 6.3 mm (1/4") stereo adapter
11. Case

1. Swivel housing
2. Folded position

* The product can be folded for storage and convenient portability.

Care

Get into the habit of regularly cleaning the product to ensure that it will last for a long time. Do not use alcohol, paint thinners or other solvents for cleaning purposes.

• Use a dry cloth to clean the headphones.
• After using the included cable, clean it with a dry cloth if sweat or dirt is present. Failure to clean the cable may cause it to deteriorate and harden over time, resulting in malfunction.
• Wipe the plugs on included cable with a dry cloth if dirty. Using the plug without cleaning it can cause sound skipping or distortion.
• To clean the earpads and headpad, wipe with a dry cloth. Earpads and headpad may fade if sweat or water dries on them. If the earpads and headpad get wet, we recommend wiping them with a dry cloth and allowing them to dry in the shade.
• For long-time storage, keep the product in a well-ventilated place without high temperatures and humidity.
• The earpads and headpad deteriorate over time due to use or storage. For information about replacing earpads and headpad or other parts, or for information about other serviceable parts, contact your local AudioTechnica dealer.

Specifications

• Type: Closed-back dynamic
• Driver: 45 mm
• Sensitivity: 99 dB/mW
• Frequency response: 15 to 28,000 Hz
• Maximum input power: 1,600 mW
• Impedance: 38 ohms
• Input jack: 3.5 mm stereo headphone jack
• Weight (without cable): Approx. 285 g (10.2 oz)
• Included accessories: Detachable coiled cable (3.0 m (9.8') / 3.5 mm (1/8") gold-plated stereo mini-plug), Detachable straight cable (1.2 m (3.9') / 3.5 mm (1/8") gold-plated stereo mini-plug), 6.3 mm (1/4") stereo adapter, Case
• Sold separately: Earpads, Straight cable, Coiled cable, 6.3 mm (1/4") stereo adapter

For product improvement, the product is subject to modification without notice.

Safety precautions

• Follow applicable laws regarding mobile phone and headphone use if using headphones while driving.
• Do not use the product in places where the inability to hear ambient sound presents a serious risk (such as at railroad crossings, train stations, and construction sites).
• To prevent damage to your hearing, do not raise the volume too high. Listening to loud sound for an extended period may cause temporary or permanent hearing loss.
• Discontinue use if skin irritation results from direct contact with the product.
• Do not disassemble, modify or attempt to repair the product to avoid electric shock, malfunction or fire.
• Be careful to avoid pinching yourself between the housing and the arm of product.

Notes on use

• To ensure compatibility and correct usage, always consult the user manual of any device before connecting the product to it.
• Audio-Technica will not be liable in any way for any loss of data in the unlikely event that such losses should occur while using the product.
• On public transport systems or in other public places, keep the volume low so as not to disturb other people.
• Minimize the volume on your audio device before connecting the product in order to avoid hearing damage from sudden exposure to excessive volume.
• When using the product in a dry environment, you may feel a tingling sensation in your ears. This is caused by static electricity accumulated on your body, not by product malfunction.
• Do not subject the product to strong impact to avoid electric shock, malfunction or fire.
• Do not store the product under direct sunlight, near heating devices or in a hot, humid or dusty place to avoid malfunction. And do not allow the product to get wet.
• When the product is used for a long time, the product may become discolored due to ultraviolet light (especially direct sunlight) or wear.
• The cable may become caught or severed if the product is placed in a bag without adequate protection. Always store the product in the included case/pouch.
• Connect/disconnect the included cable by holding the plug. Pulling directly on the cable can result in a broken wire and the risk of electric shock.
• Do not wind the included cable around your audio device. This may damage or sever the cable.

Audio-Technica Corporation
2-46-1 Nishi-naruse, Machida, Tokyo 194-8666, Japan
©2017 Audio-Technica Corporation

Global Support Contact: www.at-globalsupport.com
