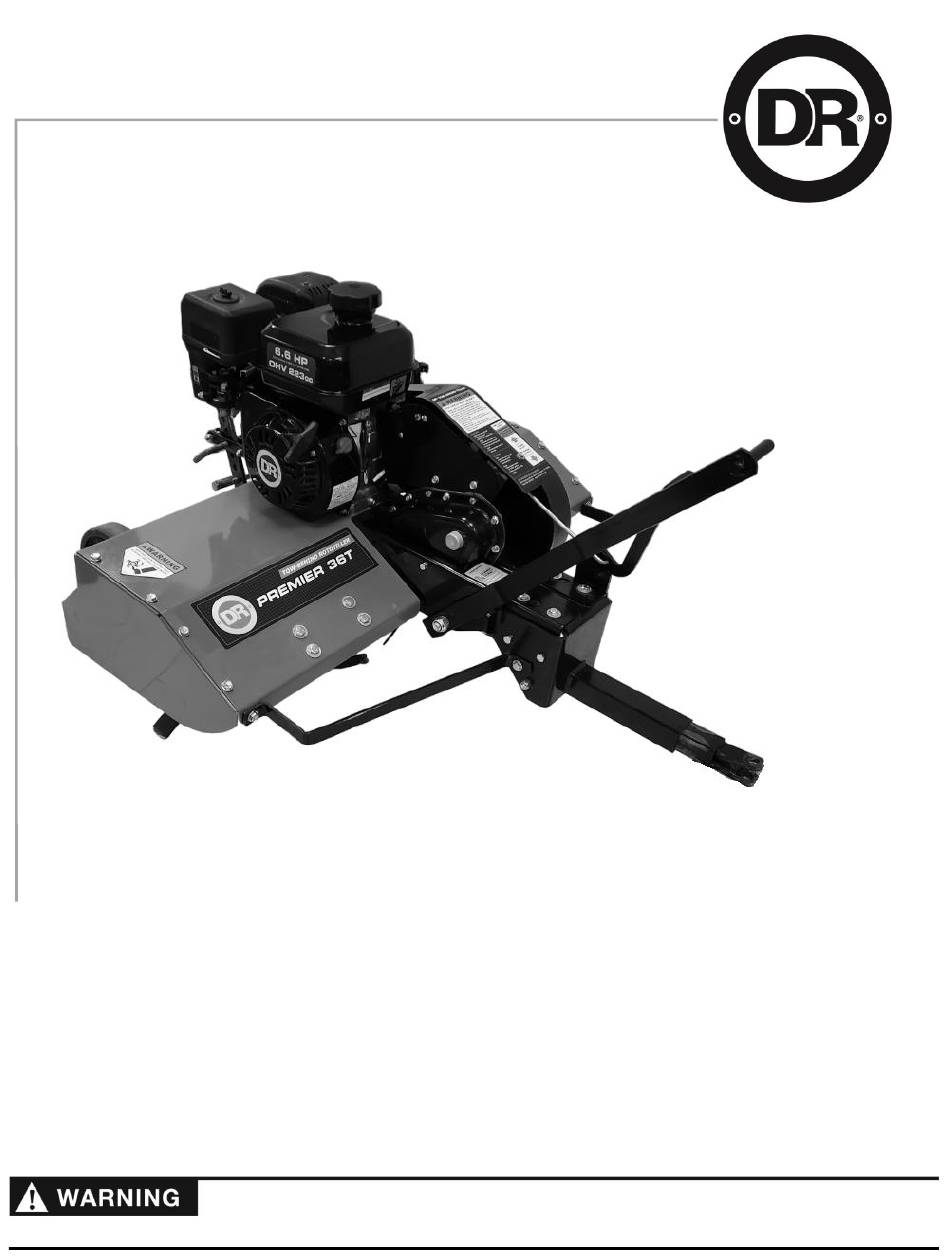

DR
®
TOW-BEHIND ROTOTILLER
SAFETY & OPERATING INSTRUCTIONS
Model:
PREMIER 36T
Serial No. ________________
Order No. ________________
Read and understand this manual and all instructions before operating this DR TOW-BEHIND ROTOTILLER.
DR
®
Power Equipment
Toll-free phone: 1-800-DR-OWNER (376-9637)
Website: www.DRPower.com
Advertisement
Table of Contents
Related Manuals for DR PREMIER 36T
Summary of Contents for DR PREMIER 36T
- Page 1 ® TOW-BEHIND ROTOTILLER SAFETY & OPERATING INSTRUCTIONS Model: PREMIER 36T ® Power Equipment Serial No. ________________ Toll-free phone: 1-800-DR-OWNER (376-9637) Order No. ________________ Website: www.DRPower.com Read and understand this manual and all instructions before operating this DR TOW-BEHIND ROTOTILLER.
-
Page 2: Table Of Contents
Additional Information and Potential Changes Label DR Power Equipment reserves the right to discontinue, change, and improve its products at any time without notice or obligation to the purchaser. The descriptions and specifications contained in this manual were in effect at Figure 1 printing. -
Page 3: Chapter 1: General Safety Rules
Labels Your DR TOW-BEHIND ROTOTILLER carries prominent labels as reminders for its proper and safe use. Shown below are copies of the Safety and Information Labels that appear on the equipment. Take a moment to study them and make a note of their location on your DR TOW-BEHIND ROTOTILLER as you assemble and before you operate the machine. -
Page 4: Slope Operation
Safety for Children Tragic accidents can occur if the operator is not alert to the presence of children. Children can be attracted to the DR TOW- BEHIND ROTOTILLER and the tilling activity. Never assume that children will remain where you last saw them. -
Page 5: Safety With Gasoline-Powered Machines
• Never make adjustments or repairs with the Engine running. Before making an adjustment or repair, shut off the DR TOW- BEHIND ROTOTILLER Engine, wait five (5) minutes to cool, then disconnect the Spark Plug Wire and keep the Wire away from the Spark Plug to prevent accidental starting. -
Page 6: General Safety
Use the DR TOW-BEHIND ROTOTILLER only in daylight and give complete and undivided attention to the job at hand. • Do not hurry or take things for granted when using the DR TOW-BEHIND ROTOTILLER. When in doubt about the machine or your surroundings; stop the machine and take time to look things over. -
Page 7: Chapter 2: Setting Up Your Dr Tow-Behind Rototiller
Chapter 2: Setting Up Your DR TOW-BEHIND ROTOTILLER It may be helpful to familiarize yourself with the Controls and Features on your new machine by reviewing Figure 2 before www.DRPower.com beginning the steps outlined in this chapter. For technical assistance, please visit our website at DR TOW-BEHIND ROTOTILLER Controls and Features NOTE: The model shown in Figure 2 may look slightly different from your machine. -
Page 8: Assembling The Machine
12 Gauge, 1.5" Tubular Steel Assembling the Machine NOTE: Assembling the DR TOW-BEHIND ROTOTILLER is a two-person job, as the Unit weighs 169 pounds. We recommend you have an extra set of hands available before you begin. Parts Supplied on Shipping Pallet: •... - Page 9 Pull the Lift Handle Forward to lower the wheels (Figure 2 on page7). Get help from another person to roll the Tiller from the Pallet. Axle If there are any questions, contact us at www.DRPower.com or call 1-800-DR- Pallet Lag Screws OWNER (376-9637).
-
Page 10: Adding The Engine Oil And Gasoline
Attach the Hitch of the Tiller to the Tow Vehicle using a Hitch Pin and the Hair Cotter Pin (Figure 9). NOTE: The DR TOW-BEHIND ROTOTILLER comes with a Hitch Extension Bracket. This Bracket can be used to slightly lower or elevate the front of the machine. -
Page 11: Chapter 3: Operating Your Dr Tow-Behind Rototiller
Grasp the Recoil Starter Handle and slowly pull until you feel resistance, then pull the cord with a smooth accelerating motion to start the Engine. Do not let the Starter Handle snap back against the Engine. One or two pulls usually starts the DR TOW- BEHIND ROTOTILLER. -
Page 12: Stopping The Engine
We recommend the use of ear protectors or ear plugs rated for at least 20 dba to protect your hearing. • Never put your hands near the tines to clear debris while the engine is running. Always shut off the DR TOW-BEHIND ROTOTILLER engine and disconnect the spark plug wire before clearing debris. -
Page 13: Operating Procedures
Do not use this machine around large roots and surface rocks that you cannot remove. • Never engage the tines when they are in the ground. If the DR TOW-BEHIND ROTOTILLER engine should stall, raise the tines out of the soil and disengage them. -
Page 14: Tilling Tips
Check the ground moisture. DO NOT till if you can make a ball of soil in your hand from the ground to be tilled; it is too wet. Create full tillage (depths up to 5.5") after entire area is dry. • To obtain the most efficient tillage, operate the DR TOW-BEHIND ROTOTILLER Engine at full throttle at the slowest speed of your Tow Vehicle. •... -
Page 15: Cultivating Tips
Handling and Transporting We recommend using two (2) people to lift the DR TOW-BEHIND ROTOTILLER. Lift the machine by the Hitch to connect and disconnect from your Tow Vehicle. To transport the machine with your Tow Vehicle, first raise the Tines to the MAX position (lower the Wheels) using the Lift Handle. -
Page 16: Chapter 4: Maintaining Your Dr Tow-Behind Rototiller
Chapter 4: Maintaining Your DR TOW-BEHIND ROTOTILLER This chapter covers regular maintenance procedures that will ensure the best performance and long life of your DR TOW-BEHIND ROTOTILLER. For Engine maintenance, please refer to the Engine Owner’s Manual that came with your machine. Service intervals listed in the checklist below supersede those listed in the Engine Owner’s Manual. -
Page 17: Removing And Replacing The Engine Oil
Tines Shaft: Grease the Tines Shaft using a Grease Gun with General Purpose grease every 8-10 hours. Apply about ten (10) pumps of grease in the Grease Fitting (Figure 17). Perform this lubrication more often in dry and dusty environments. Tines Shaft Never oil or grease pivot points. -
Page 18: Removing And Replacing The V-Belt
Tine Clutch Belt Guard Lever • Use only DR belts on your machine. They have been thoroughly tested and proven for many hours of use. • Do not move or remove the belt guide (Figure 21). If you accidentally Bolt alter the position of the belt guide, return it to the correct setting of 6- 1/4"... -
Page 19: Tine Operation Check
Never attempt to use a bolt that is larger or harder than the original shear Bolt. Shear Bolts Figure 22 • Two (2) extra Tine Shear Bolts with Lock Washers are included with the DR TOW-BEHIND ROTOTILLER. They are located in the Tiller Stake Support Bracket on the rear of the Tiller. •... - Page 20 This Page Intentionally Left Blank ® TOW-BEHIND ROTOTILLER...
-
Page 21: Chapter 5: Troubleshooting
Chapter 5: Troubleshooting Most problems are easy to fix. Consult the Troubleshooting Table for common problems and their solutions. If you continue to experience problems, visit our website at www.DRPower.com or call: 1-800-DR-OWNER (376-9637) for support. Troubleshooting Table When performing any maintenance, you must first shut off the Engine; wait five (5) minutes to allow parts to cool and disconnect the Spark Plug Wire, keeping it away from the Spark Plug. - Page 22 Be sure the Engine Throttle is set on the Fast (RABBIT) position. The Wheels and Depth Stake are incorrectly adjusted. Readjust the Wheels and Depth Stake. If your DR TOW-BEHIND ROTOTILLER still bounces, visit our website at www.DRpower.com. The tilled soil balls up ...
-
Page 23: Chapter 6: Parts Lists, Schematic Diagrams And Warranty
Chapter 6: Parts Lists, Schematic Diagrams and Warranty Parts List - Main Assembly NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description A0005707744 DR Tiller Tine Drive Assembly 160031 Pin-Hitch Clip 1/2-9/16 231210... -
Page 24: Schematic Diagram - Main Assembly
Schematic Diagram - Main Assembly ® TOW-BEHIND ROTOTILLER... - Page 25 Parts List and Schematic Diagram -Tine Drive Transmission Assembly NOTE: Part numbers listed are available through DR Power Equipment. Ref# Part# Description Ref# Part# Description 303150 Assy, Tine Shaft & Sprocket Tpt G022287 Screw, HHC, 1/4-20 X 3/4 GR5 233440...
- Page 26 Notes CONTACT US AT www.DRpower.com 26...
- Page 27 Power Equipment shall not be liable under any circumstances for any incidental or consequential damages or expenses of any kind, including, but not limited to, cost of equipment rentals, loss of profit, or cost of hiring services to perform tasks normally performed by the DR ®...
- Page 28 Inspect moving parts and the Tine Drive Belt for damage and wear; replace if necessary. • If possible, store your DR TOW-BEHIND ROTOTILLER inside, but not near an open flame or spark such as found in a water heater. •...
