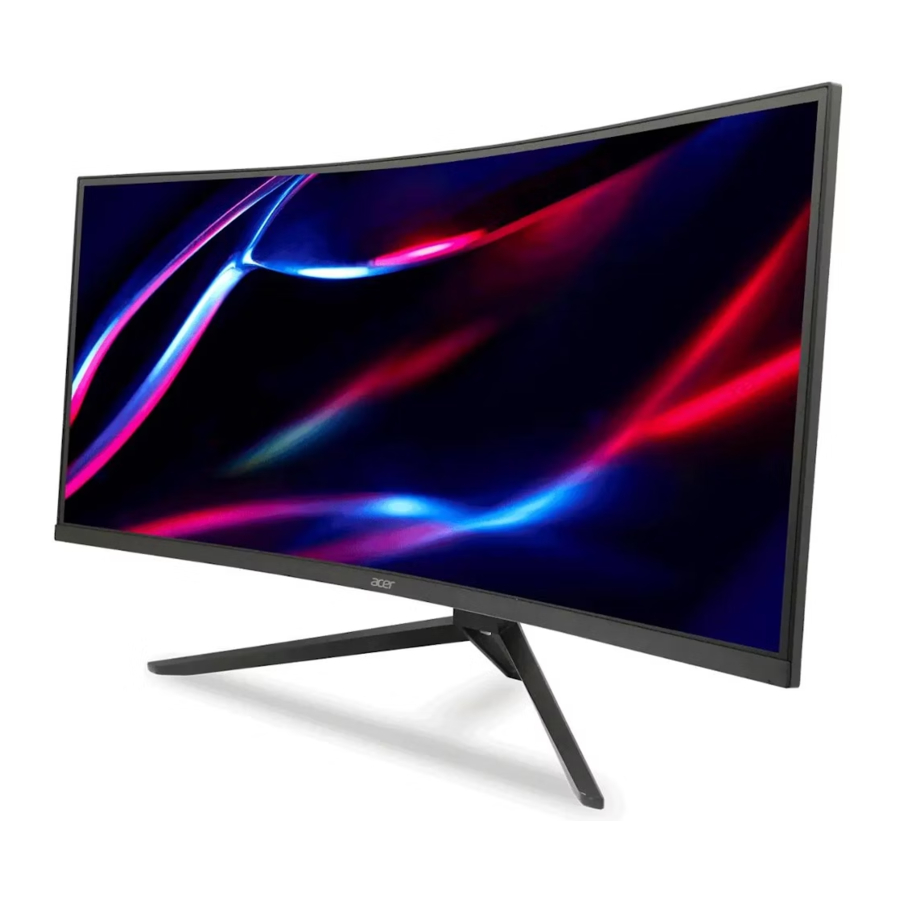

Acer ED343CUR V3 Manual

Attaching the unit to the base

1. Remove the monitor from the packaging.
2. Remove the screws of the base for use, align the neck with the base, and tighten the screws.
3. Clip the bracket into the notch of the rear housing in sequence and press it down. Hear a "click" and the installation is completed.

Connecting your unit to a computer

1. Turn off your computer and unplug your computer's power cord.
2. Connect the signal cable to the HDMI (optional) and / or DP (optional) input socket of the monitor, and the HDMI (optional) and /or DP (optional) output socket of the graphics card on the computer.
3. Insert the monitor power cable into the power port at the back of the monitor.
4. Plug the power cords of your computer and your monitor into a nearby electrical outlet.

Note: Audio output is only for audio output model. Please check user manual for more instruction.

Transmitting the 4K 180Hz signal via one DP 1.4 port.

FreeSync Premium

It can allow a FreeSync Premium supported graphics source to dynamically adjust display refresh rate based on typical content frame rates for power efficient, virtually stutter free and low-latency display update.

External controls

1	Power button/OK Key	Power on; Press more than 5 seconds to turn off the power. Press to view the home page. Press again to go to the next function in the function menu.
2	Four directions key	Press to any directions key to display first menu. The four directional buttons on the back of the monitor are like a joystick. To move the cursor, just toggle buttons in four directions. Press the button to select the desired option. Red indicates operational. Grey indicates inoperable.

Note: Acer monitor is purposed for video and visual display of information obtained from electronic devices.

Important safety instructions

Please read the following instructions carefully.

1. To clean the LCD monitor screen:
   • Turn off the LCD monitor and unplug the power cord.
   • Spray a non-solvent cleaning solution onto a rag and clean the screen gently.
2. Do not place the LCD monitor near a window. Exposing the monitor to rain, moisture or sunlight can severely damage it.
3. Do not apply pressure to the LCD screen. Excessive pressure may cause permanent damage to the display.
4. Do not remove the cover or attempt to service this unit yourself. An authorized technician should perform servicing of any nature.
5. Store the LCD monitor in a room with a temperature of -20° to 60°C (-4° to 140°F). Storing the LCD monitor outside this range may result in permanent damage.
6. Immediately unplug your monitor and call an authorized technician if any of the following circumstances occur:
   • Monitor-to-PC signal cable is frayed or damaged.
   • Liquid spills onto the LCD monitor or the monitor is exposed to rain.
   • The LCD monitor or case is damaged.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Acer ED343CUR V3 Manual
