Segway-Ninebot KickScooter E2, KickScooter E2 Plus Manual

Diagram

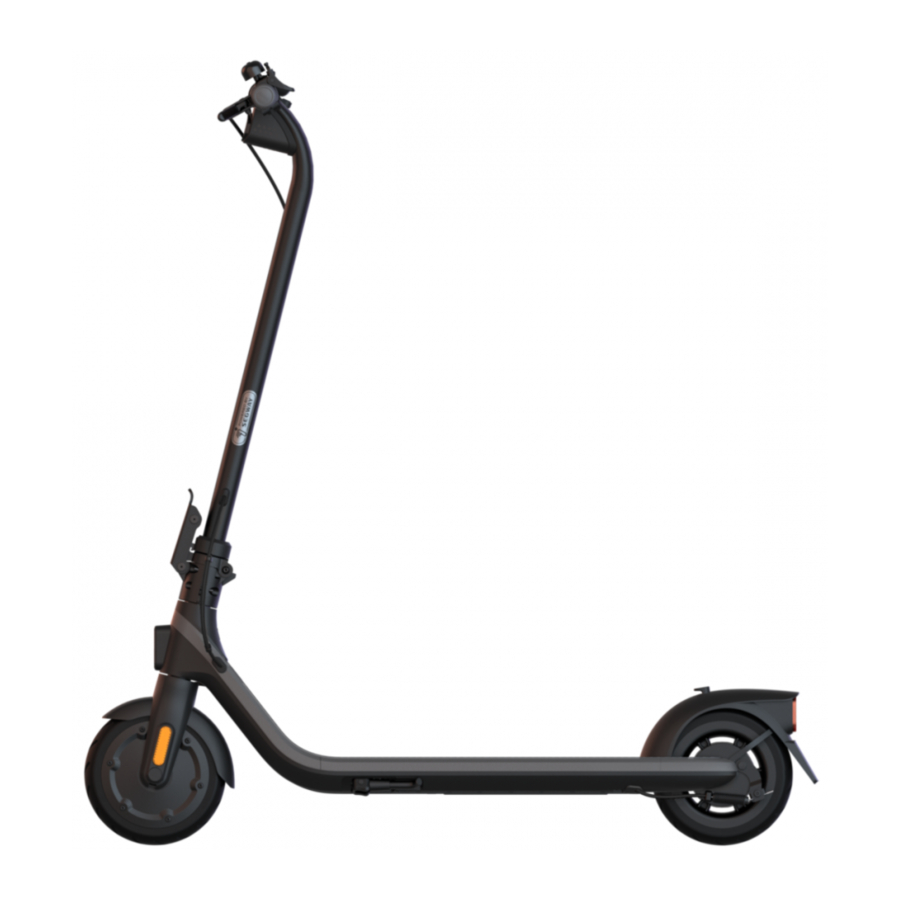

Overview - Part 1

Dashboard & Power Button

Overview - Part 2 - Dashboard & Power Button
Power Button: Press the button to power on the scooter; press and hold the button for 3 seconds to power it off. When the scooter is on, press the power button to turn on/off the headlight and the rear light, and press twice to switch between the speed modes.
Speedometer: It displays the current speed of the scooter, as well as error codes.
Speed Mode: There are two modes available. The top speed is as follows:

Mode\Model	E2	E2 Plus
D (Standard mode)	9.3 mph (15 km/h)	12.4 mph (20 km/h)
S (Sport mode)	12.4 mph (20 km/h)	15.5 mph (25 km/h)

Walk Mode: Max. speed is 5 km/h (3.1 mph). The headlight and tail light are always on and can't be turned off.
* How to enable in the Segway-Ninebot app: Settings > Walk Mode.
Error Notification: It indicates that the scooter has detected an error.
Temperature Warning: It indicates that the battery temperature has reached 55°C (131°F) or is below 0°C (32°F).
* At this point, the scooter cannot accelerate normally and may not be charged. Do not use until the temperature has reverted to the normal range.
Bluetooth: It indicates that the scooter has been successfully connected to the mobile device.
Battery power: The total battery power equals 5 bars.
* The battery power is very low when the first battery bar is red. Please charge your scooter immediately.
Locking Reminder: When the icon lights up, it means the scooter is locked. If abnormal movements are detected, the scooter will start beeping and the tail light will falsh.
Cruise Mode: When the icon lights up, it means cruise mode is turned on.

Specifications

	Item	Parameter
Product	Name	Ninebot KickScooter E2	Ninebot KickScooter E2 Plus
	Model	051401U	051402U
	Length × Width × Height	Approx. 45.2 × 17.5 × 42.3 in (1147 × 445 × 1075 mm)
	Folded: Length × Width × Height	Approx. 45.2 × 17.5 × 19.7 in (1147 × 445 × 500 mm)
	Net Weight	Approx. 30.8 lbs (14 kg)	Approx. 31.7 lbs (14.4 kg)
Rider	Max. Payload	198.4 lbs (90 kg)
	Recommended Age	14+
	Required Height	3'11''–6'6'' (120–200 cm)
Machine	Max. Speed	Approx. 12.4 mph (20 km/h)	Approx. 15.5 mph (25 km/h)
	Theoretical Range^[1]	Approx. XX miles (XX km)
	Typical Range^[2]	Approx. XX miles (XX km)
	Max. Slope	Approx. 10%
	Traversable Terrain	Mostly smooth roads or normal asphalt, tarmac roads
	Operating Temperature	14–104°F (-10–40°C)
	Storage Temperature	14–122°F (-10–50°C)
	IP Rating	IPX4
	Duration of Charging	Approx. 8 h
Battery	Model	NEEF2210A
	Nominal Voltage	21.6 V ⎓
	Max. Charging Voltage	25.2 V ⎓
	Charging Temperature	32–111°F (0℃–44℃)
	Nominal Energy	220 Wh
	Nominal Capacity	10.2 Ah
	Battery Management System	Protection against overvoltage/undervoltage/short circuit/overcurrent/over temperature
Motor	Nominal Power	0.25 kW, 250 W	0.3 kW, 300 W
	Max. power	0.50 kW, 500 W	0.56 kW, 560 W
Charger	Model	NBW25D201D5N-US
	Output Power	36.3 W 100-240
	Input Voltage	V~ 50-60 Hz
	Max. Output Voltage	25.2 V ⎓
	Rated Output	24.2 V ⎓ 1.5 A
Tire	Tires	8.1-inch rubber hollow tire

Theoretical Range: tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), 70% of max. speed on average on pavement.
Typical Range: tested while riding with a full battery, 165 lbs (75 kg) load, 77°F (25°C), at the max. speed on average on pavement.

* Some of the factors that affect range include speed, load, number of starts and stops, ambient temperature, etc.
