Bumbleride Era Manual

Hello

Welcome to the Bumbleride family. Get ready for the ride of your life.
At Bumbleride, our goal is to make gear for parents to get out and do what they love, while doing our best to preserve the planet.
With Era and all our products, we are committed to creating the very best product experience for our families. Our designers seek to understand how you interact with your children and develop ergonomic designs for you and your baby. Our customer care team is here to help and put a smile on your face. We love to make your life just a little bit easier. That's our Bumbleride Promise.
Everything we do has an impact on this world. From the factories we partner with, to the materials we choose, we take the time to think critically and act responsibly. We promise straightforward, common sense design that doesn't try to be too clever.
We know you're busy. So you need products and services that work seamlessly and a partner that supports you if they don't. For us, it's not just about providing quality service, but caring about the service we provide.

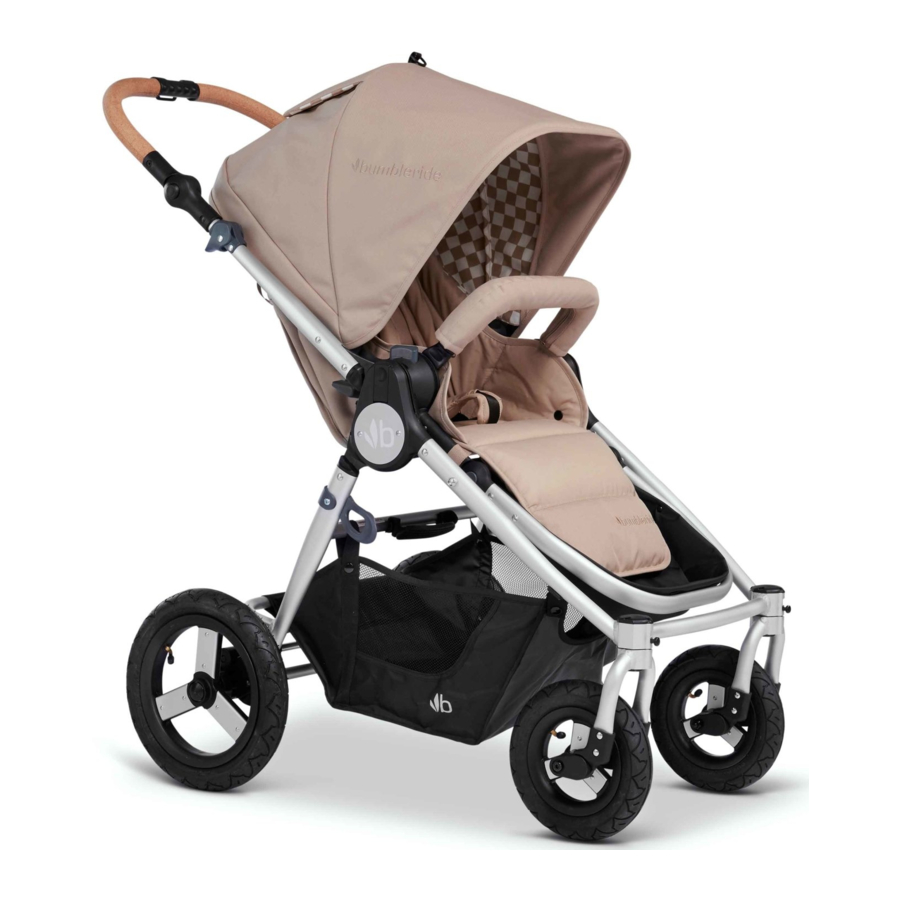

Our aim with Era is to give you a modular, all terrain stroller perfect for the active family. From the pavement to the trail, Era adapts to your daily adventures called life. Wherever your path takes you, Era is the only stroller you will need from birth through toddlerhood.
Please complete the product registration card so that we may assist you with any of your warranty needs should they arise. You can also register your product online at: bumbleride.com/support
The Bumbleride Era complies with ASTM F-833-21, SOR/2016-167 and EN 1888-1/2:2018 safety standards.
Materials are important. Feel good knowing our eco fabrics keep plastic bottles out of landfills, discarded sea nets out of oceans, and our dye process conserves water.

2. As handle comes around lift the stroller onto the back legs and continue rotating the handle until the hinge locks engage.

3. Unfold the seat by depressing the seat latches and lifting the seat back.

4. Rotate the seat back until it locks into position inline with the stroller frame.


1. Slide the rear wheel into the rear axle tube. You will hear a 'CLICK'. To remove rear wheel pull on the release knob while pulling out the wheel.

2. Position front wheel between the fork. Slide the axle bolt through the fork and wheel.

3. Thread the nut onto the axle bolt and tighten using the tools provided.

4. When traveling over uneven terrain always lock forks for maximum stability.

5. Finally, connect the rear flap of the cargo basket around the support bar.


1. To remove the bumper bar depress both latches on the inside of the seat hinge.

2. To install the bumper bar locate the holsters on each side of the seat and slide it into place.


1. Press down on the brake pedal to engage.

2. Press down on the top of the pedal to disengage the brake or lift up the pedal from the underside.


1. Open the five point safety harness by pressing the button in the middle. Notice how the harness locks together.

2. To tighten the straps pull down on the ends until the harness fits comfortably and securely.

3. Harness waist straps come threaded through the infant restraint loops. As your child grows unthread waist straps for better fit.

4. As your child grows you can rethread the shoulder straps in a higher position on the backrest.

5. Undo the Velcro pocket at the top of the seat back to access matching slots on the seat back support. Turn the buckle sideways and push it through the slot.

6. Re-thread the buckle through the chosen slot and lay it flat against seat back support.


1. Recline the backrest to its lowest position by squeezing the backrest adjuster and pulling it down. To raise the seat, hold the strap while pushing up with the adjuster.

2. Lift footrest to its highest position by pressing the buttons on each side.

3. Infant mode tongues are folded into a pocket on the underside of the seat fabric. Unfold both sides.

4. The webbing strap on the tongue goes around the bumper bar and secures with the snap. Locate and detach the lower snap on the seat fabric. The lower snap on the tongue attaches to the stroller frame.


1. Begin by raising the seat back. Hold the end of the strap and squeeze the adjuster while sliding it upward.

2. Locate the seat fold triggers and release the seat frame.

3. Rotate the seat back all the way over until the latches engage.

4. Ensure both front wheels are pointing forward.

5. Stand behind stroller and simultaneously squeeze both triggers while lifting the handlebar.


6. Continue fold until you hear the autolock engage. Fold down handlebar for a more compact fold.

7. To safely carry your stroller use the handle on the frame with the wheels facing out.


1. Begin by grasping the bumper bar with both hands and depressing the grey buttons to release the seat frame then lift the seat up free of the hotshoes.

2. Reverse seat and slide it onto the hotshoes until it latches in place. Pull up on the bumper to ensure it is securely attached.


1. Era tires have inner tubes and will occasionally need air added. You will find the pump in the cargo basket pocket.

2. Begin by removing the valve cap. Keep it close by and out of reach of children.

3. Push pump head firmly onto the valve. You may hear some air escaping. Flip up the pump head lever to seal the connection.

4. Unfold pump handle and inflate the tire to 30psi/ 2bar. The tire should feel firm but with some give.


Frame & Parts
If the stroller comes in contact with sand, salt or snow, hose off the wheels, forks & brakes with water. Use a damp cloth and a non-toxic all purpose cleaner for the frame & handlebar.

• Always use the brake when not holding the stroller.
• Excess weight may cause hazardous or unstable conditions to exist. Never allow more than one child per seat of the stroller. Never leave children in stroller when using stairs or escalators.
• Infant may slip into leg openings and strangle. Never use in reclined carriage position unless the safety harness is used, the footrest is raised and the footrest sidewalls are attached.
• Do not leave the stroller exposed to heat for long periods of time.
• Do not fold stroller when wet.
• Parcels and/or accessory items placed on the stroller may cause it to become unstable.
•
  Do not let the child play with this product
• Maximum weight in cargo basket 15 lbs/7kg
