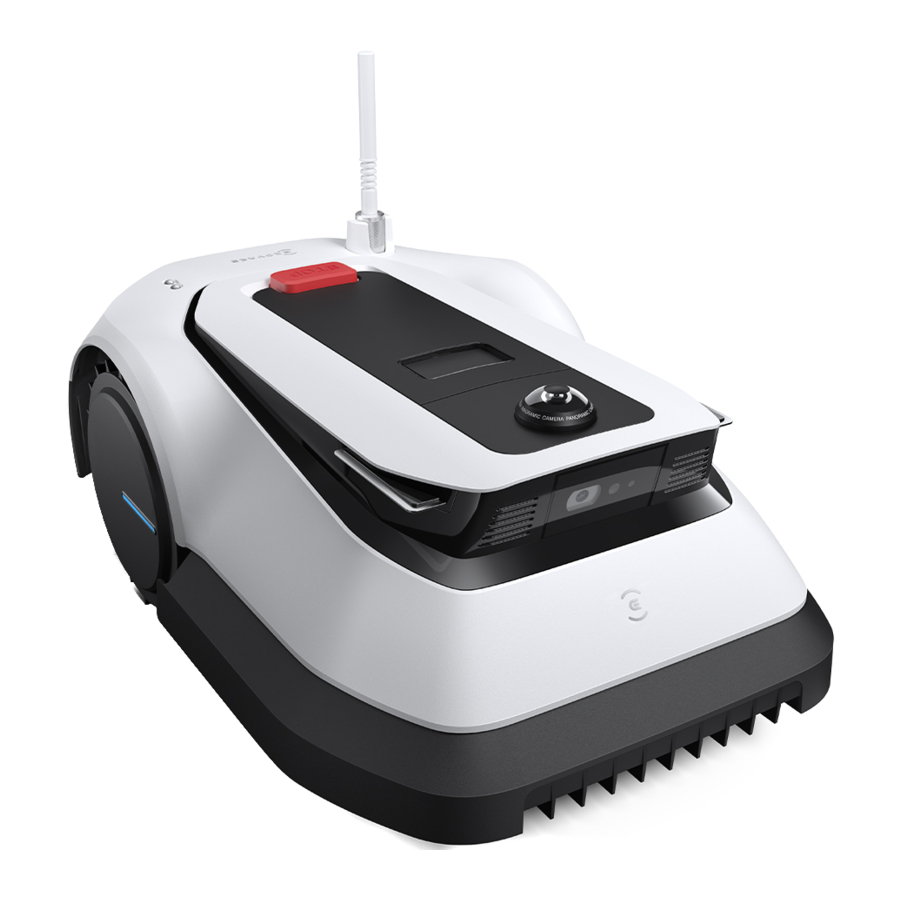

ECOVACS GOAT G1 Manual

MAINTENANCE

In order to get the best mowing performance and prolong GOAT's service life, it is necessary to clean and check your GOAT every now and then. The contents below will tell you how to maintain your GOAT.

• REMEMBER TO POWER OFF GOAT BEFORE OPERATION.
• ALWAYS WEAR PROTECTIVE GLOVES WHEN REPLACING THE BLADES AND PERFORMING CLEANING.
• COVER THE PANORAMIC CAMERA. PULL THE NUT UPWARD AND TURN IT COUNTERCLOCKWISE TO LAY SIGNAL RECEIVER DOWN. WHEN REPLACING THE BLADES AND PERFORMING CLEANING.


Regular Maintenance

To keep GOAT running at peak performance, perform maintenance tasks and replace parts with the following frequencies:

Note: Please utilize only the battery which is the original one or that of the same model as specified by ECOVACS.

Specific Maintenance

1. Replace the Blades

   Remember to power off GOAT before operation. ALWAYS wear protective gloves when replacing the Blades. Please only use the Blades manufactured by ECOVACS and use new screws when assembling Blades.
   • Power off GOAT.
   • PUT ON THE PANORAMIC CAMERA COVER AND LAY SIGNAL RECEIVER DOWN.
   • GENTLY TURN GOAT OVER ON A SOFT SURFACE.
   • Loosen the Screws with the supplied screwdriver.
   • Remove the Screws and Blades.
   • Tighten the new Blades and Screws. Make sure that the Blades can spin freely.

2. Replace the Camera Brush
   • Pull old Camera Brush out from the Station by grabbing the hook on it.
   • Slide the new Camera Brush along the slot into the Station until you hear a "click".

3. Replace the Dry Cells in Navigation Beacon
   • Turn the Beacon counterclockwise until the projection points at "" and remove the Beacon from the Navigation-assisted Pole.
   • Disassemble the Beacon by turning the upper Beacon counterclockwise.
   • Take out the Dry Cells and replace them with new ones.
   • Refer to "INSTALL THE NAVIGATION BEACON-Assemble the Navigation Beacon" for detailed Navigation Beacon assembly.

4. Clean the Blade Disc, Chassis, Off-road Wheels and Front Wheels

   ALWAYS wear protective gloves. DO NOT use the high pressure washer. High pressure water can enter the sealings and damage electronic and mechanical parts.
   • Power off GOAT.
   • PUT ON THE PANORAMIC CAMERA COVER AND LAY SIGNAL RECEIVER DOWN.
   • GENTLY TURN GOAT OVER ON A SOFT SURFACE.
   • Clean the Blade Disc and the chassis with a brush.
   • Check that the Blade Disc can rotate freely and Blades can spin freely.
   • Clear the mud from the Off-road Wheels and Front Wheels by using a brush to have a fine grip.

5. Clean the Other Components
   Wipe the components with a clean, dry cloth. Avoid using cleaning sprays or detergents.

6. Check the Navigation Beacon Regularly
   • If the Navigation Beacon tilt angle exceeds 10°, reinstall the Navigation Beacon firmly to the ground at the original position.
   • If there are branches and tendrils on the Navigation Beacon which may cause signal interference, please clear them away in time.


STORAGE OVER THE WINTER

GOAT

• Power off your GOAT after it is fully charged.
• Clean it thoroughly.
• Store in a cool, well-ventilated and dry place indoors.

Station

• Unplug the Power Supply from the power socket.
• Disconnect Power Supply from the Station.
• Store the Station and Power Supply in a cool, well-ventilated and dry place away from direct sunlight.

Note: It is necessary to put the Station in the original position for working on a new season. Otherwise, it may lead to location fault and map invalidation.

Navigation Beacon

• Turn the Beacon counterclockwise until the projection points at "" and remove it from the Navigation-assisted Pole.
• Store the Beacon in a cool, well-ventilated and dry place indoors.
• If you are not intended to use the Navigation Beacon for a long time, please take out the Dry Cells.

Note: It is necessary to reinstall the Beacon to the original position. Otherwise, it may lead to location fault and map invalidation.

TRANSPORTATION

It is recommended to use the original package to protect GOAT when you intend to transport GOAT for a long distance. Remember to power off your GOAT before carrying out any transportations and handle it gently. DO NOT pick up your GOAT while it is still running or in the Station.

How to pick up your GOAT properly?
Pick up your GOAT by holding the handle and the head at the same time. Make sure that the Blade Disc faces towards the ground.

BATTERY

For long-time storage, it is recommended to charge GOAT every 6 months. The Limited Warranty does not cover battery damage caused by over-discharge. The battery CANNOT be charged when the ambient temperature is above 40°C / 104°F or below 5°C / 41°F. The recommended temperature for GOAT operation is between 5-40°C / 41~104°F. The storage temperature range is -20~75°C / -4~167°F.

Note: The life-span of GOAT's battery depends on the frequency of usage and the total hours of use. It is also non-rechargeable. DO NOT dispose disused or faulted battery casually. Check with your Local Authority for advice.

FUNCTION MESSAGES

This part will tell you the explanation about function messages GOAT displays.

FAULT MESSAGES

Smart as GOAT, it will tell you the errors when things go wrong so that you can find the way to fix them. See the table below for the detailed information.

TROUBLESHOOTING

If there is something wrong with your GOAT when working, you can consult the table below.
Please contact our Customer Service if the problems still exist.

TECHNICAL DATA

Basic Information	Product Name	Lawn Mowing Robot
	Model	MPB11-11
	Brand	ECOVACS
	Dimensions: Length (mm) × Width (mm) × Height (mm)	650×433×277
	Net Weight (kg) (Battery Included)	13
Mower Parameters	Rated Voltage	21V
	Working Capacity (ट)	1600
	Cutting Width (cm)	22
	Cutting Height (cm)	3-6
	Charging Time (min.)	90
Noise Emissions	Measured Sound Power Level LWA	59 dB(A)
	Sound Power Uncertainties KWA	3 dB(A)
	Sound Pressure Level LpA	51 dB(A)
	Sound Pressure Uncertainties KpA	3 dB(A)
Connectivity Frequency Range	Bluetooth®	2400MHz ~ 2483.5MHz
	Wi-Fi	2400MHz ~ 2483.5MHz
	Cellular Network	GSM:EGSM 900: Uplink: 880-915MHz, Downlink: 925-960MHz DCS 1800: Uplink: 1710-1785MHz, Downlink: 1805-1880MHz WCDMA: BAND I: Uplink: 1920-1980MHz, Downlink: 2110-2170MHz BAND VIII: Uplink: 880-915MHz, Downlink: 925-960MHz LTE: E-UTRA BAND 1: Uplink: 1920-1980MHz, Downlink: 2110-2170MHz E-UTRA BAND 3: Uplink: 1710-1785MHz, Downlink: 1805-1880MHz E-UTRA BAND 7: Uplink: 2500-2570MHz, Downlink: 2620-2690MHz E-UTRA BAND 8: Uplink: 880-915MHz, Downlink: 925-960MHz E-UTRA BAND 20: Uplink: 832-862MHz, Downlink: 791-821MHz E-UTRA BAND 28: Uplink: 703-748MHz, Downlink: 758-803MHz E-UTRA BAND 38: Uplink: 2570-2620MHz, Downlink: 2570-2620MHz E-UTRA BAND 40: Uplink: 2300-2400MHz, Downlink: 2300-2400MHz Available frequency bands for LTE Band 28 in Europe are 703-736MHz(TX), 758-791MHz(RX)
	GNSS	GPS L1 C/A:1575.42MHz±1.023MHz BeiDou B1I: 1561.098 ±2.046 MHz GLONASS L1: 1597.78~1605.66 MHz
	Beacon	CH9:7987.2MHz
MAX. radio-frequency power	Bluetooth®	≤20dBm
	Wi-Fi	≤20dBm
	Cellular Network	EGSM 900: 25 dBm to 35 dBm DCS1800: 22 dBmto 32 dBm WCDMA:+24dBm+1.7/-3.7dB LTE: E-UTRA Band28:23dBm+2.7/-3.2dB other Bands: 23dBm±2.7dB
	GNSS	Only receive but not transmit
	Beacon	≤0dBm/50MHz
Driving Motor	Rated Speed (r/min)	64
	Top Speed (r/min)	70
	Motor Type (W)	20
Blade Motor	Top Speed (r/min)	4000
	Motor Type (W)	50
Battery (Mower)	Battery Type	Lithium-ion
	Rated Voltage	18.5 V
	Rated Capacity	5200 mAh
Battery (Beacon)	Battery Type	Dry Cell
	Rated Voltage	4.5 V
	Rated Capacity	18000 mAh
Navigation Beacon	Usage Temperature	-15~40°C / 5~104°F
	Storage Temperature	-18~50°C / -0.4~122°F
Power Supply	Supply Unit Model	GM95-210300-2DE
	Input Voltage	100-240 V
	Output Voltage	21 V
	Output Current	3 A
Station	Model	CH2203
	Input Voltage	21 V
	Input Current	3 A
	Output Voltage	21 V
	Output Current	3 A

Note: Technical and design specifications may be changed for continuous product improvement. Explore more accessories at https://www.ecovacs.com/global.

ACCESSORIES

IMPORTANT SAFETY INSTRUCTIONS

READ CAREFULLY BEFORE USE KEEP FOR FUTURE REFERENCE

Read the instructions carefully. Make sure you understand the instructions and be familiar with the controls and the proper use of the appliance. Please understand that you can reduce the risk by following the instructions and warnings in this manual, but you cannot eliminate all the risks.

Lawn Mowing Robot (hereinafter referred to as "GOAT") has many built-in safety sensors, however, safety risks still exist.

All related residual risks have been described or informed in this manual.

Description of intended use: Intelligent lawn mowers are mainly used in mowing grass, especially in parks, private villa yards, and football fields.

For machines used in public areas, that warning signs shall be placed around the working area of the machine.

They shall show the substance of the following text: WARNING! Automatic lawnmower!

Keep away from the machine! Supervise children!

DO NOT modify the mower by yourself. Modifications could interfere with mower operations, result in serious injury and/or damage, or void the Limited Warranty. Use only Ecovacs approved parts and accessories.

• Never allow children, persons with reduced physical, sensory or mental capabilities or lack of experience and knowledge or people unfamiliar with these instructions to use the machine, local regulations may restrict the age of the operator.
• To avoid using the machine and its peripherals in bad weather conditions especially when there is a risk of lightning.
• Before each mowing session, check that all parts of the mower can function normally.
• Periodically inspect the area where the machine is to be used and remove all stones, sticks, wires, bones, and other foreign objects.
• NEVER allow children to touch the power supply unit, charging station, blades, the battery compartment, or any parts with gaps such as the wheels.

• Never to operate the machine and/or its peripherals with defective guards or shields, or without safety devices, or if the cord is damaged or worn.
• Keep away from the rotating blades! DO NOT put hands or feet under or near the rotating blades. Keep a safe distance from the mower when operating.
• DO NOT overreach. Keep your balance at all times and always be sure of the footing on slopes. Walk, never run while operating the machine or its peripherals.

Never allow children to be in the vicinity or play with the machine when it is operating.

DO NOT touch moving hazardous parts before they have come to a complete stop.

• For the purposes of recharging the battery, only use the detachable supply unit provided with this appliance (CH2203).
• This appliance contains batteries that are only replaceable by skilled persons.

Safe Usage

Not to connect a damaged cord to the supply or touch a damaged cord before it is disconnected from the supply for the reason that damaged cords can lead to contact with live parts; keep extension cords away from moving hazardous parts to avoid damage to the cords which can lead to contact with live parts; to connect the machine and/or its peripherals only to a supply circuit protected by a residual current device (RCD) with a tripping current of not more than 30 mA.

Unplug the Power Supply from the power socket and then untangle when the power cord or the extension cable is damaged or entangled during use. During the operation, pull the body of the plug rather than the cord to avoid the hazard. Contact Customer Service and let the skilled professional to repair or replace the cord.

Please use the extension cable manufactured by ECOVACS. If you have any problem, contact Customer Service.

If the SUPPLY CORD is damaged, it must be replaced by the manufacturer, its service agent or similarly qualified persons in order to avoid a hazard.

Press the STOP Button at once when the mower makes the abnormal sound or raises the alarm.

In case of leakage of electrolyte flush with water or neutralizing agent, ask for medical help once it gets contact with the eyes etc.

If there are abnormal vibrations, please restart the mower. If the problem persists, please Contact Customer Service.

SYMBOLS

	Read instruction manual before operating the machine.
	Keep a safe distance from the machine when operating.
	Do not ride on the machine.
	Operate the disabling device before working on or lifting the machine.
	Do not touch rotating blade.
	Class III
	Direct current
	Alternating current
	This product conforms to the applicable EC Directives.
	This product conforms to the applicable UK legislation.
	Polarity of the charging port
	Before charging, read the instructions.

Sensors
