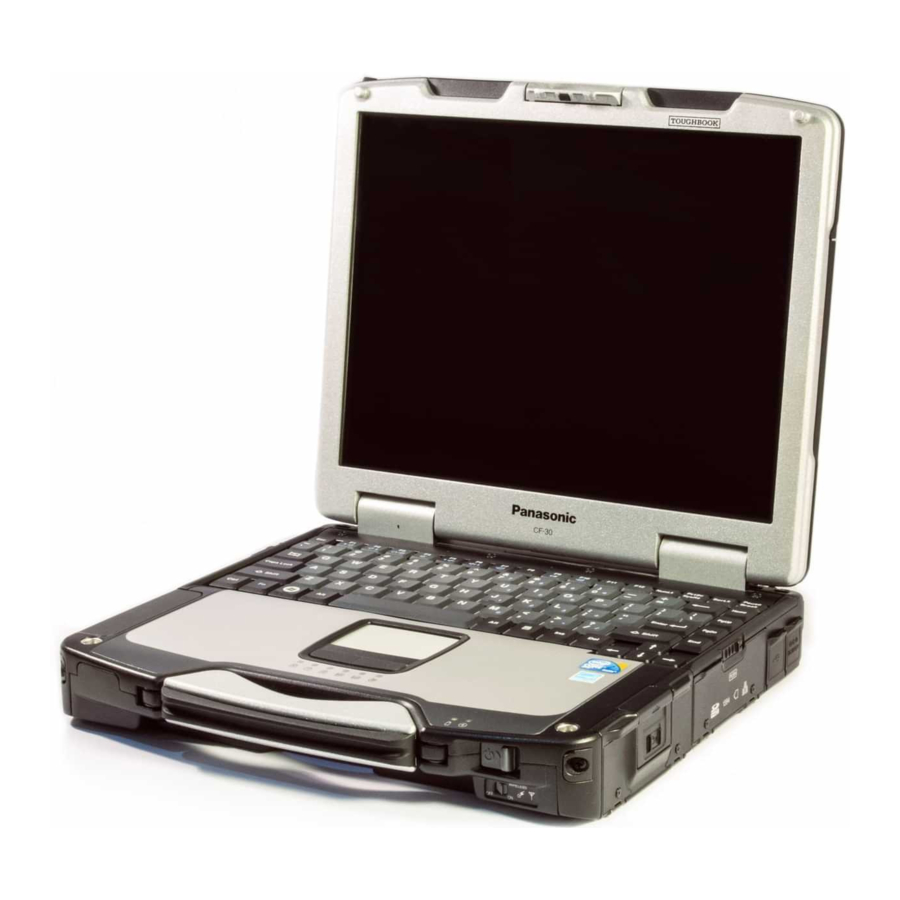

Panasonic CF-30 Series Manual

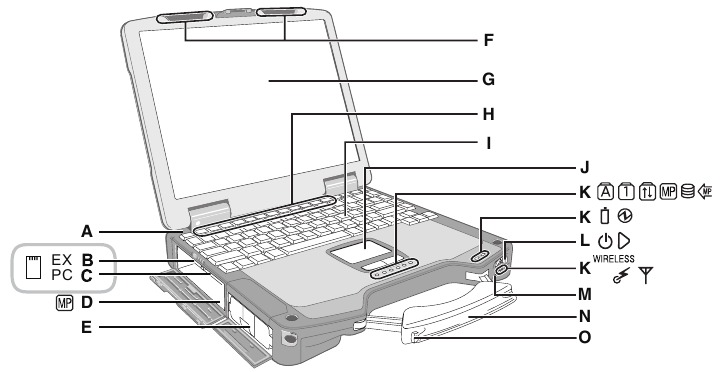

Description of Parts

Description of Parts

  1. Bluetooth Antenna
    <Only for model with Bluetooth>
    Reference Manual "Bluetooth"
  2. ExpressCard Slot
    Reference Manual "PC Card / ExpressCard"
  3. PC Card Slot
    Reference Manual "PC Card / ExpressCard"
  4. Multimedia Pocket
    Reference Manual "Multimedia Pocket"
  5. Battery Pack
  6. Wireless LAN Antenna
    <Only for model with wireless LAN>
    Reference Manual "Wireless LAN"
  7. LCD
    <Only for model with touchscreen>
    Reference Manual "Touchscreen"
  8. Function Key
    Reference Manual "Key Combinations"
  9. Keyboard
  10. Touch Pad
  11. LED Indicator
    : Caps lock
    : Numeric key (NumLk)
    : Scroll lock (ScrLk)
    : Multimedia pocket device status or the second battery status
    Reference Manual "Multimedia Pocket" "Battery Power"
    : Hard disk drive status
    : Power status of the multimedia pocket
    : Battery status
    Reference Manual "Battery Power"
    : Power status (Off: Power off/Hibernation, Green: Power on, Blinking green: Standby)
    : Wireless ready *1
    This indicator lights when Wireless LAN, Bluetooth, and/or Wireless WAN are connected and ready. It does not necessarily indicate the On/Off condition of the wireless connection.
    Reference Manual "Wireless LAN" "Bluetooth" "Disabling / Enabling Wireless Communication"
    : Wireless WAN status <Only for model with wireless WAN>
    Refer to the instruction manual of the wireless device
  12. Power Switch
  13. Wireless Switch *1
    Reference Manual "Disabling / Enabling Wireless Communication"
  14. Carrying Handle
  15. Stylus Holder

*1 <Only for model without both wireless LAN and Bruetooth>
Both Wireless Switch and Wireless ready indicator are equipped with models without Wireless device as well. Wireless ready indicator lights up when Wireless Switch is turned on, or [Wireless Switch] is set to [Disable] ([Enable] in the default setting) on Setup Utility [Advanced] menu, but Wireless function does not work. (Do not change [Wireless Switch] setting.)

Right side

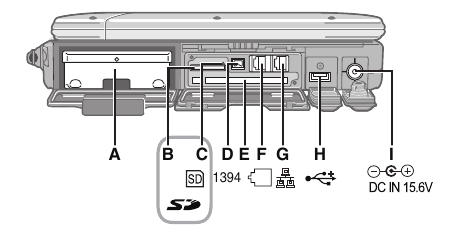

Right side View

Rear side
Rear side View

Bottom

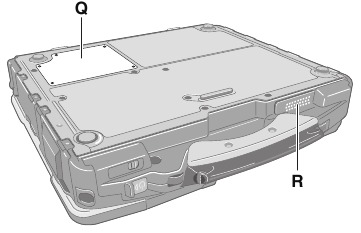

Bottom View

  1. Hard Disk Drive
    Reference Manual "Hard Disk Drive"
  2. SD Memory Card Slot
    Reference Manual "SD Memory Card"
  3. SD Memory Card Indicator (Blinking: During access)
    Reference Manual "SD Memory Card"
  4. IEEE 1394 Interface Connector
    Reference Manual "IEEE 1394 Devices"
  5. Smart Card Slot
    <Only for model with Smart Card slot>
    Reference Manual "Smart Card"
  6. Modem Port
    Reference Manual "Modem"
  7. LAN Port
    Reference Manual "LAN"
  8. USB Port
    Reference Manual "USB Devices"
  9. DC-IN Jack
  10. Security Lock
    A Kensington cable can be connected. For further information, read the manual that comes with the cable.
  11. Ext Antenna Connector
  12. Expansion Bus Connector
    Reference Manual "Port Replicator"
  13. External Display Port
    Reference Manual "External Display"
  14. Headphone Jack
    You can connect headphones or amplifi ed speakers. When they are connected, audio from the internal speakers is not heard.
  15. Microphone Jack
    A condenser microphone can be used. If other types of microphones are used, audio input may not be possible, or malfunctions may occur as a result.
    • When recording in stereo using a stereo microphone:
      Double-click in the notification area, click [Options] - [Properties], and add a check mark for [Recording], click [OK] - [Options] - [Advanced Controls] - [Advanced], remove a check mark for [Mono Microphone], and then click [Close].
    • When using a monaural microphone with a 2-terminal plug: With the settings outlined above, only audio on the left track will be recorded. When monitoring the microphone audio using headphones, sounds on the left track cannot be heard, regardless of the above settings. This is a result of the computer's specifi cations, and is not a malfunction.
  16. Serial Port
  17. RAM Module Slot
    Reference Manual "RAM Module"
  18. Speaker
    Reference Manual "Key Combinations"

To ensure waterproof integrity, close the connector covers completely. When closing the covers, push the four corners and make sure that the cover fi ts in completely. (The illustration is an example.)

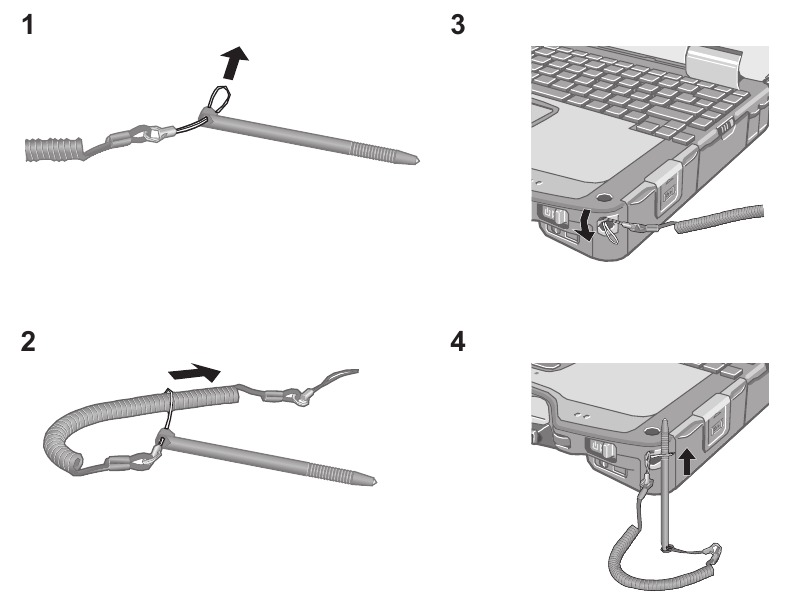

Attaching the stylus to the computer (only for model with touchscreen)
Use the tether to attach the stylus to the computer so you will not lose it. There are holes (A) to attach it.

Attaching the stylus to the computer

First-time Operation

Preparation

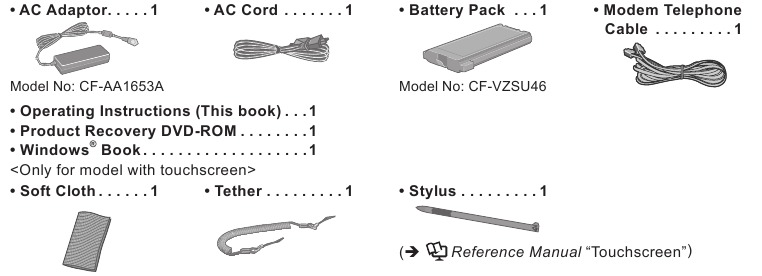

  1. Check and identify the supplied accessories.
    If you do not fi nd the described accessories, contact Panasonic Technical Support.

  2. Read the LIMITED USE LICENSE AGREEMENT before breaking the seal on the computer's packaging.

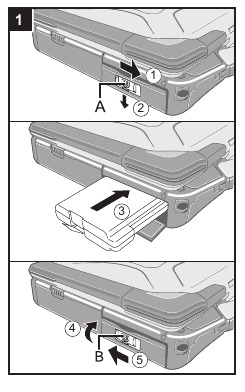

  1. Insert the battery pack.
    1. Slide the latch (A) to the right to unlock the cover.
    2. Slide the latch (A) down, and open the cover.
    3. Insert the battery pack until it securely fi ts the connector.
    4. Close the cover until it clicks.
    5. Slide the latch (B) to the left to lock the cover.
  • Make sure the latch is securely locked. Otherwise the battery pack may fall when you carry the computer.
  • Do not touch the terminals of the battery pack and the computer. Doing so can make the terminals dirty or damaged, and may cause malfunction of the battery pack and the computer.
  1. Connect your computer to a power outlet.
    The battery charging starts automatically.

    • Do not disconnect the AC adaptor and do not switch the wireless switch to on until the fi rst-time operation procedure is completed.
    • When using the computer for the fi rst time, do not connect any peripheral device except the battery pack and AC adaptor.
    • Handling the AC adaptor
      • Problems such as sudden voltage drops may arise during periods of thunder and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.

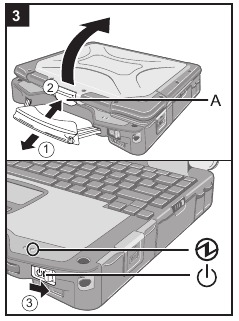

  2. Turn on the computer.
    1. Pull the carrying handle forward.
    2. Push and hold the latch (A), and lift open the display.
    3. Slide and hold the power switch for approximately one second until the power indicator lights.
      • Do not slide the power switch repeatedly.
      • The computer will forcibly be turned off if you slide and hold the power switch for four seconds or longer.
      • Once you turn off the computer, wait for ten seconds or more before you turn on the computer again.
      • Do not perform the following operation until the hard disk drive indicator turns off.
        • Connecting or disconnecting the AC adaptor
        • Sliding the power switch
        • Touching the keyboard, touch pad or touchscreen (only for model with touchscreen)
        • Closing the display
      • When the CPU temperature is high, the computer may not start up to prevent overheating of the CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact Panasonic Technical Support.
  3. Setup Windows.
    1. Follow the on-screen instructions.
      • When you set date/time/time zone and click [Next], the screen may not go to the next step for a few minutes. Do not touch the keyboard or touch pad, and wait until the screen changes.
      • If "An unexpected error has occurred..." (or a similar message) is displayed, click [OK]. This is not a malfunction.
      • Wait until the hard disk drive indicator has turned off.
      • This computer periodically records the management information including the hard disk information such as number of hours powered-on, number of times powered-on, internal temperature, replacement sector. The maximum data volume for each record is 750 byte. These information are only used for estimating the cause when the hard disk goes down by any possibility. They are never sent to outside via network nor used for any other purpose except for the purpose described the above. To disable the function, add the check mark for [Disable the automatic save function for management information history] in [Hard Disk Status] of PC Information Viewer, and click [OK].

Specifications

This page provides the specifi cations for the basic model CF-30FTSAZBM/CF-30F3SAZBM.
The model number is different according to the unit confi guration.

  • To check the model number:
    Check the bottom of the computer or the box the computer came in at the time of purchase.
  • To check CPU speed, memory size and the hard disk drive (HDD) size:
    Run the Setup Utility ( Reference Manual "Setup Utility") and select [Information] menu.
    [CPU Speed]: CPU speed, [System Memory]: Memory size, [Hard Disk]: Hard disk drive size

Main Specifications

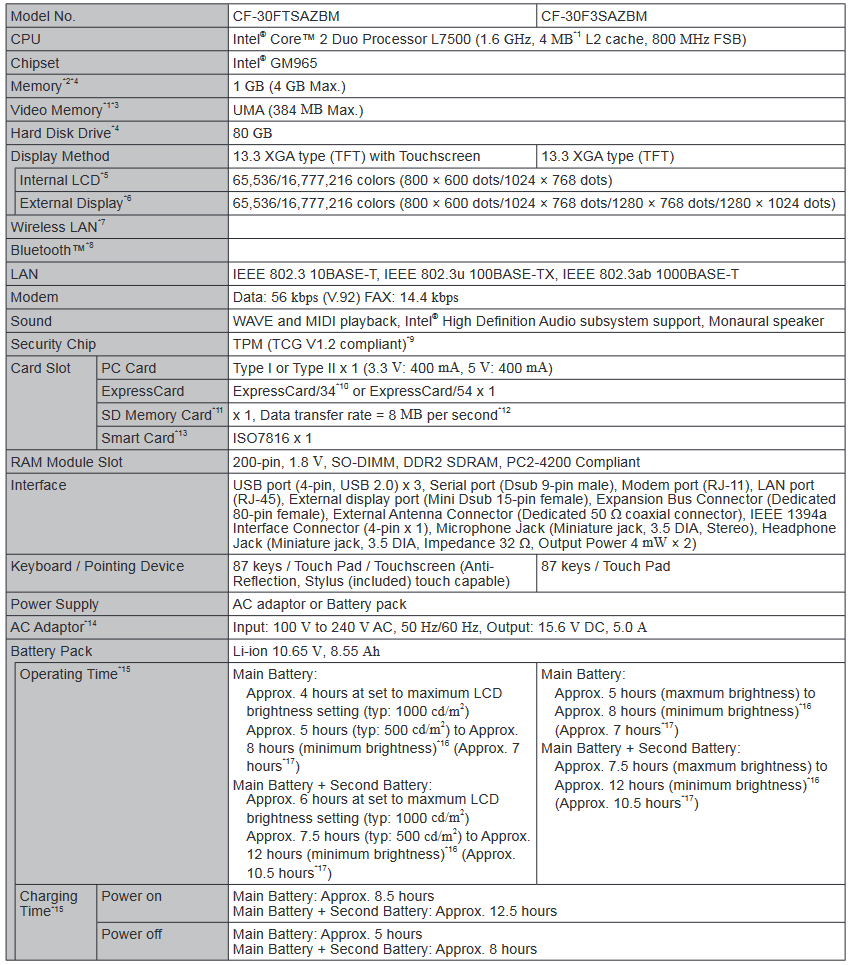

Main Specifications - Table 1

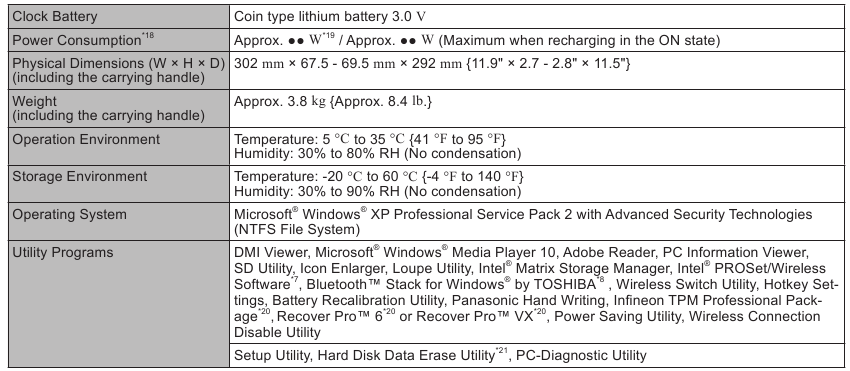

Main Specifications - Table 2

Wireless LAN <Only for model with wireless LAN>

Atheros WLAN (802.11b + g)*22
Data Transfer Rates*23 IEEE802.11b: 11/5.5/2/1 Mbps (automatically switched)
IEEE802.11g: 54/48/36/24/18/12/9/6 Mbps (automatically switched)
Standards Supported IEEE802.11b/IEEE802.11g
Transmission method OFDM system, DSSS system
Wireless Channels Used IEEE802.11b/IEEE802.11g: Channels 1 to 11
RF Frequency Band IEEE802.11b/IEEE802.11g: 2.412-2.462 GHz

BluetoothTM <Only for model with Bluetooth>

Bluetooth Version 2.0 + EDR
Transmission method FHSS system
Wireless Channels Used Channels 1 to 79
RF Frequency Band 2.402-2.48 GHz

*1 1MB = 1,048,576 bytes
*2 You can physically expand the memory upto 4 GB, but the total amount of usable memory available will be less depending on the actual system configuration.
*3 A segment of the main memory is allotted automatically depending on the computer's operating status. The size of the Video Memory cannot be set by the user.
*4 1GB = 1,000,000,000 bytes. Your operating system or some application software will report as fewer GB.
*5 A 16,777,216 color display is achieved by using the dithering function.
*6 Maximum resolution depends on the specifi cations of the external display.
*7 Only for model with wireless LAN
*8 Only for model with Bluetooth
*9 For information on TPM, click [start] - [Run] and input "c:\util\drivers\tpm\README.pdf", and refer to the Installation Manual of "Trusted Platform Module (TPM)".
*10 When using ExpressCard/34, the card slot cover cannot be closed.
*11 Operation has been tested and confi rmed using Panasonic SD Memory Cards with a capacity of up to 2 GB.
The transfer rate using the SD Memory Card slot on this computer is 8 MB per second. (This is a theoretical value, and differs from actual speeds.)
The transfer rate is 8 MB per second even if you use an SD Memory Card that supports high-speed transfer rates.
Operation on other SD equipment is not guaranteed.
This computer supports SDHC Memory Cards (SD Memory Cards with a capacity of 4 GB or more). This computer is not compatible with MultiMediaCards. Do not insert this kind of cards.
*12 Theoretical value and not the actual speed. The transfer rate does not become higher even if you use a card that supports the higher transfer rate.
*13 Only for model with Smart Card slot
*14 <Only for North America>
The AC adaptor is compatible with power sources up to 240 V AC adaptor. The computer is supplied with a 125 V AC compatible AC cord. 20-M-2-1
*15 Varies depending on the usage conditions.
*16 Measured using BatteryMark™ Version 4.0.1
*17 Measured using MobileMark™ 2005 (LCD brightness: 60 cd/m )
*18 Approx. ●● W when the battery pack is fully charged (or not being changed) and the computer is OFF.
*19 Rated power consumption 23-E-1
*20 You need to install to use the feature.
*21 The Product Recovery DVD-ROM is required.
*22 It does not correspond to IEEE802.11.n.
*23 These are speeds specifi ed in IEEE802.11a+b+g standards. Actual speeds may differ.
