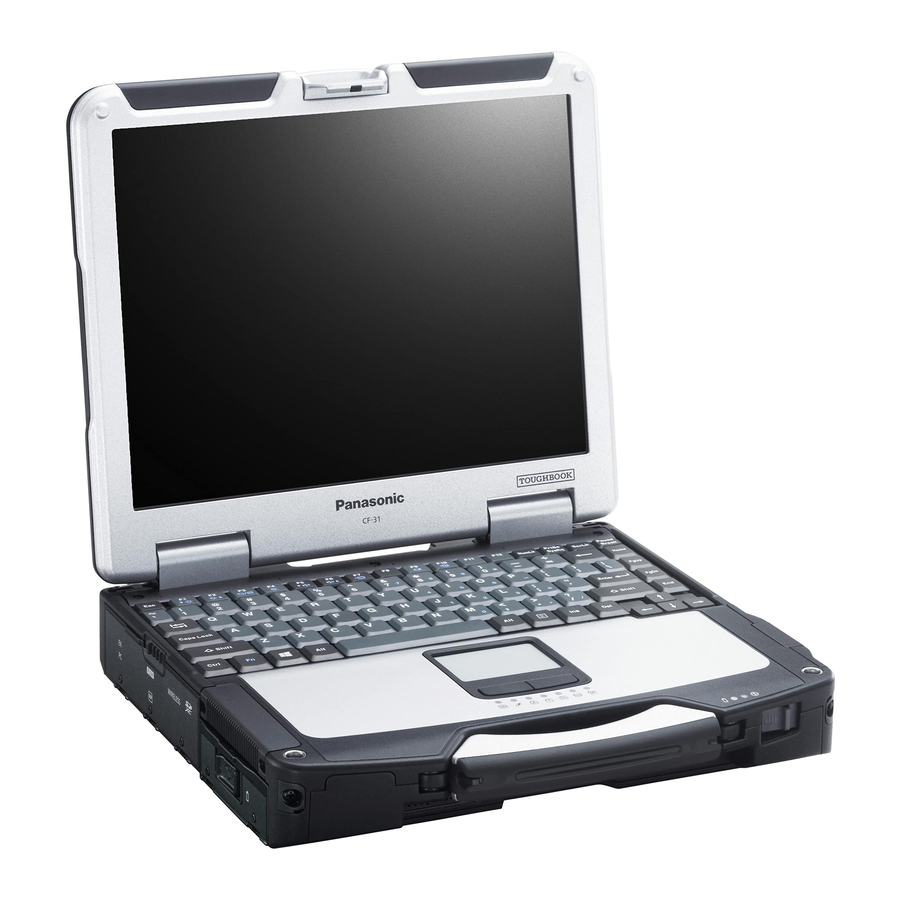

Panasonic CF-31 Series Manual

First-time Operation

Read the downloaded "OPERATING INSTRUCTIONS - Basic Guide" (→ cover) as well which describe the basic operation when using this computer.
To display above, internet connection is needed. If you cannot display above, view the following. (→ Connect to a network "LAN", "Disabling/Enabling Wireless Communication", "Wireless LAN", "Troubleshooting - Wireless Communication")

Inserting the Battery Pack

1. Slide the latch (A) to the right to unlock the cover.
2. Slide the latch (A) down, and open the cover.

3. Insert the battery pack until it securely fi ts the connector.

4. Close the cover until it clicks.
5. Slide the latch (B) to the left to lock the cover.


• Make sure the latch is securely locked. Otherwise the battery pack may fall when you carry the computer.
• Do not touch the terminals of the battery pack and the computer. Doing so can make the terminals dirty or damaged, and may cause malfunction of the battery pack and the computer.

NOTE

• Note that the computer consumes electricity even when the computer power is off. If the battery pack is fully charged, the battery will fully discharge in the following period of time:
  • When power is off: Approx. 10 weeks
  • In sleep: Approx. 4.5 days *1
  • In hibernation: Approx. 10 days
    *1 If "Wake Up from wired LAN" is disabled, the period of time will be longer.
• When the DC plug is not connected to the computer, disconnect the AC cord from your electrical outlet. Power is consumed simply by having the AC adaptor plugged into an electrical outlet.

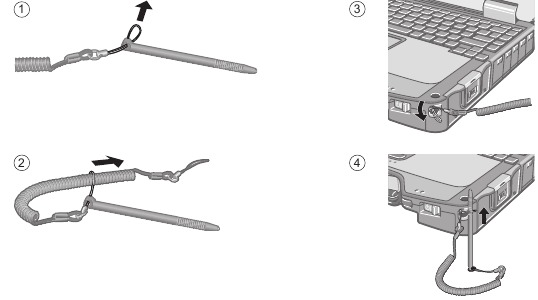

Attaching the stylus to the computer

(only for model with touchscreen)

Use the tether to attach the stylus to the computer so you will not lose it. There are holes (A) to attach it.

Do not pull the tether with excessive force. The stylus may hit the computer, person's body or other objects when released.

Opening the Display

1. Push and hold the latch (A), and lift open the display.


Connect your computer to a power outlet

The battery charging starts automatically.

• Do not disconnect the AC adaptor and do not switch the wireless switch to on until the first-time operation procedure is completed.
• When using the computer for the first time, do not connect any peripheral device except the battery pack and AC adaptor.
• Handling the AC adaptor
  • Problems such as sudden voltage drops may arise during periods of thunder and lightning. Since this could adversely affect your computer, an uninterruptible power source (UPS) is highly recommended unless running from the battery pack alone.

Turn on the computer

1. Slide and hold the power switch until the power indicator lights.

• Do not slide the power switch repeatedly.
• The computer will forcibly be turned off if you slide and hold the power switch for 4 seconds or longer.
• Once you turn off the computer, wait for 10 seconds or more before you turn on the computer again.
• Do not perform the following operation until the drive indicator turns off.
  • Connecting or disconnecting the AC adaptor
  • Sliding the power switch
  • Touching the keyboard, touch pad or touchscreen (only for model with touchscreen)
  • Closing the display
  • Turn on/off the wireless switch
• When the CPU temperature is high, the computer may not start up to prevent overheating of the CPU. Wait until the computer cools down, and then turn the power on again. If the computer does not power on even after cooling down, contact Panasonic Technical Support.
• Any changes from the default setting of the Setup Utility must not be made until the First-time Operation is completed.

Windows 7 <For MUI OS model>

Select language and OS (32-bit or 64-bit).

Carefully choose your language because you cannot change it later. If you set a wrong language, you need to reinstall Windows.

1. Select language and OS (32bit or 64bit) on "Select OS" screen and click [OK].
   The language setting will start by clicking [OK] on the confirmation screen.
   You can return to the "Select OS" screen by clicking [Cancel].
   The language and OS setting will be completed in about 15 minutes.
2. When termination screen is displayed, click [OK] to turn off the computer.

Setup Windows

Windows 8.1
Select language and click [Next].

Windows 7
Turn on the computer.

Follow the on-screen instructions.

• The computer restarts several times. Do not touch the keyboard or touch pad, and wait until the drive indicator has turned off.
• After the computer is turned on, the screen remains black or unchanged for a while. This is not a malfunction. Wait for a moment until the Windows setup screen appears.
• During setup of Windows, use the touch pad and clicking to move the pointer and to click an item.
• Setup of Windows will take approximately Windows 8.1 5 minutes / Windows 7 20 minutes.
  Go to the next step, confirming each message on the display.
• You can set the Wireless Network after the setup of Windows is complete.
  Windows 8.1: If "Get online" is displayed, select "Skip this step".
  Windows 7: "Join a wireless network" screen may not appear.
  Windows 8.1: Verify the time zone, date and time.

• You can change the user name, password, image and security setting after setup of Windows.
• Remember your password. If you forget the password, you cannot use Windows. Creating a password reset disk beforehand is recommended.
• Do not use the following words for user name: CON, PRN, AUX, CLOCK$, NUL, COM1 to COM9, LPT1 to LPT9, @. In particular, if you create a user name (account name) that includes the "@" mark, a password will be requested at the log-on screen, even if no password has been set. If you try to log on without entering a password, "The user name or password is incorrect." may be displayed and you will not be able to Windows 8.1 sign in / Windows 7 log on to Windows.
• Use standard characters as a computer name: numbers 0 through 9, uppercase and lowercase letters from A to Z, and the hyphen (-) character.
  If the error message "The computer name is not valid" appears, check if characters other than the above are not entered. If the error message still remains on the display, set the key entry mode to English ("EN") and enter characters.

<For MUI OS model>

• When setting up the keyboard, choose the appropriate one to your computer.
  Otherwise, input by the keyboard may become unavailable.

Update the on-screen manual

1. Connect a network to the internet.
   For further information, refer to Connect to a network.
2. Update the on-screen manual.
   Double-click [Manual Selector] on the desktop. Follow the on-screen instructions.

Create the recovery disc

A recovery disc allows you to install OS and restore its factory default condition, in case, for example, the recovery partition of the hard disk is damaged. We recommend creating a recovery disc before you begin using the computer.
Refer to Reference Manual "Recovery Disc Creation Utility" about creating the disc.

Safety Precautions

Please read these instructions carefully before using this product, and save this manual for future use.

To reduce the risk of injury, loss of life, electric shock, fire, malfunction, and damage to equipment or property, always observe the following safety precautions.

Explanation of symbol word panels

The following symbol word panels are used to classify and describe the level of hazard, injury, and property damage caused when the denotation is disregarded and improper use is performed.

Denotes a potential hazard that will result in serious injury or death.

Denotes a potential hazard that will result in serious injury or death.

Denotes a hazard that could result in minor injury.

NOTICE
Denotes a hazard that could result in property damage.

The following symbols are used to classify and describe the type of instructions to be observed.

This symbol is used to alert users to a specific operating procedure that must not be performed.

This symbol is used to alert users to a specific operating procedure that must be followed in order to operate the unit safety.

Electrolyte leakage, generation of heat, ignition or rupture of the Battery Pack may result.

• Do Not Throw the Battery Pack into a Fire or Expose It to Excessive Heat
• Do Not Deform, Disassemble, or Modify the Battery Pack
• Do Not Short the Positive (+) and Negative (-) Contacts
  • Do not place the battery pack together with articles such as necklaces or hairpins when carrying or storing.
• Do Not Apply Shocks to the Product by Dropping It, Applying Strong Pressure to It, etc.
  • If this product is subjected to a strong impact, damaged or deformed, stop using it immediately.
• Do Not Charge the Battery Using Methods Other Than Those Specified
• Than Those Specified Product
  • The battery pack is rechargeable and was intended for the specified product.
• Do Not Use This Product with a Battery Pack Other Than the One Specified
• Use only the specified battery pack with your product.

• Avoid Extreme Heat (Near the Fire, in Direct Sunlight, for Example)
• When the Battery Pack Has Deteriorated, Replace It With a New One
  • Do not continue to use a damaged battery pack.

Fire or electric shock may result.

• Do Not Do Anything That May Damage the AC Cord, the AC Plug, or the AC Adaptor
  Do not damage or modify the cord, place it near hot tools, bend, twist, or pull it forcefully, place heavy objects on it, or bundle it tightly.
  • Do not continue to use a damaged AC cord, AC plug and AC adaptor.
    • Contact your technical support office for repair.
• Do Not Connect the AC Adaptor to a Power Source Other Than a Standard Household AC Outlet
  • Connecting to a DC/AC converter (inverter) may damage the AC adaptor. On an airplane, only connect the AC adaptor/charger to an AC outlet specifically approved for such use.
• Do Not Pull or Insert the AC Plug If Your Hands Are Wet
• Do Not Disassemble This Product
• Do Not Touch This Product In a Thunderstorm If Connected with the AC Cable or Any Other Cables
• Do Not Place Containers of Liquid or Metal Objects on Top of This Product
  • If foreign matter has found its way inside, immediately turn the power off and unplug the AC plug (and remove the battery pack). Then contact your technical support office.
• If a Malfunction or Trouble Occurs, Immediately Stop Use
• If the Following Malfunction Occurs, Immediately Unplug the AC Plug (and the Battery Pack)
  • This product is damaged
  • Foreign object inside this product
  • Smoke emitted
  • Unusual smell emitted
  • Unusually hot
    • After the above procedure, contact your technical support office for repair.
• Clean Dust and Other Debris of the AC Plug Regularly
  • If dust or other debris accumulates on the plug, humidity, etc. may cause a defect in the insulation.
• Insert the AC Plug Completely
  • Do not use a damaged plug or loose AC outlet.
• Close the Connector Cover Tightly When Using This Product Where Is a Lot of Water, Moisture, Steam, Dust, Oily Vapors, etc.
  • If foreign matter has found its way inside, immediately turn the power off and unplug the AC cord, and then remove the battery pack. Then contact your technical support office.

Burns or low-temperature burns may result.

• Do Not Use This Product in Close Contact With Your Body For a Long Period of Time
  • Do not use this product with its heat-emitting parts in close contact with your body for long periods of time.
    • Low-temperature burns may result.
• Do Not Expose Yourself or Other Persons to the Hot Wind from the Ventilation Hole (Exhaust) For a Long Period of Time.
  • Covering the ventilation hole (exhaust) with your hand or other object can cause heat to build up inside, possibly resulting in burns.
• Do Not Touch The Surface of The AC Adaptor Continuously While Using/Charging
  • Burns may result.

Detrimental health effects on your body may result.

• Do Not Turn the Volume Up To Loud When Using Headphones
  • Listening at high volumes that overstimulate the ear for long periods of time may result in loss of hearing.

• Do Not Move This Product While the AC Plug Is Connected
  • If the AC cord is damaged, unplug the AC plug immediately.
• Do Not Connect a Telephone Line, or a Network Cable Other Than the One specified, Into the LAN Port
  • Do not connect to a network such as the ones listed below.
    • Networks other than 1000BASE-T, 100BASE-TX or 10BASE-T
    • Phone lines (IP phone (Internet Protocol Telephone), Telephone lines, internal phone lines (on-premise switches), digital public phones, etc.)
• Do Not Subject the AC Adaptor To Any Strong Impact
  • Do not continue to use the AC adaptor after a strong impact such as being dropped.
  • Contact your technical support office for repair.
• Do Not Leave This Product in High Temperature Environment for a Long Period of Time
  • Leaving this product where it will be exposed to extremely high temperatures such as near fire or in direct sunlight may deform the cabinet and/or cause trouble in the internal parts.
• Do Not Block the Ventilation Hole (Exhaust/Intake)
  • Do not use this product wrapped in cloth or on top of bedding or a blanket.

Fire or electric shock may result.

• Hold the Plug When Unplugging the AC Plug
• Use Only the specified AC Adaptor With This Product
  • Do not use an AC adaptor other than the one supplied (supplied with the unit or one sold separately as an accessory).
• Use the Modem With a Regular Telephone Line
  • Do not connect to the following lines.
    • An internal phone line (on-premise switches) of a company or business office
    • A digital public phone
    • Line in a country or area not supported by this product.

This product may fall over or drop, resulting in an injury.

• Do Not Place This Product on Unstable Surfaces
• Avoid Stacking

Detrimental health effects on your body may result.

• Take a Break Of 10-15 Minutes Every Hour
  • Using this product for long periods of time may have detrimental health effects on the eyes or hands.

Burns, low-temperature burns, or frostbite may result.

• Do Not Expose the Skin To This Product When Using the Product In A Hot Or Cold Environment.
  • When it is necessary to expose the skin to this product such as to scan a fingerprint, perform the operation in the shortest time possible.

NOTICE

• Do not place the computer near a television or radio receiver.
• Keep the computer away from magnets. Data stored on the hard disk may be lost.
• This computer is not intended for the display of images for use in medical diagnosis.
• This computer is not intended for a use with connection of medical equipment for the purpose of medical diagnosis.
• Panasonic shall not be liable for loss of data or other incidental or consequential damages resulting from the use of this product.
• Do not touch the terminals on the battery pack. The battery pack may no longer function properly if the contacts are dirty or damaged.
• Do not expose the battery pack to water, or allow it to become wet.
• If the battery pack will not be used for a long period of time (a month or more), charge or discharge (use) the battery pack until the remaining battery level becomes 30% to 40% and store it in a cool, dry place.
• This computer prevents overcharging of the battery by recharging only when the remaining power is less than approx. 95% of capacity.
• The battery pack is not charged when the computer is first purchased. Be sure to charge it before using it for the first time. When the AC adaptor is connected to the computer, charging begins automatically.
• Should the battery leak and the fluid get into your eyes, do not rub your eyes. Immediately flush your eyes with clear water and see a doctor for medical treatment as soon as possible.

THIS PRODUCT IS NOT INTENDED FOR USE AS, OR AS PART OF, NUCLEAR EQUIPMENT/SYSTEMS, AIR TRAFFIC CONTROL EQUIPMENT/SYSTEMS, AIRCRAFT COCKPIT EQUIPMENT/SYSTEMS, MEDICAL DEVICES OR ACCESSORIES^*1, LIFE SUPPORT SYSTEMS OR OTHER EQUIPMENTS/DEVICES/SYSTEMS THAT ARE INVOLVED WITH ENSURING HUMAN LIFE OR SAFETY. PANASONIC WILL NOT BE RESPONSIBLE FOR ANY LIABILITY RESULTING FROM THE USE OF THIS PRODUCT ARISING OUT OF THE FOREGOING USES.

^*1 As defined by the European Medical Device Directive (MDD) 93/42/EEC.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio Frequency Emission, etc) requirements related to aviation standards and medical equipment standards that differ from the specifications of our COTS (Commercial-Off-The-Shelf) products.
Panasonic cannot guarantee any specifications, technologies, reliability, safety (e.g. Flammability/Smoke/Toxicity/Radio Frequency Emission, etc) requirements related to aviation standards that exceed the specifications of our COTS (Commercial-Off-The-Shelf) products.

This computer is not intended for use in medical equipment including life-support systems, air traffic control systems, or other equipment, devices or systems that are involved with ensuring human life or safety. Panasonic cannot be held responsible in any way for any damages or loss resulting from the use of this unit in these types of equipment, devices or systems, etc. The CF-31 was developed based on thorough research into the real-world portable computing environments. Exhaustive pursuit of usability and reliability under harsh conditions led to innovations such has the magnesium alloy exterior, vibration damped hard disk drive and floppy disk drive, flexible internal connections. The CF-31's outstanding engineering has been tested using the strict MIL-STD- 810F (for vibration and shock) and IP (for dust and water) based procedures.
As with any portable computer device precautions should be taken to avoid any damage. The following usage and handling procedures are recommended.

Before putting the computer away, be sure to wipe off any moisture.

NOTE

• The battery pack may become warm during recharging or normal use. This is completely normal.
• Recharging will not commence if internal temperature of the battery pack is outside of the allowable temperature range (0°C to 50°C). (Reference Manual "Battery Power") Once the allowable range requirement is satisfied, charging begins automatically. Note that the recharging time varies based on the usage conditions. (Recharging takes longer than usual when the temperature is 10°C or below.)
• If the temperature is low, the operating time is shortened. Only use the computer within the allowable temperature range.
• This computer has a high temperature mode function that prevents the degradation of the battery in high temperature environments. (Reference Manual "Battery Power") A level corresponding to a 100% charge for high temperature mode is approximately equivalent to an 80% charge level for normal temperature mode.
• The battery pack is a consumable item. If the amount of time the computer can be run by using a particular battery pack becomes dramatically shorter and repeated recharging does not restore its performance, the battery pack should be replaced with a new one.
• When transporting a spare battery inside a package, brief-case, etc., it is recommended that it be placed in a plastic bag so that its contacts are protected.
• Always power off the computer when it is not in use. Leaving the computer on when the AC adaptor is not connected will exhaust the remaining battery capacity.

Documents / Resources

Download manual

Here you can download full pdf version of manual, it may contain additional safety instructions, warranty information, FCC rules, etc.

Download Panasonic CF-31 Series Manual
