George Foreman GFKTBBQ1801B Manual

George Foreman GFKTBBQ1801B Manual

Kettle bbq
Hide thumbs Also See for GFKTBBQ1801B:
Table of Contents

Advertisement

Quick Links

Download this manual

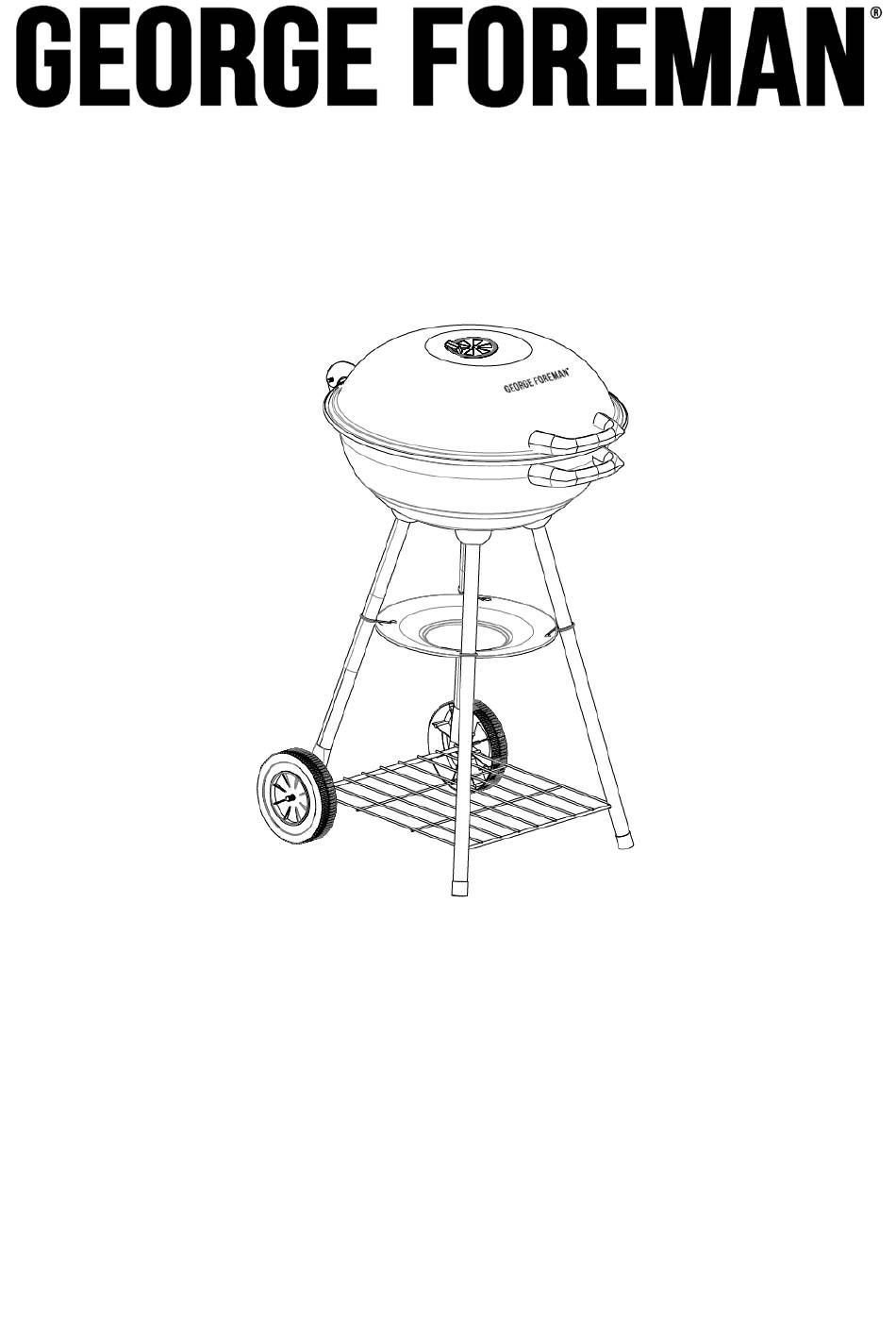

KETTLE BBQ
GFKTBBQ1801B
WARNING: CARBON MONOXIDE HAZARD
Burning charcoal indoors can kill you. It gives off carbon
monoxide which has no odour. NEVER burn charcoal in enclosed
spaces e.g. homes, vehicles or tents.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
For Customer Services and Spare Parts please call 0345 209 7461
Or visit us at bbqs.georgeforeman.co.uk

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the GFKTBBQ1801B and is the answer not in the manual?

Questions and answers

Related Manuals for George Foreman GFKTBBQ1801B

Summary of Contents for George Foreman GFKTBBQ1801B

  • Page 1 KETTLE BBQ GFKTBBQ1801B WARNING: CARBON MONOXIDE HAZARD Burning charcoal indoors can kill you. It gives off carbon monoxide which has no odour. NEVER burn charcoal in enclosed spaces e.g. homes, vehicles or tents. PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE For Customer Services and Spare Parts please call 0345 209 7461...

  • Page 2: Table Of Contents

    CONTENTS Page(s) Safety instructions BBQ Feature Diagram BBQ Parts List BBQ Assembly 7-14 Lighting your BBQ Food Safety Cleaning and care Guarantee and customer services Notes GFKTBBQ1801B...

  • Page 3: Safety Instructions

    WARNING: Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality. Carbon Monoxide Do Not Use Do Not Use Do Not Use in Use in Open Poisoning Hazard in Motor Indoors Tents Spaces Homes GFKTBBQ1801B...

  • Page 4: Bbq Feature Diagram

    BBQ FEATURE DIAGRAM You will need: • Adjustable spanner • Crosshead screwdriver GFKTBBQ1801B...

  • Page 5: Bbq Parts List

    BBQ PARTS LIST PART DESCRIPTION Lid air vent Handles Lid support Warming rack Cooking grill Charcoal grill Fire bowl Axel Fire bowl support Leg cups Ash lid Wheel legs Long legs Ash plate support Ash plate Shelf Wheels GFKTBBQ1801B...
  • Page 6 Washer Ø6 x 16mm Wing Nut Bolt* M6 x 30mm Washer* Ø6 x 20mm Capped Nut Fibre Washer Ø6 x 18mm Capped Nut Washer Ø4 x 10mm *Parts G & H are pre-assembled on the legs (13 & 14). GFKTBBQ1801B...

  • Page 7: Bbq Assembly

    • Attach the lid air vent (1) onto the lid (2) using the “A”, “D” and “B” bolts, washers and nuts. • Ensure the bolt is placed on the outside of the fire bowl and the washer and nut are placed on the inside of the lid. GFKTBBQ1801B...
  • Page 8 • Attach the ash lid (12) to the bottom of the fire bowl (8) using the “A”, “D” and “B” Bolts, Washers and Nuts. • Ensure the bolts are placed on the outside of the fire bowl and the washers and nuts are placed on the inside of the fire bowl. GFKTBBQ1801B...

  • Page 9: Step 3 - Assembling The Legs

    • Attach the leg cups (11), long legs (14) and wheel legs (13) to the fire bowl (8) using the “G” and “H” Bolts and Washers. IMPORTANT: Ensure the long legs (14) are attached to the handle side of the body. GFKTBBQ1801B...
  • Page 10 BBQ ASSEMBLY STEP 4 – Adding the shelf • Attach the shelf (17) to the legs • Attach the wheels (18), the shelf (17) and wheel legs (13) together by using 2 of the ‘’I’’ nuts. GFKTBBQ1801B...
  • Page 11 BBQ ASSEMBLY STEP 5 – Attaching the lid • Attach the lid (2) onto the fire bowl (8) using 2 of the “J” capped nuts and axel ‘’9’’. GFKTBBQ1801B...
  • Page 12 STEP 6 – Adding the warming rack and ash plate • Attach the warming rack (5) to the lid (2) and the fire bowl (8) using “L” and “M” nuts and washers. • Attach the ash plate (16) to the legs. GFKTBBQ1801B...
  • Page 13 BBQ ASSEMBLY STEP 7 – Attaching the grill plates • Attach the cooking grill (6) and charcoal grill (7) in the fire bowl (8). GFKTBBQ1801B...
  • Page 14 BBQ ASSEMBLY STEP 8 – Completed BBQ GFKTBBQ1801B...

  • Page 15: Lighting Your Bbq

    30 minutes before cooking. WARNING: Accessible parts will be hot - wear oven gloves when touching the barbecue and adjusting the air vent. WARNING: Do not extinguish with water as this may damage the barbecue. GFKTBBQ1801B...

  • Page 16: Food Safety

    • To check whether meat, particularly poultry, is cooked, pierce the flesh with a skewer or fork; the juices should run clear. Ensure the product is piping hot throughout. GFKTBBQ1801B...

  • Page 17: Cleaning And Care

    The fire bowl, cooking grill and charcoal pan can be cleaned using barbecue cleaning fluid. Avoid using wire wool and brushes as these may scratch the surface. • When not in use this barbecue should be stored in a dry location or under a waterproof cover. GFKTBBQ1801B...

  • Page 18: Guarantee And Customer Services

    It must be used for domestic purposes only and for its intended use. • This guarantee does not cover wear and tear, damage, misuse or consumable parts. This does not affect your statutory rights. For Customer Services & Spare Parts please call 0345 209 7461 Or visit us at bbqs.georgeforeman.co.uk GFKTBBQ1801B...

  • Page 19: Notes

    NOTES GFKTBBQ1801B...
  • Page 20 KETTLE BBQ GFKTBBQ1801B Made under license by G2S Limited, Wigan, WN2 4AY/G2S (NI) Ltd, Belfast, BT5 5AD. George Foreman is the registered trademark of Spectrum Brands (U.K.) Ltd. Revision 2.4...
