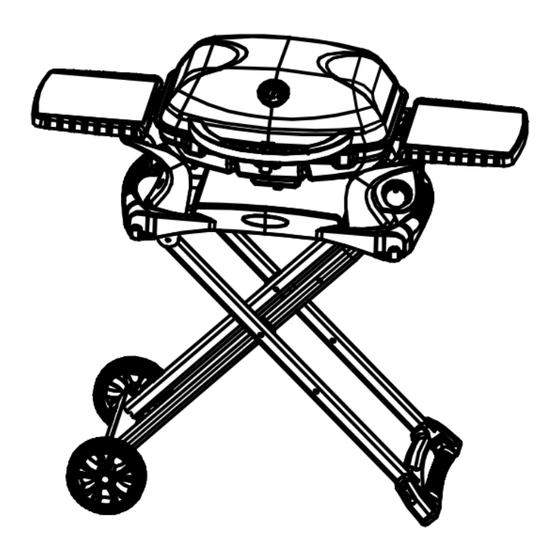

1 BURNER GAS BBQ
WITH TROLLEY

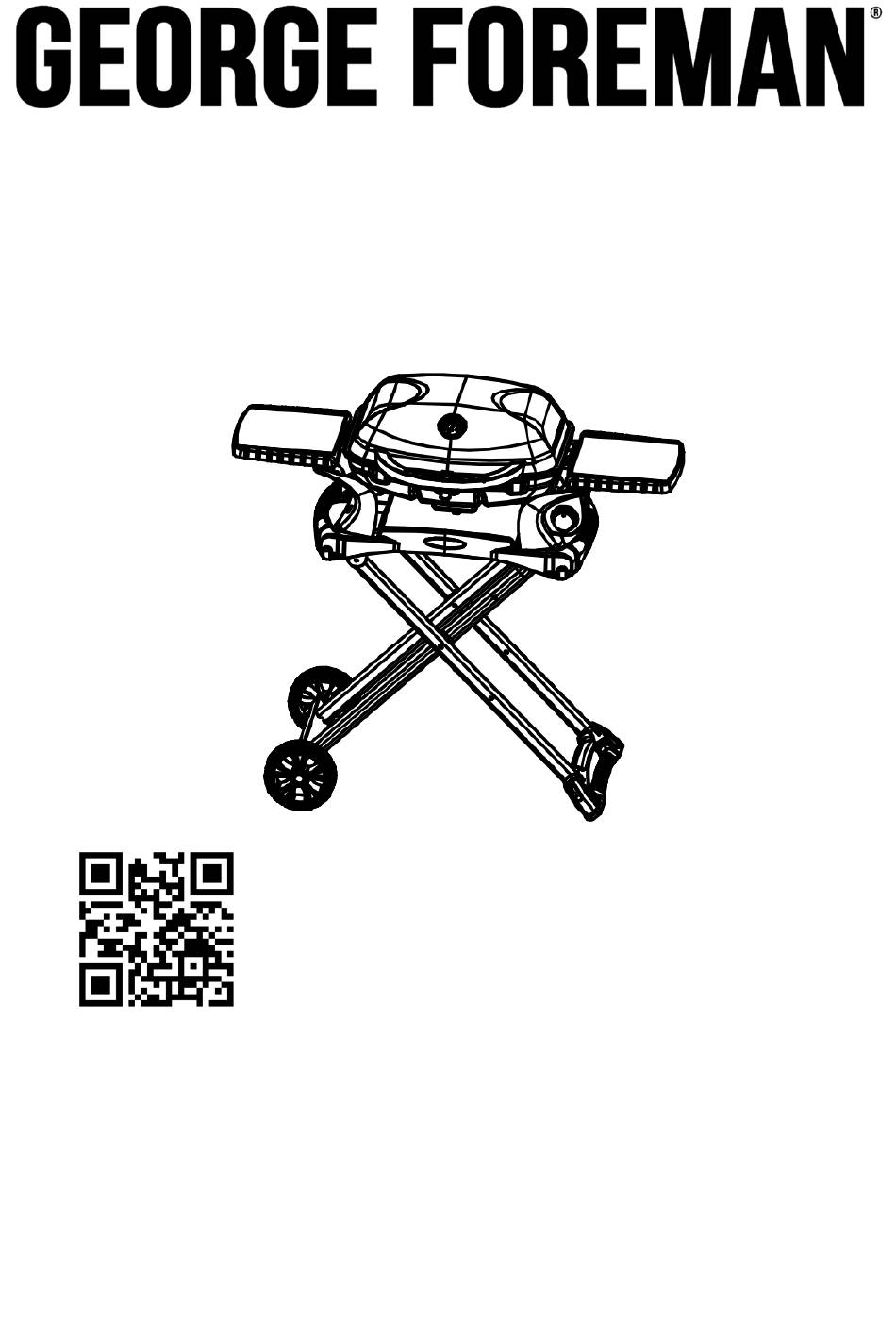

GFSBBQ1TR
Please scan the QR code for step by step video assembly
instructions. Alternatively, you can visit:
bbqs.georgeforeman.co.uk. From here, please select the
product that you are looking to build and view the 'How
To' video located at the bottom of the page.
WARNING: PLEASE ENSURE YOU HAVE READ
THROUGH THE SAFETY AND OPERATING
INSTRUCTIONS BEFORE USE.
PLEASE RETAIN INSTRUCTIONS FOR FUTURE REFERENCE
For Customer Services and Spare Parts please call 0345 209 7461
Or visit us at bbqs.georgeforeman.co.uk
Advertisement
Table of Contents
Related Manuals for George Foreman GFSBBQ1TR
Summary of Contents for George Foreman GFSBBQ1TR
- Page 1 1 BURNER GAS BBQ WITH TROLLEY GFSBBQ1TR Please scan the QR code for step by step video assembly instructions. Alternatively, you can visit: bbqs.georgeforeman.co.uk. From here, please select the product that you are looking to build and view the ‘How To’...
-
Page 2: Table Of Contents
Page(s) Safety Instructions BBQ Feature Diagram & Parts List BBQ Assembly 7-13 Connecting your Gas Cylinder Disconnecting your Gas cylinder Lighting your BBQ Food Safety Tips for use and Storage Cleaning Instructions Troubleshooting 20-21 Guarantee and Customer Services Notes GFSBBQ1TR... -
Page 3: Safety Instructions
• Never mount the gas cylinder under the appliance or near any parts of the appliance which becomes hot as this could result in serious injury. • Use protective heat resistant gloves when handling particularly hot components. GFSBBQ1TR... - Page 4 WARNING: Do not use spirit or petrol for lighting or re-lighting! Use only firelighters complying to EN 1860-3! • WARNING: Keep children and pets away. • WARNING: Do not use the barbecue in a confined and/or habitable space e.g. houses, tents, caravans, motor homes, boats. Danger of carbon monoxide poisoning fatality. GFSBBQ1TR...
- Page 5 Technical data Carbon Monoxide Do not use in Do Not Use Do Not Use in Use in open Poisoning Hazard Motor Homes Indoors Tents Spaces GFSBBQ1TR...
-
Page 6: Bbq Feature Diagram & Parts List
DESCRIPTION Thermostat Back Plate Handle Hinge Grill Tray – Right Grill Tray – Left Base and Stand Grease Tray Side Table Wheel Axle PART IMAGE SIZE M4 - 10 Ø20 You will need: • Adjustable spanner • Crosshead screwdriver GFSBBQ1TR... -
Page 7: Bbq Assembly
BBQ ASSEMBLY STEP 1 – Opening the stand • Turn the base and stand (8) over so that the legs are visible. • Open up the latch securing the legs as shown in the diagram below. GFSBBQ1TR... - Page 8 BBQ ASSEMBLY STEP 2 – Securing the stand • Open up the legs on the base and stand (8). • Secure by placing the top of the right leg into the bracket, as shown in the diagram below. GFSBBQ1TR...
- Page 9 1 piece of the “C” clip as shown in the diagram below. • To complete the installation of the wheels, on each end of the axle (12), place 1 each of the “D” wheel caps, as shown in the diagram below. 1 PC 2 PCS GFSBBQ1TR...
- Page 10 Ensure the hinge is attached the correct way up, which can be found in the diagram below. • Ensure the hinge is placed on the outside of the lid, and the back plates and bolts are placed on the inside of the lid. 4 PCS 2 PCS GFSBBQ1TR...
- Page 11 Ensure the Hinge (5) is attached to the outside of the Base (8). • Ensure the hinge is placed on the outside of the base, and the bolts are placed on the inside of the base. 2 PCS GFSBBQ1TR...
- Page 12 Ensure that the thermostat is correctly aligned, then use the wing nut supplied with the thermostat to secure it in place on the Lid (2), as shown below. • Place the Left Grill Tray (7) and Right Grill Tray (6) in position, as shown in the diagram below. GFSBBQ1TR...
- Page 13 Slide the Grease Tray (9) into the grease tray supports, which are located on the underside of the BBQ. • Attach the Side Tables (10) onto the Base and Stand (8), by sliding them into the appropriate slots, as shown into the diagram below. Your BBQ is now assembled. GFSBBQ1TR...
-
Page 14: Connecting Your Gas Cylinder
7. Once the gas cylinder is connected to the appliance, you can then start the flow of gas by turning the small lever on the regulator from its closed position (horizontal) to its open position (vertical). WARNING: Always test gas line for leaks at connector with soapy water around all connections. GFSBBQ1TR... -
Page 15: Disconnecting Your Gas Cylinder
2. Once the gas supply has been turned off, you then need to remove the regulator from the gas cylinder. 3. To remove the regulator, push in the button release (located below the small lever on the regulator) and lift away from the gas cylinder. GFSBBQ1TR... -
Page 16: Lighting Your Bbq
WARNING: If the burner goes out while the grill is in operation, turn the control dial to the “OFF” position. Open the lid and wait 5 minutes before attempting to relight the BBQ. GFSBBQ1TR... -
Page 17: Food Safety
• To check whether meat, particularly poultry, is cooked, pierce the flesh with a skewer or fork; the juices should run clear. Ensure the product is piping hot throughout. GFSBBQ1TR... -
Page 18: Tips For Use And Storage
After use and once the BBQ has cooled down we recommend that your BBQ is stored indoors, or in a garage or shed. When using your BBQ after a period of storage, always check for gas leaks and any obstructions in the burner before using. GFSBBQ1TR... -
Page 19: Cleaning Instructions
Ensure the venturi pipes (A) on the burner (B) are clean, and ensure there are no obstructions. We recommend that you use a pipe cleaner to clean the venturi pipe area. • Any modifications of this appliance may be dangerous and are not permitted. GFSBBQ1TR... -
Page 20: Troubleshooting
4. Coupling nut and LP tank valve not and care fully connected 3.Make sure LP tank is not empty. If LP tank is not empty, refer to “sudden drop in gas flow” 4. Turn the coupling nut approximately one-half to three-quarters GFSBBQ1TR... - Page 21 Flare-up 1. Grease build-up 1. Clean burners and inside of grill/ 2. Excessive fat in meat firebox 3. Excessive cooking temperature 2. Trim fat from meat before grilling 3. Adjust temperature to a lower heat GFSBBQ1TR...
-
Page 22: Guarantee And Customer Services
It must be used for domestic purposes only and for its intended use. • This guarantee does not cover wear and tear, damage, misuse or consumable parts. This does not affect your statutory rights. For Customer Services & Spare Parts please call 0345 209 7461 Or visit us at bbqs.georgeforeman.co.uk GFSBBQ1TR... -
Page 23: Notes
NOTES GFSBBQ1TR... - Page 24 Made by Product Care Trading Limited under license from Spectrum Brands (UK) Limited. Product Care Trading Limited, Wigan, WN2 4AY/PCT (NI) Ltd, Belfast, BT5 5AD. George Foreman is the registered trademark of Spectrum Brands (UK) Ltd. The ‘wheelie bin’ symbol is known as the 'Crossed-out wheelie bin Symbol'.
