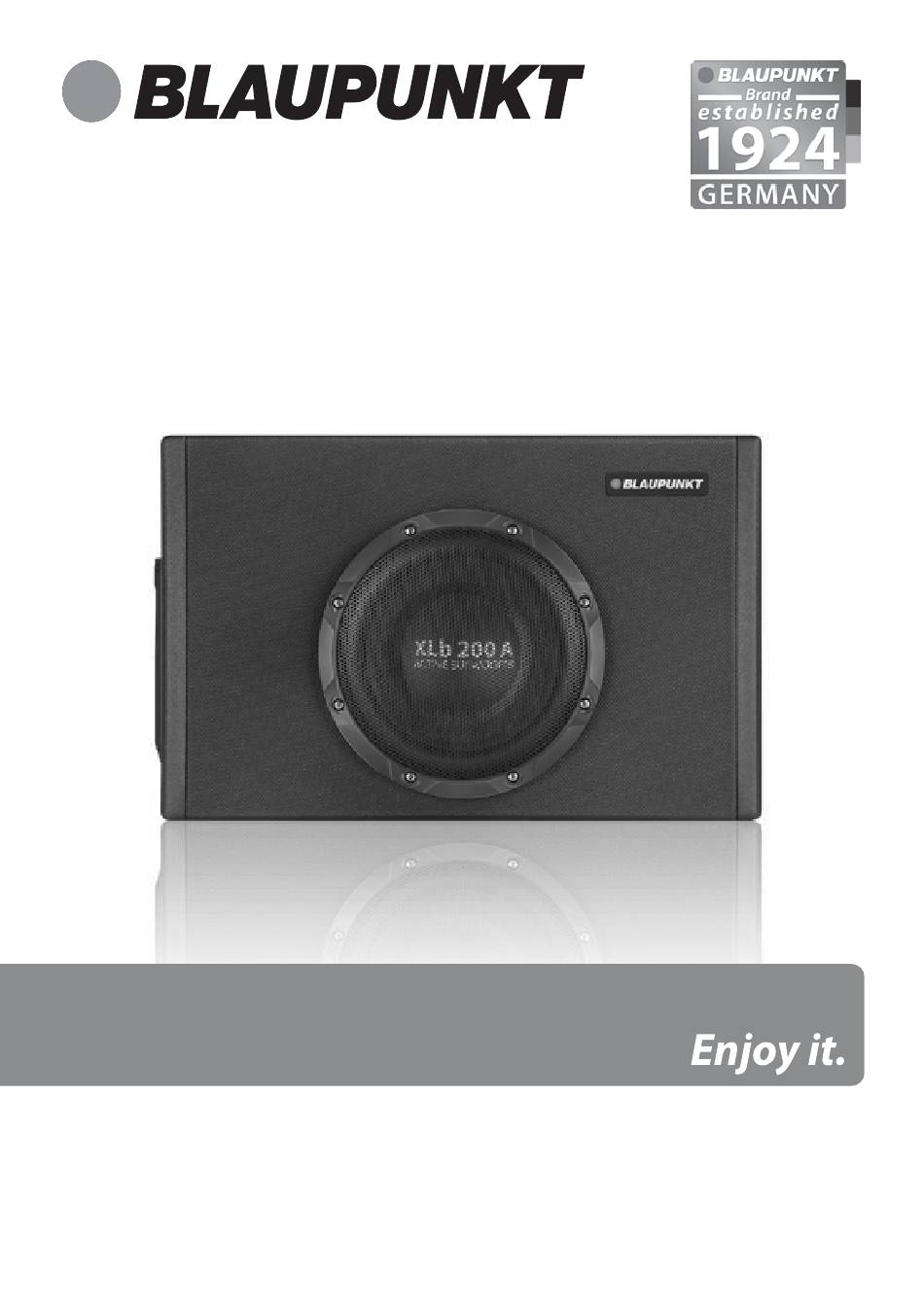

ACTIVE SUBWOOFER
XLb 200 A
Operating and Installation Instructions

Advertisement

loading
Need help?

Need help?

Do you have a question about the XLb 200 A and is the answer not in the manual?

Questions and answers

Related Manuals for Blaupunkt XLb 200 A

Summary of Contents for Blaupunkt XLb 200 A

  • Page 1 ACTIVE SUBWOOFER XLb 200 A Operating and Installation Instructions...
  • Page 2 Disclaimer Ensure cross section of the cable is no less • than 2.5mm if the positive and negative In no event shall Blaupunkt be liable for any cables are too long. direct, indirect, punitive, incidental, special • Incorrect installation may result in malfunc- consequential damages, to property or life, tion of the device or the car sound system.
  • Page 3 FUNCTIONS CONTROLLING DIAGRAM Phase (0 ~ 180 ) Gain Control (Min ~ Max) Variable Crossover (50Hz~ 200Hz) Bass Boost (0 ~ +12dB) Power/ Protect Light Power Connector Input Level (Low ~ High) Auto Turn On (+12V REM/ DC O set/ Audio) Audio Input Remote Control Input Fuse...
  • Page 4 SPECIFICATION Subwoofer • Max. Output Power : 500W • Ampli er Technology : Class D • Speaker Size : 8.0” • Normal Output Power (RMS) : 300W • Cone Composition : Fiberglass, Paper Cone, Rubber • Max. Output Power : 500W Surround •...

  • Page 5: Wiring Diagram

    WIRING DIAGRAM Output Remote Control Input FUSE Chasis Ground...

  • Page 6: Installation

    INSTALLATION Select an ideal installation location to install the subwoofer. It can be installed by using magic sticker or iron sheets. Magic Sticker Place the magic sticker on the bottom of the subwoofer and x it on the oor. Iron Sheets Fix the attached iron sheets to the bottom of the subwoofer by using (4x25mm) screws and (3x10mm) screws.

  • Page 7: Troubleshooting

    TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problem Solution Ampli er power Examine if the ground connection is intact. up failure Examine if remote input has at least 5V DC.
  • Page 8 Blaupunkt Car Entertainment - Asia Paci c Competence Centre 1 113 22 029 59 02...
