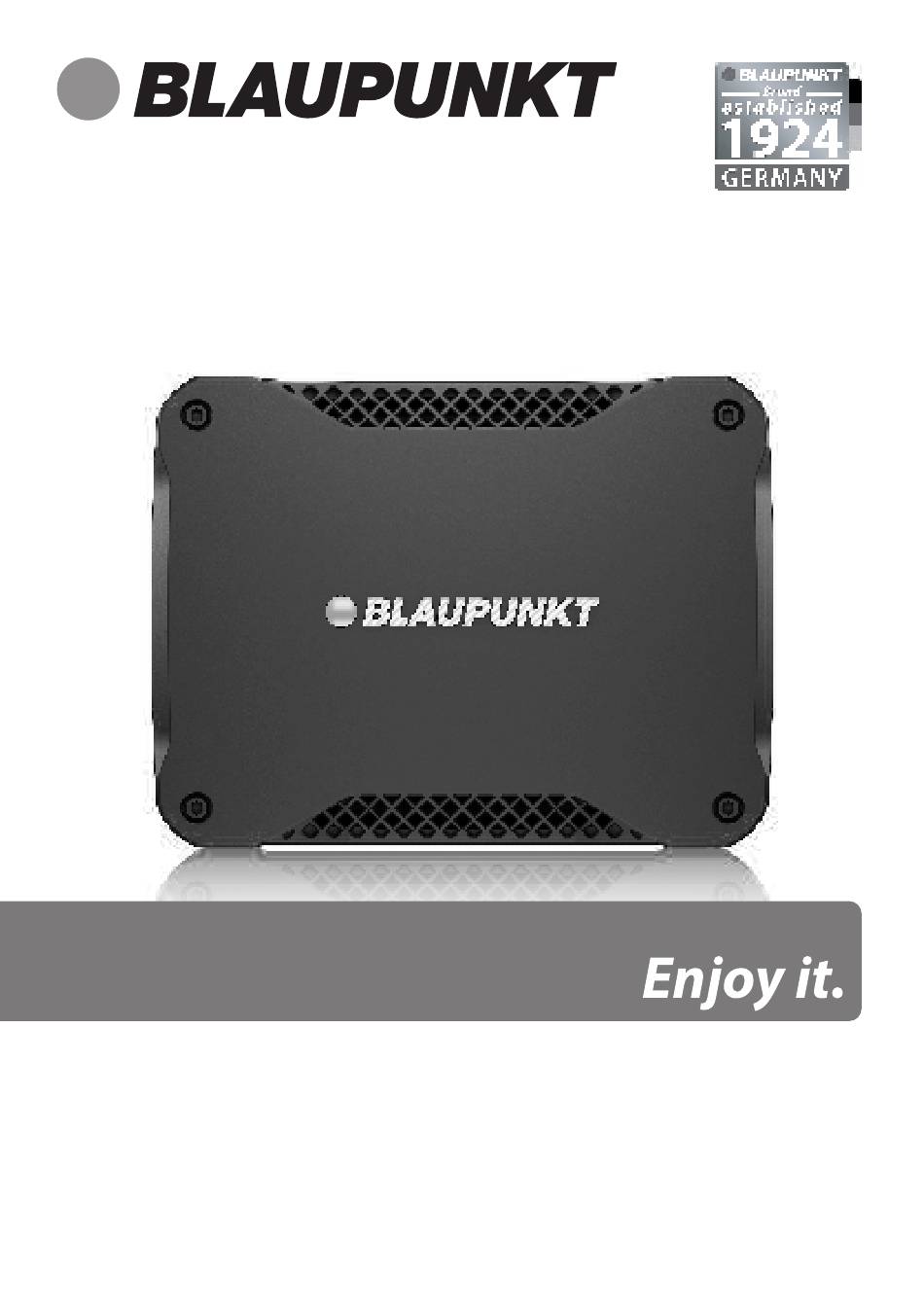

- Page 1 ACTIVE SUBWOOFER XLf 185 A Operating and Installation Instructions...
- Page 2 The device will also auto- matically turn o if audio signal is received. Disclaimer In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential damages to property or life and whatsoever arising out of or connected with the use or misuse of our products.
-
Page 3: Installation
FUNCTIONS CONTROLLING DIAGRAM Power / Speaker Input RCA Input (CH1/ CH2) Remote Control Input Phase (0º~ 180º) Auto Power On (On/O ) Input Gain (200mV ~ 6V) Bass Boost (0 ~ +18dB) Low Pass (50Hz ~ 150Hz) Power LED Light 10. -
Page 4: Installation Position
INSTALLATION POSITION Down Firing Position Side Firing Position Up Firing Position... -
Page 5: Specification
SPECIFICATION 345mm 260mm 75mm Subwoofer • Signal/Noise Ratio : 91dB • Speaker Size : 8.0” • Output Impedance : 2 ohms • Cone Composition : Aluminium • Frequency Response : 30Hz-150Hz • Magnet Type : Ferrite • Low Pass Filter (LPF) : 50Hz-150Hz •... -
Page 6: Wiring Diagram
WIRING DIAGRAM Use the supplied cable and wire harness to connect the outputs correctly by referring to Diagram 1 & Diagram Diagram 1 (High Level Input -Speaker Input) Diagram 2 (Low Level Input -RCA Input) -
Page 7: Troubleshooting
TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Problem Solution Ampli er power Examine if the ground connection is intact. up failure Examine if remote input has at least 5V DC. - Page 8 Designed and engineered by Blaupunkt Competence Centre 1 113 22 027 02 01...
