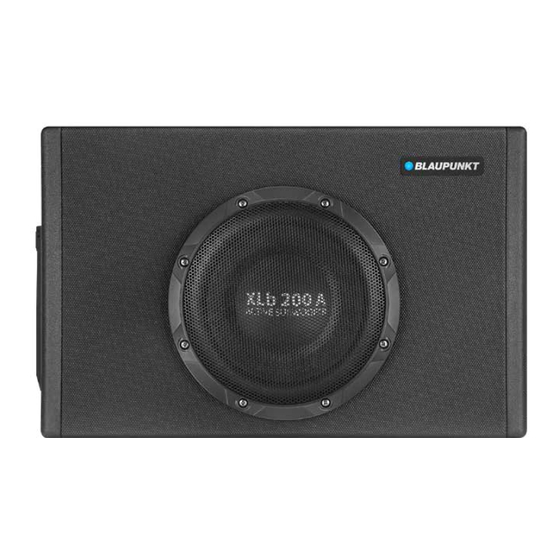

- Page 1 ACTIVE SUBWOOFER XLb 200 A Operating and Installation Instructions...
- Page 2 Ensure cross section of the cable is no less Disclaimer than 2.5mm2 if the positive and negative • In no event shall Blaupunkt be liable for any cables are too long. direct, indirect, punitive, incidental, special • Incorrect installation may result in malfunc- consequential damages, to property or life, tion of the device or the car sound system.
- Page 3 WIRING DIAGRAM SPECIFICATION Output Remote Control Subwoofer Amplifier • Max. Output Power : 500W • Amplifier Technology : Class D • Speaker Size : 8.0” • Normal Output Power (RMS) : 300W Input • Cone Composition : Fiberglass, Paper Cone, Rubber •...
- Page 4 Select an ideal installation location to install the subwoofer. It can be installed by using magic sticker or If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult iron sheets. Blaupunkt authorized dealer if problem persist. Magic Sticker Problem Solution Place the magic sticker on the bottom of the subwoofer and fix it on the floor.
- Page 5 Designed and engineered by Blaupunkt Competence Centre 1 113 22 022 02 01...
