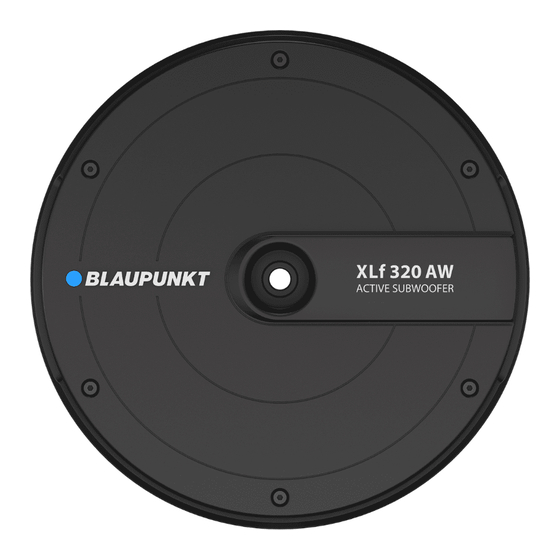

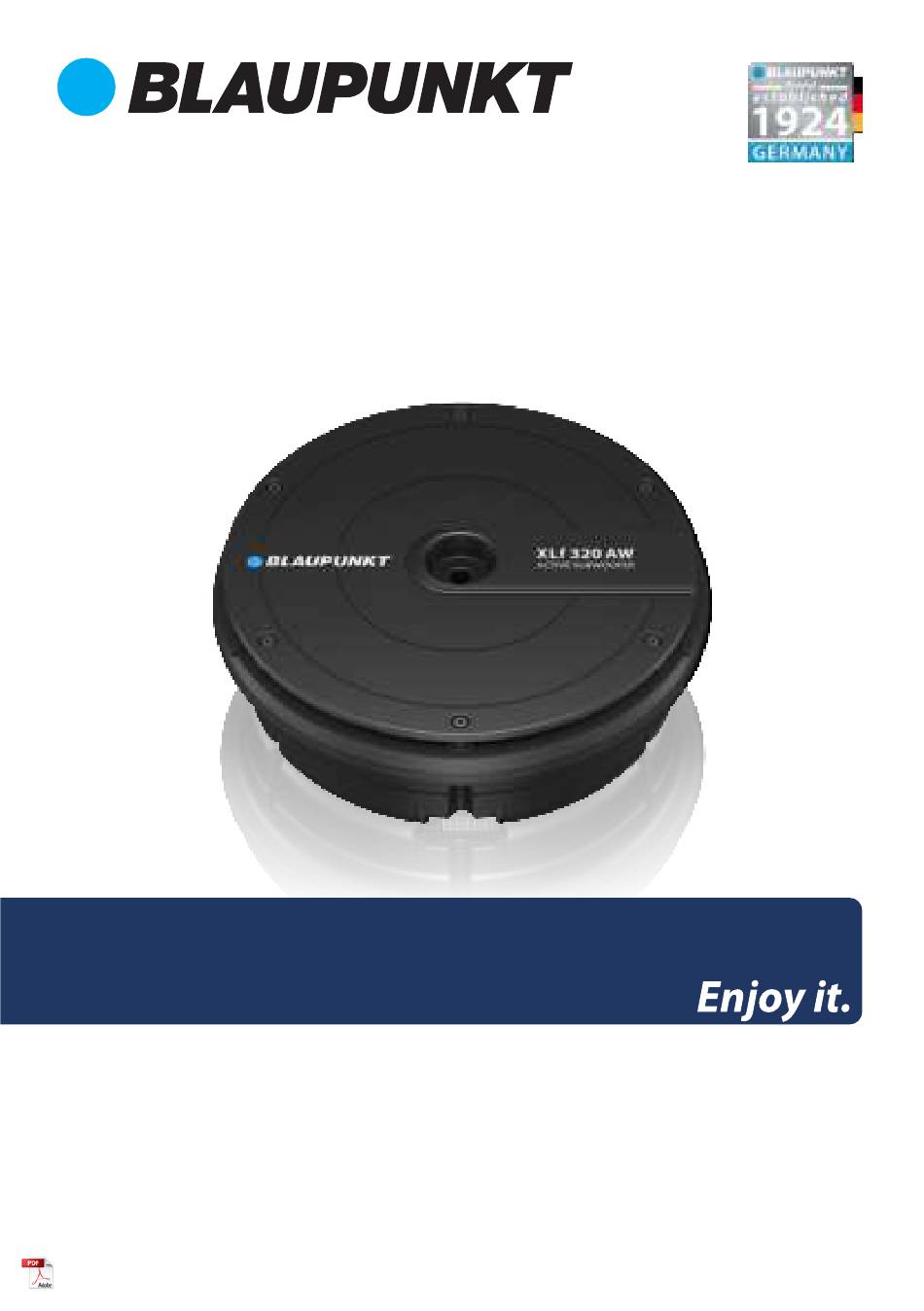

- Page 1 VELOCITY POWER ACTIVE SUBWOOFER XLf 320 AW Operating and Installation Instructions...
- Page 2 Ensure cross section of the cable is no less than 2.5mm2 if the positive and negative cables are Disclaimer too long. In no event shall Blaupunkt be liable for any direct, • Incorrect installation may result in malfunction of indirect, punitive, incidental, special consequential- the device or the car sound system.
-
Page 3: Installation Instruction
FUNCTIONS CONTROLLING DIAGRAM Power / Speaker Input Remote Control Input INSTALLATION INSTRUCTION Threaded rods are available in 3 size : M8x125, M8x65 & M8x30. Please select suitable rods for installation according to the width of the tire. Type 1 Fixing Base Tri-lobular Screw Nut Threaded Rod 1... -
Page 4: Specification
SPECIFICATION 360mm Max. Output Power : 420W Subwoofer • Speaker Size : 11” Diameter Signal / Noise Ratio : >90dB • • Impedance : (4+4) Ohms Frequency Response : 20Hz - 150 Hz • • Sensitivity (1W/1m) : 85dB Low Pass Filter (LPF) : 50Hz - 150Hz •... -
Page 5: Wiring Diagram
Diagram 2 (Low Level Input -Speaker Input) With control via the Low Level Inputs (also referred to as RCA Inputs), connect the blue colour remote wire from XLf 320 AW to the vehicle’s head unit so XLf 320 AW will turn on and off with systems. - Page 6 WIRING DIAGRAM Securely mount the subwoofer to chassis with the provided bolt. (Fastener assemble direction has been enclosed.) After the connection, place in the spare wheel active subwoofer to the right location, make sure the subwoofer been firmly press down. Set the bolt tightly to ensure the subwoofer firmly fixed with the car, at the same time can prevent the screw of spare tire dislocation.
-
Page 7: Troubleshooting
TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Solutions Problems Examine if the ground connection is intact. Power up failure Examine if remote input has at least 5V DC. - Page 8 Designed and engineered by Blaupunkt Competence Centre 1 113 21 021 02 01...
