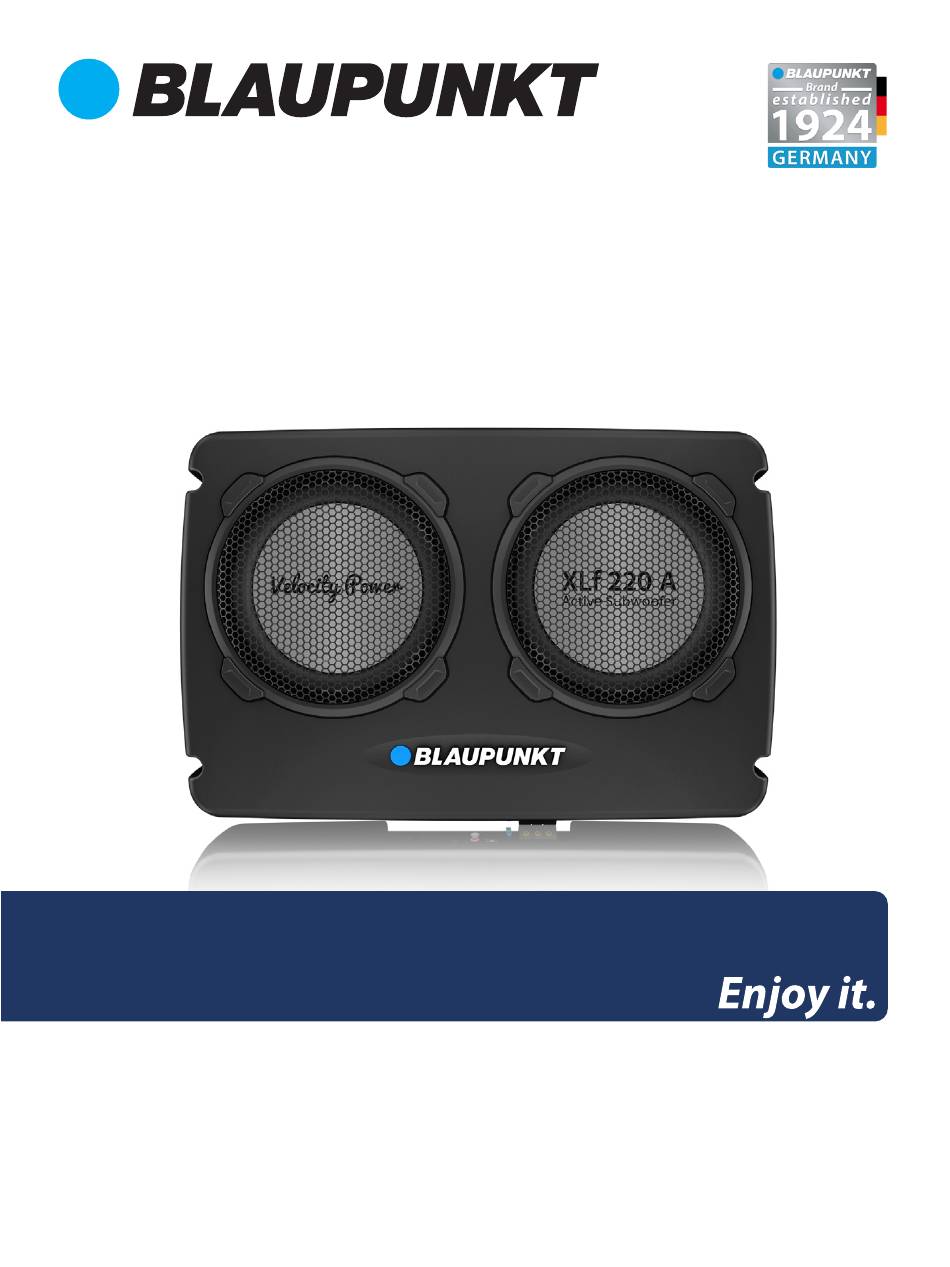

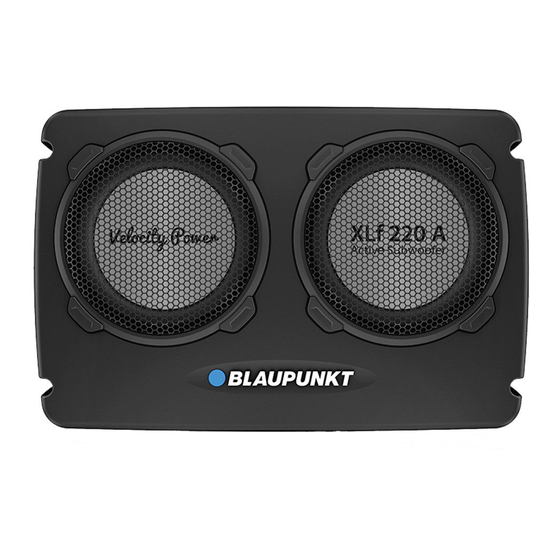

- Page 1 VELOCITY POWER ACTIVE SUBWOOFER XLf 220 A Operating and Installation Instructions...
- Page 2 Incorrect installation may result in malfunction of the device or the car sound Disclaimer system. In no event shall Blaupunkt be liable for any direct, indirect, punitive, incidental, special consequential Installation and Connection Instructions damages to property or life and whatsoever arising out •...
- Page 3 FUNCTIONS CONTROLLING DIAGRAM 9 10 Phase (0° ~ 180°) Frequency (50Hz ~ 100 Hz) Input Gain (200mV ~ 6V) Remote Control RCA Input (LCH, RCH) High Input Fuse (15A) +12V Battery Remote (Turn-on) Ground (Chasis) SPECIFICATION Dual Subwoofer • Voltage : 14.4V (10V-16V) •...
- Page 4 INSTALLATION POSITION SIDE FIRING POSITION UP FIRING POSITION...
-
Page 5: Wiring Diagram
WIRING DIAGRAM Use the supplied cable and wire harness to connect the outputs correctly by referring to Diagram 1 & Diagram 2. Diagram 1 (High Level Input -Speaker Input) Metal Part of Vehicle Body CONNECT BLACK WIRE TO THE CHASSIS OF THE VEHICLE YELLOW WIRE BATTERY CHASSIS GROUND... -
Page 6: Troubleshooting
TROUBLESHOOTING If any of the following problem occur, please resort to Troubleshooting for the possible solutions. Consult Blaupunkt authorized dealer if problem persist. Solutions Problems Examine if the ground connection is intact. Power up failure Examine if remote input has at least 5V DC. - Page 8 Designed and engineered by Blaupunkt Competence Centre 1 113 19 010 02 01...
