Summary of Contents for Blaupunkt XLf 10A

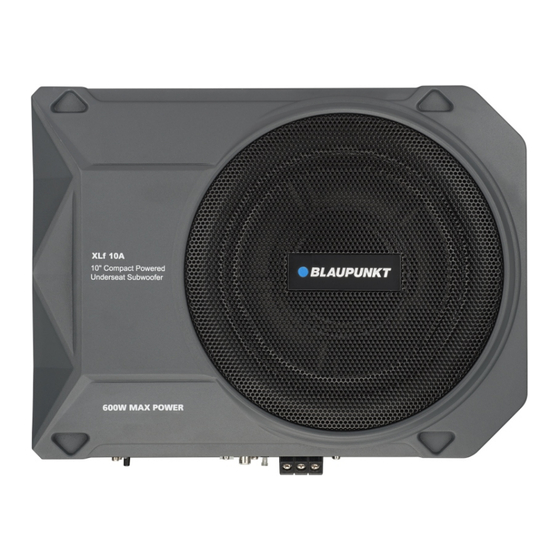

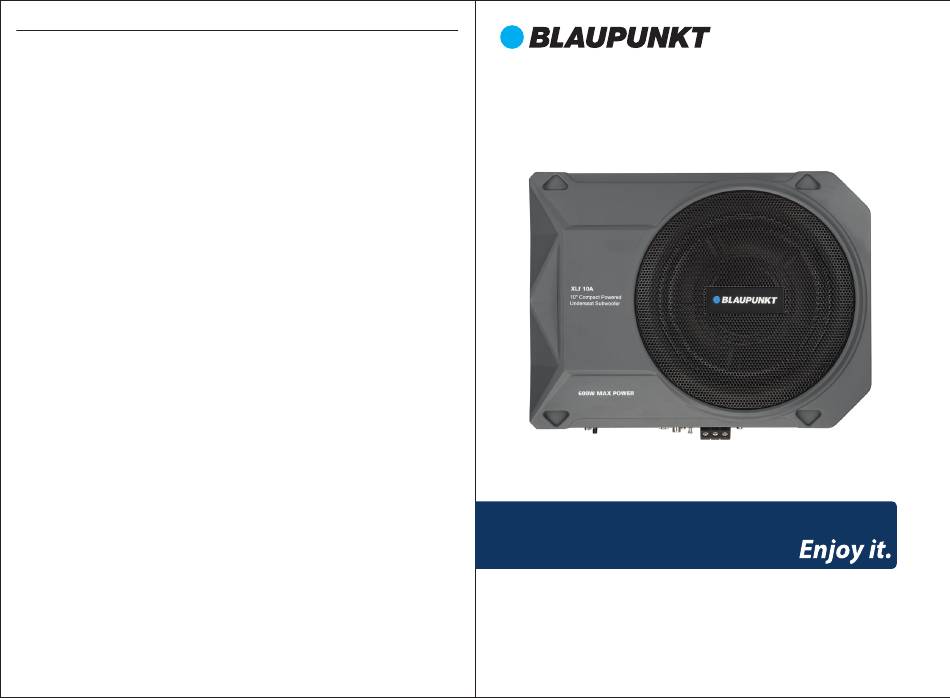

- Page 1 Xlf 10A UNDERSEAT ACTIVE SUBWOOFER 10" (254 mm) | 600 W MAX. POWER BPIN Private Limited 47, Atlanta Society, Nariman PointMumbai‐ 400 021. India. Toll Free: 1800 209 6820 | info@blaupunktcar.in Shop Online at www.blaupunktcar.in...
- Page 2 Introduction Xlf 10A, is a slim pro le underseat ampli ed subwoofer. It comes with a slim enough pro le to easily t below the seat of most vehicles. This system offers a quick and easy way to add a high-powered subwoofer system to any audio system.
- Page 3 Xlf 10A Xlf 10A Low Level Input Wiring Power Connections Low-level (RCA) input wiring is preferred for best audio performance. Most trunk or hatchback Connect the ground terminal to the closest point on the chassis of the vehicle. Keep this ground wire to installations will require a 15-17 foot RCA cable, while pickup trucks and under-seat installations will less than 39”...
- Page 4 If the device should malfunction or should there be an issue with it’s performance, please refer to the below trouble shooting guide and wiring diagram mentioned above. Should the issue persist, please visit a Blaupunkt Authorized Service Center. PROBLEM POSSIBLE REASON...
