H4060

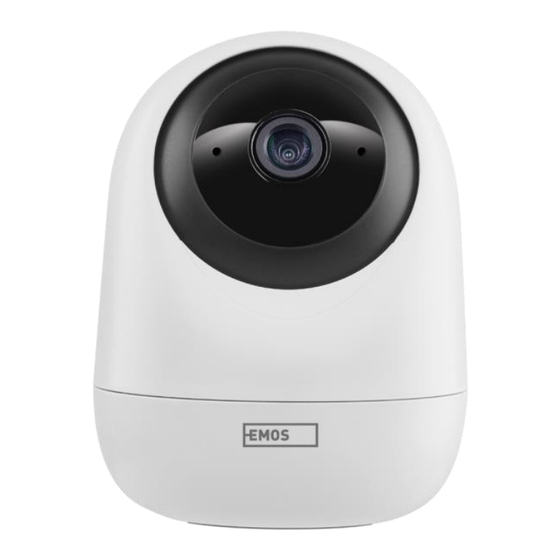

GoSmart IP indoor IP-220W 4MPx PTZ camera
Table of Contents
Safety instructions and warnings ........................................................................................... 2
Contents of the package ........................................................................................................ 3
Technical Specifications .......................................................................................................... 3
Description of the device ....................................................................................................... 4
Installation and assembly ....................................................................................................... 5
Controls and functions ......................................................................................................... 10
Troubleshooting FAQ ........................................................................................................... 11
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Emos GoSmart H4060
Summary of Contents for Emos GoSmart H4060
-
Page 1: Table Of Contents
H4060 GoSmart IP indoor IP-220W 4MPx PTZ camera Table of Contents Safety instructions and warnings ................... 2 Contents of the package ......................3 Technical Specifications ......................3 Description of the device ....................... 4 Installation and assembly ....................... 5 Controls and functions ......................10 Troubleshooting FAQ ...................... -
Page 2: Safety Instructions And Warnings
Do not disassemble, repair or modify the equipment yourself. Doing so may result in fire, electric shock or permanent damage. EMOS spol. s r.o. declares that the product H4060 complies with the essential requirements and other relevant provisions of the directives. The equipment can be operated freely in the EU. -
Page 3: Technical Specifications
Sensor: 1/3.0" 4Megapixel CMOS Motion detection length: 10 m Motion detection angle: 100° Storage: SD card (max. 256 GB, FAT32), Cloud storage Degree of protection: IP20 APP: EMOS GoSmart for Android and iOS Connectivity: 2.4 GHz Wi-Fi (IEEE802.11b/g/n), 5 GHz Wi-Fi (IEEE802.11b/g/n/ax) -
Page 4: Description Of The Device
Description of the device 1 - Lens 2 - Status light • The LED is red: the camera is reporting an error. • The LED flashes red: the camera is preparing to connect to a Wi-Fi network. • The LED flashes red quickly: you are now connecting to a Wi-Fi network. - Page 5 The camera can connect to both 2.4GHz and 5GHz Wi-Fi frequencies.
-
Page 6: Installation And Assembly
Installation and assembly Installation on a flat surface Place the camera in the desired location, and connect the power supply. Installation in the holder Place the bracket in the desired location, then screw it in place with the screws. Place the camera on the bracket and fix it by turning it. - Page 7 QR code. EMOS GoSmart mobile app Open the EMOS GoSmart app and confirm the privacy policy and click "I agree". Select "Register". Enter the name of a valid email address and choose a password.
- Page 8 Connect power to the camera. Reset the device using the RESET button on the underside of the camera swivel. Make sure the red LED is flashing. Enter the name and password of your Wi-Fi network. This information remains encrypted and is used to allow the camera to communicate with your mobile device remotely.
- Page 9 Icons and indicator lights Description of controls in the application Advanced settings (described in more detail in the following section) Video quality switching (HD/SD) Signal quality and speed Mute Zoom in Full screen mode Take pictures using the app and save them to your mobile album Speak Take a video using the app and save it to your mobile...
- Page 10 Description of extension settings • Device information - Basic information about the device and its owner • Tap-to-Run and Automation - View scenes and automations assigned to the device. Creation of scenes is possible directly in the main menu of the application in the section "Scenes".
-
Page 11: Controls And Functions
Controls and functions Setting the positions This feature allows you to set predefined positions for the camera, s o you don't have to manually rotate the camera to the desired location. 1. Turn the camera to the desired angle using the directional buttons. 2. -
Page 12: Troubleshooting Faq
Troubleshooting FAQ I can't get the devices to pair. What can I do? • Make sure you have a strong enough signal • Allow the app all permissions in the settings • Make sure you are using the latest version of the mobile operating system and the latest version of the app They can hear me outside, but I can't hear the sound outside / I can hear the sound outside, but they can't hear •...
