H4058

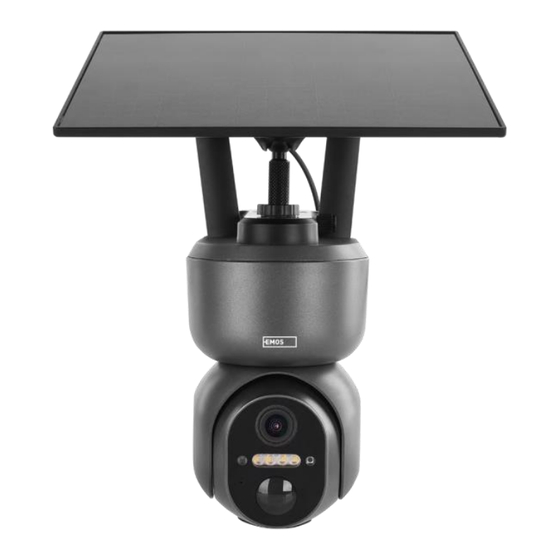

GoSmart IP outdoor camera 4G LTE IP-6000 OWL
Table of Contents
Safety instructions and warnings ........................................................................................... 2
Contents of the package ........................................................................................................ 3
Technical Specifications .......................................................................................................... 4
Description of the device ....................................................................................................... 5
Installation and assembly ....................................................................................................... 6
Icons and indicator lights ...................................................................................................... 12
Controls and functions ......................................................................................................... 14
Troubleshooting FAQ ........................................................................................................... 15
1
Advertisement
Table of Contents
Related Manuals for Emos GoSmart H4058
Summary of Contents for Emos GoSmart H4058
-
Page 1: Table Of Contents
H4058 GoSmart IP outdoor camera 4G LTE IP-6000 OWL Table of Contents Safety instructions and warnings ................... 2 Contents of the package ......................3 Technical Specifications ......................4 Description of the device ....................... 5 Installation and assembly ....................... 6 Icons and indicator lights ...................... 12 Controls and functions ...................... -
Page 2: Safety Instructions And Warnings
Before using the device, read the instructions for use. Observe the safety instructions in this manual. EMOS spol. s r.o. declares that the product H4058 complies with the essential requirements and other relevant provisions of the directives. The equipment can be operated freely in the EU. -
Page 3: Contents Of The Package
Contents of the package Camera Solar panel USB cable Bracket Screws Manual... -
Page 4: Technical Specifications
IR distance: night vision up to 10 m Night vision: 4× IR LED + white LED Storage: SD card (max. 128 GB), Cloud storage, APP: EMOS GoSmart for Android and iOS Connectivity: 4G / LTE IP protection: IP65 Operating temperature: from -20 °C to 50 °C... -
Page 5: Description Of The Device
Description of the device 1 - Antennas 2 - Camera holder 3 - Lens 4 - White and IR illumination 5 - Status LED 6 - Microphone 7 - PIR sensor (motion sensor) 8 - Light sensor 9 - Solar panel 10 - Solar panel holder 11 - Cable connecting the camera and solar panel 12 - SD card slot... -
Page 6: Installation And Assembly
Installation and assembly Before installation, make sure the area is covered by a 4G/LTE signal. Currently, most providers offer an interactive map showing 4G coverage in specific countries and regions. However, we recommend personally testing the signal at the installation site to make sure the signal is strong. For the most reliable results, the signal should be at least 80% strong. - Page 7 Camera installation Before installing the camera in the holder, you must insert the SIM card into the camera. The SIM card must have the 4G/LTE function enabled and the PIN code disabled. 1. Place the camera mount in the preferred location. We recommend placing the camera at least 2.6 meters high to prevent any intruders from tampering with the camera.
- Page 8 Installation options...
- Page 9 QR code to download the app. EMOS GoSmart mobile app Open the EMOS GoSmart app and confirm the privacy policy and click I agree. Select the registration option. Enter the name of a valid email address and choose a password.
- Page 10 Pairing with an app Select Add device. Select the GoSmart product category and select the Camera IP-6000 OWL (4G). Once again, make sure that the inserted SIM card is not PIN-protected and that 4G/LTE is switched on. Turn on the camera by switching between the antennas and reset it with the RESET button on the bottom of the camera and continue the application.
- Page 11 Alternative pairing process If for any reason the camera has trouble with the pairing process described above, there is another way to pair the camera: In the add section, select the scan option. The app will open the camera preview and use it to scan the QR code located on the camera. After a successful scan, the camera should start the pairing process.
-
Page 12: Icons And Indicator Lights
Icons and indicator lights Description of controls in the application Advanced settings (described in more detail in the following section) Video quality switching (HD/SD) Battery status Signal quality and strength Transfer rate Mute Zoom in Full screen mode Take pictures using the app and save them to your mobile album Speak Take a video using the app and save it to your mobile album Expand menu... - Page 13 Motion detection - the camera will alert you if it detects any movement PIR sensor settings Siren settings To view SIM card information Edit icons + add control of another device Display of messages (Motion detection...) Manual camera movement Description of extension settings •...
-
Page 14: Controls And Functions
Controls and functions Recording to SD card One of the basic functions of the home security system is the SD card recording function. The camera is mains powered, allowing non-stop recording or recording only when the camera detects movement. Selection and scheduling of recording is possible in the camera settings under "Recording settings". The camera supports SD cards with a maximum size of 128 GB in FAT32 format. -
Page 15: Troubleshooting Faq
Troubleshooting FAQ I can't get the devices to pair. What can I do? • Make sure you are using a 2.4GHz Wi-Fi network and have a strong enough signal • Allow the app all permissions in the settings • Make sure you are using the latest version of the mobile operating system and the latest version of the app They can hear me outside, but I can't hear the sound outside / I can hear the sound outside, but they can't hear •...
