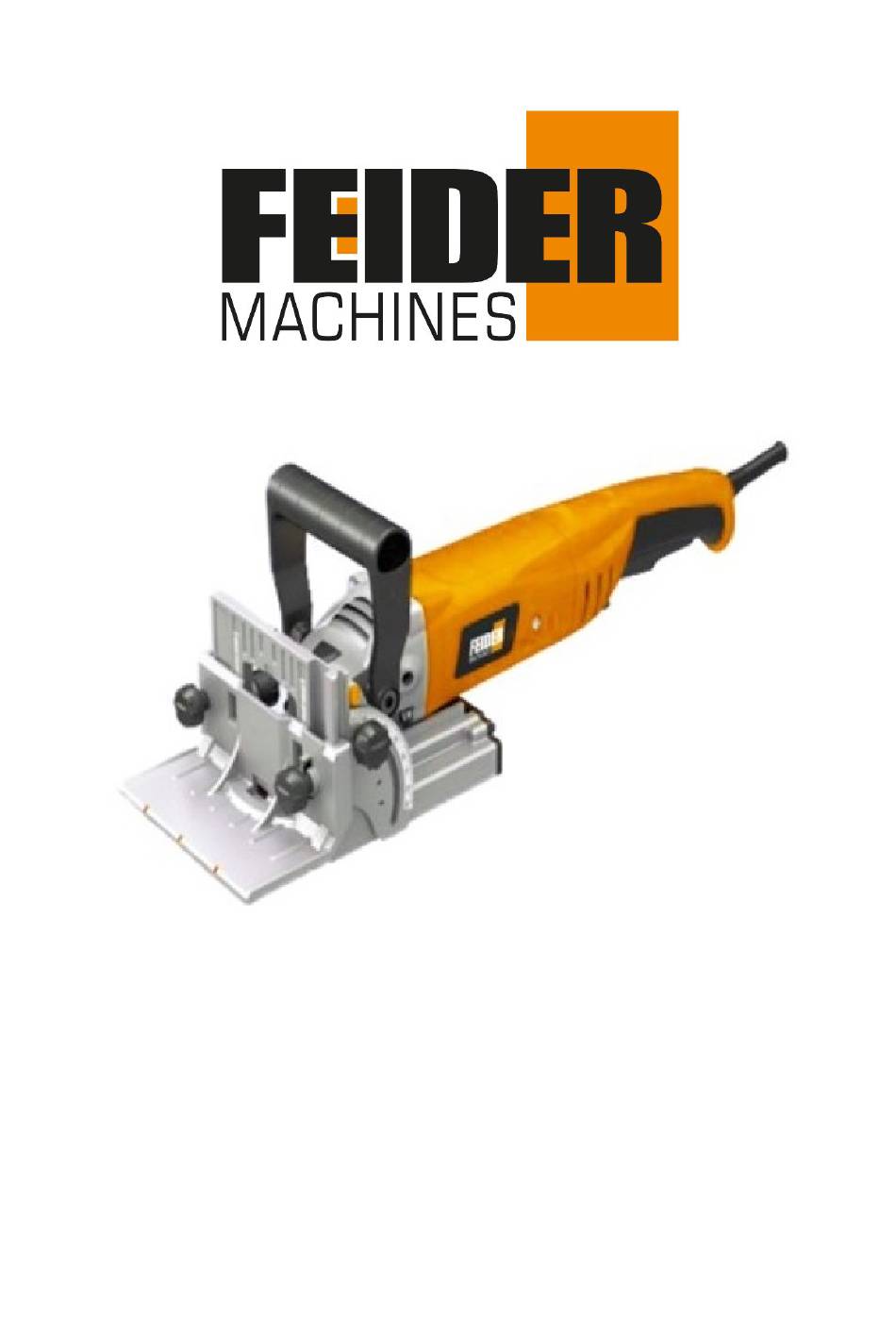

- Page 1 ORIGINAL INSTRUCTIONS >EN BISCUIT JOINTER FMLC1010 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. SAFETY INSTRUCTIONS........................3 2. YOUR PRODUCT..........................6 3. OPERATION............................7 4. MAINTENANCE / CLEANING......................10 5. EXPLOSION DIAGRAM........................11 6. DISPOSAL............................12 7. DECLARATION OF CONFORMITY....................13 8. WARRANTY............................14 9. PRODUCT FAILURE.......................... 15 10. WARRANTY EXCLUSIONS......................16... -
Page 3: Safety Instructions
1. SAFETY INSTRUCTIONS General Power Tool Safety Warnings WARNING: Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 Carrying power tools with your finger on the switch or energising power tools that have the switch on invites accidents. d) Remove any adjusting key or wrench before turning the power tool on. A wrench or a key left attached to a rotating part of the power tool may result in personal injury. e) Do not overreach.
- Page 5 Hold power tool by insulated gripping surfaces because the cutter may contact its own cord. Cutting a "live" wire may make exposed metal parts of the power tool "live" and could give the operator an electric shock. WARNING! Please also read the enclosed general safety instructions carefully before putting your grooving machine into service and working.
-
Page 6: Your Product
13. Dust bag 6. Locking lever for angle adjustment 14. Face spanner 7. Angle fence 15. Midline 16. Height fence 8. Locking lever for height adjustment Tool specifications Model FMLC1010 Voltage 230-240 V~ Frequency 50Hz Input power 1010W No load speed 12000/min... -
Page 7: Operation
Groove width 4 mm (5/32 in.) Groove depth max. 18 mm (3/4 in.) Weight of machine 3.1kg Sound pressure values Lpa: 89dB(A) K=3dB(A) Sound power values Lwa:100dB(A) K=3dB(A) Protection class II (Double insulation) Handle vibration emission value : 2.83m/s K=1.5m/s Information ... - Page 8 Setting the cutting depth Set the required cutting depth with the setting wheel (9). The designations on the setting wheel reflect the various sizes of biscuit dowels. You can adjust the cutting depth setting using the screw (10). ...
- Page 9 Setting the cutting angle Loosen the locking height lever for height adjustment (8). Turn the adjustment knob clockwise to move the height fence (16) upward until it unfits the angle fence (7). Undo the locking lever for angle adjustment (6) ...
-
Page 10: Maintenance / Cleaning
Place your product on the workpiece, the marking on the workpiece facing the marking on the moving fence (if applicable). Make sure that the disc cutter does not touch the surface yet. Switch the product on and wait until it runs at full speed before cutting into the workpiece. ... -
Page 11: Explosion Diagram
If the body of the tool needs cleaning, wipe it with a soft damp cloth. A mild detergent can be used but nothing like alcohol, petrol or other cleaning agent. Never use caustic agents to clean plastic parts. CAUTION! Water must never come into contact with the tool. During use, the carbon brushes will wear down and will be indicated by a possible loss of power and excessive sparking seen through the ventilation slots. -
Page 12: Disposal
6. DISPOSAL Les produits électriques ne doivent pas être mis au rebut avec les produits ménagers. Selon la Directive Européenne 2012/19/UE pour le rebut des matériels électriques et électroniques et de son exécution dans le droit national, les produits électriques usagés doivent être collectés séparément et disposés dans des points de collecte prévus à... -
Page 13: Declaration Of Conformity
32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France, declares that: Product: BISCUIT JOINTER Model: FMLC1010 Serial number: 20230507136-20230507635 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus cancels this declaration. -
Page 14: Warranty
8 . WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 15: Product Failure
9 . PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 16: Warranty Exclusions
10. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France Made in PRC...
