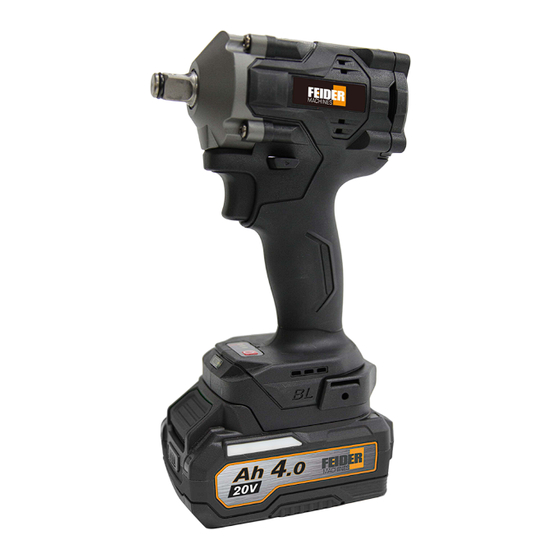

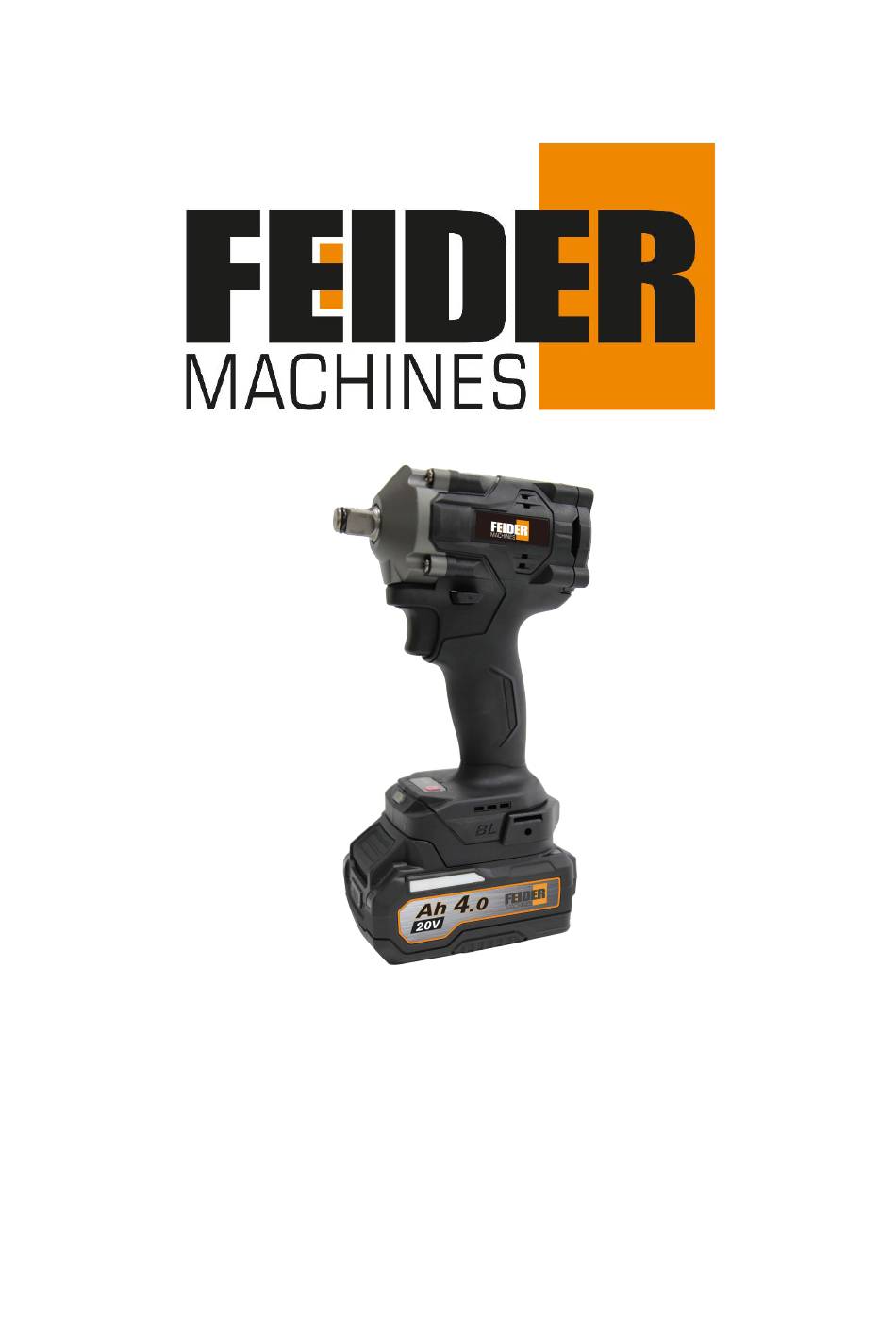

- Page 1 ORIGINAL INSTRUCTIONS >EN CORDLESS IMPACT WRENCH FIW620 USER GUIDE CAUTION: Read this manual before using this machine!
-
Page 2: Table Of Contents
CONTENTS 1. INTENDED USE..............................3 2. SAFETY INSTRUCTIONS........................... 3 3. YOUR PRODUCT..............................9 4. OPERATION................................9 5. CLEANING AND MAINTENANCE AND STORAGE..................12 6. TECHNICAL DETAILS............................12 7. DISPOSAL................................13 8. DECLARATION OF CONFORMITY........................ 13 9. WARRANTY.................................14 10. PRODUCT FAILURE............................15 11. WARRANTY EXCLUSIONS..........................16... -
Page 3: Intended Use
1. INTENDED USE The cordless impact wrench is intended to loosen/tighten screws, bolts and nuts. It is not designed for commercial use. WARNING: For your own safety, read this manual and the general safety instructions carefully before using the appliance. Your power tool should only be given to other users together with these instructions. - Page 4 medication. A moment of inattention while operating power tools may result in serious personal injury. Use personal protective equipment. Always wear eye protection. Protective equipment such as a dust mask, non-skid safety shoes, hard hat or hearing protection used for appropriate conditions will reduce personal injuries.
- Page 5 When battery pack is not in use, keep it away from other metal objects, like paper clips, coins, keys, nails, screws or other small metal objects, that can make a connection from one terminal to another. Shorting the battery terminals together may cause burns or a fire. Under abusive conditions, liquid may be ejected from the battery;...
- Page 6 Immediately rinse with water. Neutralize with a mild acid such as lemon juice or vinegar. In case of eye contact, rinse abundantly with clean water for at least 10 minutes. Consult a physician. Fire hazard! Avoid short-circuiting the contacts of a detached battery. Do not incinerate the battery.
- Page 7 To protect against electric shock, do not immerse the product in water or other liquids. CAUTION: Only allow children at least 8 years old to use the battery charger. Give sufficient instruction so that the child is able to use the battery charger in a safe way and explain that it is not a toy and must not be played with.
- Page 8 2.4 SYMBOLS Conforms to relevant safety standards To reduce the risk of injury, the user must read and understand this manual before using this product. visible radiation, instructional safeguard Wear ear protectors. Exposure to noise can cause hearing loss. Wear eye protection. Class II, double isolation (only for charger).
-
Page 9: Your Product
3. YOUR PRODUCT 3.1 DESCRIPTION 1. 1/2 in. Square Drive 8. Battery status display 2. Directional switch and trigger lock 9. Battery 3. Trigger 10. charging port 4. Handle with soft grip 11.Charger 5. Speed setting button 12. RED indicator light on charger 6. - Page 10 Insert the battery (9) into the port of charger (10). The red indicator light (12) illuminated when charging. When fully charged, the green indicator light (13) is illuminate. Frequently monitor the charger and battery pack while connected. ...
- Page 11 Speed /min speed 0-1600 0-2500 speed 0-2500 0-3600 Reverse 0-2500 0-3600 4.5 REVERSE (COUNTER CLOCKWISE) OPERATION: The electronic clutch has two different reverse modes: Full Reverse and Auto Break. The Reverse mode is automatically activated when the direction switch (2) is put into the reverse position, and the mode would be the same as the mode you set last time.
-
Page 12: Cleaning And Maintenance And Storage
5. CLEANING, MAINTENANCE & STORAGE WARNING! Never use solvents such as petrol, alcohol, ammonia water etc. The solvents may damage the plastic parts. CAUTION! Always remove the battery before cleaning. 5.1 CLEANING Keep the ventilation slots free from dust and dirt. Regularly clean the impact driver with a soft cloth. -
Page 13: Disposal
32, rue Aristide Bergès - ZI 31270 Cugnaux - France, declares that: Product: Cordless impact wrench Trade mark: FEIDER Model: FIW620 Serial number: 20230901661-20230902160 Is in conformity with the essential requirements and other relevant provisions of the applicable European Directives, based on the application of European harmonized standards. Any unauthorized modification of the apparatus voids this declaration. -
Page 14: Warranty
9. WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 15: Product Failure
10. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: • Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. •... -
Page 16: Warranty Exclusions
11. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 17 NOTES...
- Page 18 NOTES...
- Page 19 BUILDER SAS 32 rue Aristide Bergès - Z.I. du Casque - 31270 Cugnaux - France MADE IN PRC...
