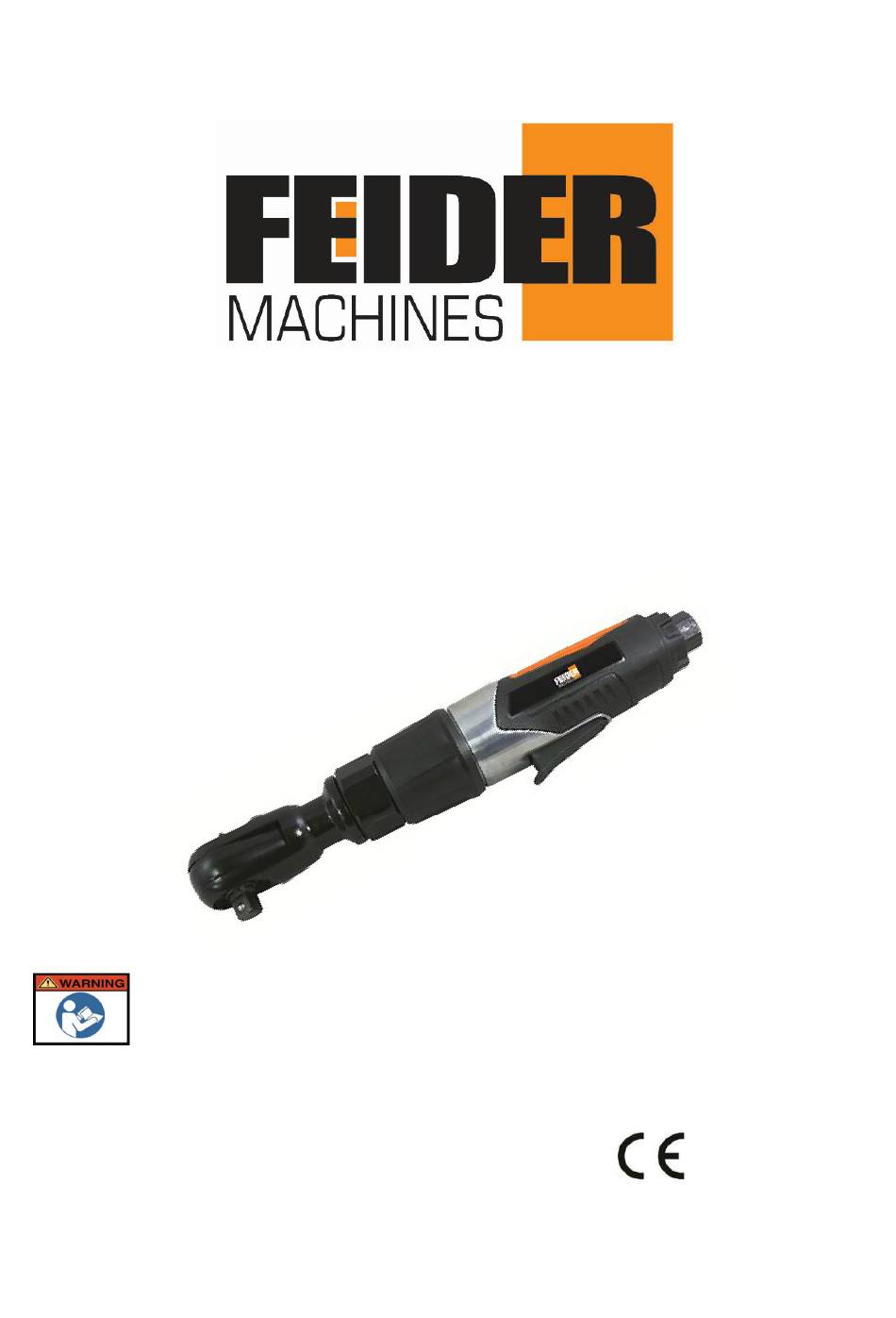

- Page 1 ORIGINAL INSTRUCTIONS Instruction manual Air Ratchet Wrench Model# FCP WARNING: READ THE FOLLOWING INSTRUCTIONS BEFORE USE THIS MACHINE BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux – France MADE IN PRC...
- Page 2 ORIGINAL INSTRUCTIONS 1. Important Safety Rules 1) Follow all workshop safety rules, regulations, and conditions when using wrench. 2) Do not wear watches, rings bracelets or loose clothing when using air tools. 3) Disconnect from air supply before changing accessories or servicing. 4) Maintain the wrench in good condition and replace any damaged or worn parts.
- Page 3 ORIGINAL INSTRUCTIONS Warning Risk of crushing (between the reaction bar and the workpiece) clockwise rotation; anticlockwise rotation; Wear ocular protection Wear hearing protection Wear dust mask Conforms to relevant safety standards 3. Operating Instruction 3.1 Description Mainly used in the operation of removing screw or nut in all kinds of narrow space places. Designed with high technology and manufactured in precision to reach high quality, more power and longer life.
- Page 4 ORIGINAL INSTRUCTIONS Entanglement hazards can result in choking, scalping and/or lacerations if loose clothing, personal jewellery, neckware, hair or gloves are not kept away from the tool and accessories. loves can become entangled with the rotating drive, causing severed or broken fingers. Rotating drive sockets and drive extensions can easily entangle rubber-coated or metal-reinforced gloves.
- Page 5 ORIGINAL INSTRUCTIONS .Use only ratchet-wrench-rated sockets in good condition, as poor condition or hand sockets and accessories used with ratchet wrenches can shatter and become a projectile. 3.7 Workplace hazards The following apply. .Slips, trips and falls are major causes of workplace injury. Be aware of slippery surfaces caused by the use of the tool and also of trip hazards caused by the air line or hydraulic hose.
- Page 6 ORIGINAL INSTRUCTIONS If the assembly power tool for threaded fasteners has a silencer, always ensure it is in place and in good working order when the assembly power tool for threaded fasteners is operating. Select, maintain and replace the consumable/inserted tool as recommended in the instruction handbook, to prevent an unnecessary increase in noise.
- Page 7 ORIGINAL INSTRUCTIONS Even when the tool is used as prescribed it is not possible to eliminate all residual risk factors. The following hazards may arise in connection with the tool’s construction and design: 1. Damage to lungs if an effective dust mask is not worn. 2.
- Page 8 ORIGINAL INSTRUCTIONS Proper adjustment of the in-line lubricator is performed by placing a sheet of paper next to the exhaust ports and holding the throttle open approximately 30 seconds. The lubricator is properly set when a light stain of oil collects on the paper. Excessive amounts of oil should be avoided.
-
Page 9: Troubleshooting
ORIGINAL INSTRUCTIONS 5) The flow of air may be regulated by adjusting flow valve at the base of the handle. 6) Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure and unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage or personal injury. - Page 10 ORIGINAL INSTRUCTIONS Tool runs at normal ■. Motor parts worn. ■ Lubricating clutch housing. ■ Cam clutch worn ■ Check for excess clutch oil. Clutch cases speed but loses under load or sticking due to need only be half full. Overfilling lack of lubricant.
- Page 11 ORIGINAL INSTRUCTIONS No. Description NO Description Qty No. Description Qty No. Description Ratchet yoke Lock pin Rolling pin 2x18 Drive Spring Washer Air inlet valve bushing seat Crank shaft Bearing Needle Ratchet Front Plate Spring bearing Pawl Bearing shell Steel ball Cylinder O-ring 14.5X1.8...
- Page 12 ORIGINAL INSTRUCTIONS Blade O-ring Steel ball End plate connector Idler Gear Retainer Bearing Sealed cap Plate ring Idler Gear Ratchet Trigger Air inlet anvil Idler Gear Washer Trigger pin Thread ring Reverse Housing gear button 11. DISPOSAL Electrical products should not be discarded with household products. According to the European Directive 2012/19/EU on waste electrical and electronic equipment and its implementation into national law, electrical products used must be collected separately and disposed of at collection points provided for this purpose.
-
Page 13: Warranty
13. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identified as defective by the designated distributor. -
Page 14: Product Failure
14. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 15: Warranty Exclusions
15. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •...
