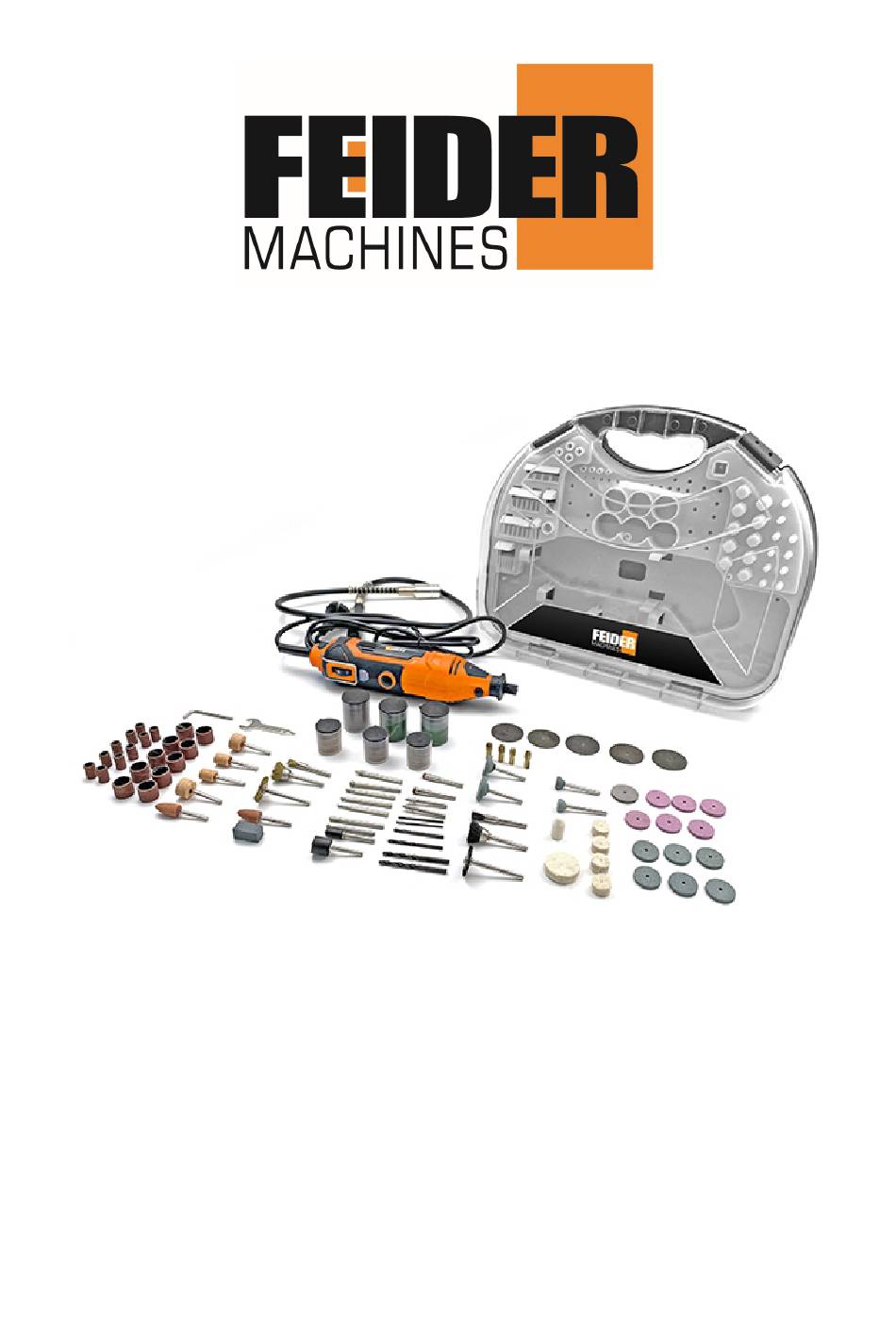

- Page 1 ORIGINAL INSTRUCTIONS > EN MULTI-FUNCTION ROTARY TOOL FMO130-210 INSTRUCTION MANUAL CAUTION Read the instructions before using the machine.
-
Page 2: Table Of Contents
ORIGINAL INSTRUCTIONS > EN CONTENT SAFETY INSTRUCTIONS SYMBOLS INTENDED USE TECHNICAL DATA CONTENTS OF PACKING TECHNICAL DATA ASSEMBLY OPERATIONS CLEANING AND MAINTENANCE DISPOSAL DECLARATION OF CONFORMITY WARRANTY PRODUCT FAILURE WARRANTY EXCLUSIONS... -
Page 3: Safety Instructions
ORIGINAL INSTRUCTIONS > EN 1. SAFETY INSTRUCTIONS 1.1 GENERAL POWER TOOL SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool"... - Page 4 ORIGINAL INSTRUCTIONS > EN f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 5 ORIGINAL INSTRUCTIONS > EN f) Mandrel mounted wheels, sanding drums, cutters or other accessories must be fully inserted into the collet or chuck. If the mandrel is insufficiently held and/or the overhang of the wheel is too long, the mounted wheel may become loose and be ejected at high velocity. g) Do not use a damaged accessory.
- Page 6 ORIGINAL INSTRUCTIONS > EN For example, if an abrasive wheel is snagged or pinched by the workpiece, the edge of the wheel that is entering into the pinch point can dig into the surface of the material causing the wheel to climb out or kick out. The wheel may either jump toward or away from the operator, depending on direction of the wheel’s movement at the point of pinching.
-
Page 7: Symbols
ORIGINAL INSTRUCTIONS > EN h) Use extra caution when making a “pocket cut” into existing walls or other blind areas. The protruding wheel may cut gas or water pipes, electrical wiring or objects that can cause kickback. 1.5 ADDITIONAL SAFETY INSTRUCTIONS FOR WIRE BRUSHING OPERATIONS Safety warnings specific for wire brushing operations: a) Be aware that wire bristles are thrown by the brush even during ordinary operation. -
Page 8: Contents Of Packing

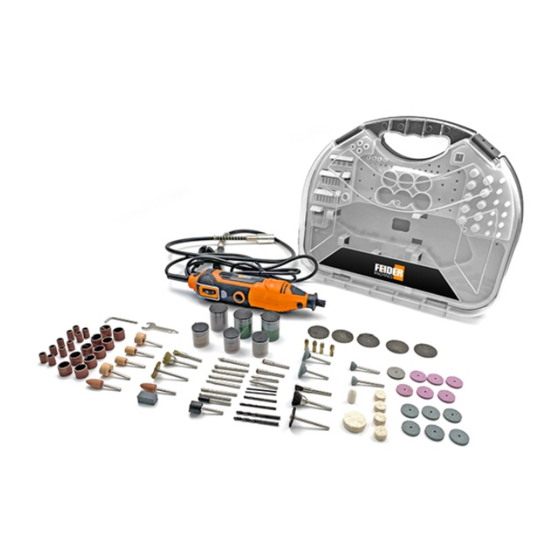

ORIGINAL INSTRUCTIONS > EN 4. DESCRIPTION On/Off switch Speed selector Collet nut Spindle lock button Carbon brush cap 5. CONTENTS OF PACKING Picture Name Quantity Grinding Stones with shank Diamond bit Collets Sanding bands Sanding bands... - Page 9 ORIGINAL INSTRUCTIONS > EN Mandrel for cut-off wheel Mandrel for felt wheel Sanding shanks Grinding wheels Wet stone Cut off wheels fiberglass Rubber emery wheel Wrench Polishing compound...
- Page 10 ORIGINAL INSTRUCTIONS > EN Cut off wheels regular Sanding paper Felt wheels Felt wheels Felt wheel pointed Drill bits Brush L pin...
-
Page 11: Technical Data
ORIGINAL INSTRUCTIONS > EN 6. TECHNICAL DATA Power supply 220-240V~; 50Hz Power input 135W No load speed 8000-33000/min Collet capacity (max) ： Ø3.2mm Grinding disc (max): Ø35mm Mandrel length (max): 35mm (Sound pressure level): 68 dB(A) K=3 dB (Sound power level): 79 dB(A) K=3 dB Vibration level a... -
Page 12: Operations
ORIGINAL INSTRUCTIONS > EN NOTE: Never press the locking pin while the tool is running. 7.2 INSTALLING DISC/WHEELS ACCESSORIES NOTE: The tool must not be plugged to a power socket during this operation. Wear gloves during this operation to avoid injury which is caused by accessories. - Page 13 ORIGINAL INSTRUCTIONS > EN when using polishing and brushing accessories. For milling or engraving hold the tool like a pen, and keep the ventilation slots clear. For heavier work hold the tool like a hammer. For cutting disks hold the tool in both hands and use high speeds. This accessory is brittle and should only be used for straight cuts.
-
Page 14: Cleaning And Maintenance 1
ORIGINAL INSTRUCTIONS > EN Felt wheel pointed 4000~20000 4000~20000 Flap wheel 9000~35000 HSS cutters Drill bits 4500~35000 4000~15000 Brush L pin To switch on, push the ON/OFF switch to “I” position. To switch off, push the ON/OFF button to the “0” position. 9. -
Page 15: Disposal 1
BUILDER SAS ZI, 32 rue Aristide Bergès - 31270 Cugnaux - France Declare that the Product named below: 130 Watt Multi-Function Rotary Tool Model: FMO130-210 Serial number: 20210617208-20210619207 Meets the requirements of the Council Directives: Machine Directive 2006/42 / EC... -
Page 16: Warranty
12. WARRANTY WARRANTY The manufacturer guarantees the product against defects in material and workmanship for a period of 2 years from the date of the original purchase. The warranty only applies if the product is for household use. The warranty does not cover breakdowns due to normal wear and tear. The manufacturer agrees to replace parts identifed as defective by the designated distributor. -
Page 17: Product Failure
13. PRODUCT FAILURE WHAT TO DO IF MY MACHINE BREAKS DOWN? If you bought your product in a store: a) Empty the fuel tank if your product has one. b) Make sure that your machine is complete with all accessories supplied, and clean! If this is not the case, the repairer will refuse the machine. -
Page 18: Warranty Exclusions
14. WARRANTY EXCLUSIONS THE WARRANTY DOES NOT COVER: • Start-up and setting up of the product. • Damage resulting from normal wear and tear of the product. • Damage resulting from improper use of the product. • Damage resulting from assembly or start-up not in accordance with the user manual. •... - Page 19 NOTES...
- Page 20 BUILDER SAS 32, rue Aristide Bergès - ZI 31270 Cugnaux - France MADE IN PRC 2021...
