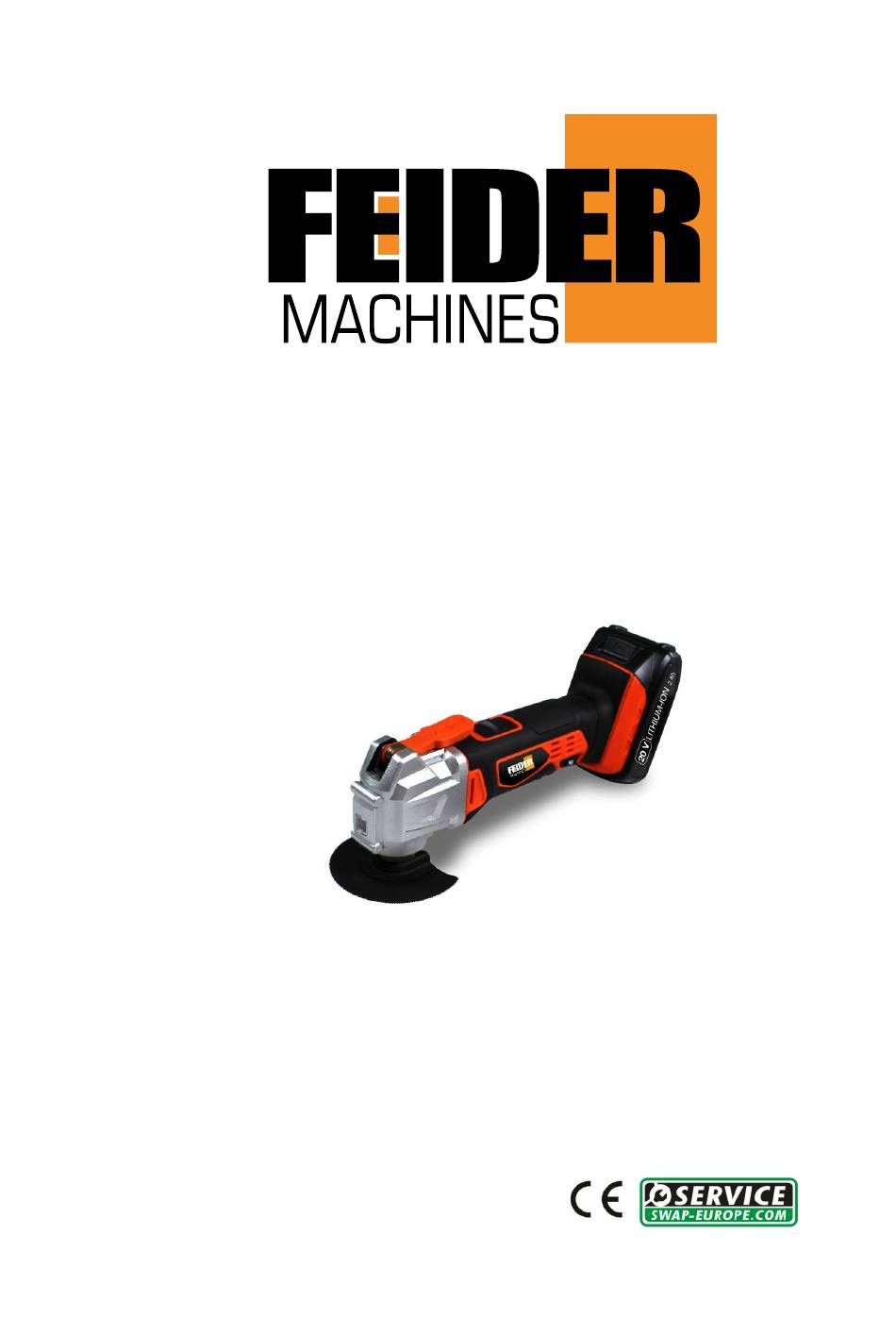

- Page 1 ORIGINAL INSTRUCTIONS CORDLESS MULTI TOOL FMT20V INSTRUCTIONS MANUAL FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France...
-
Page 2: Safety Warnings
1. SAFETY WARNINGS WARNING Read all safety warnings and all instructions. Failure to follow the warnings and instructions may result in electric shock, fire and/or serious injury. Save all warnings and instructions for future reference. The term "power tool" in the warnings refers to your mains-operated (corded) power tool or battery-operated (cordless) power tool. - Page 3 power tool in unexpected situations. f) Dress properly. Do not wear loose clothing or jewellery. Keep your hair, clothing and gloves away from moving parts. Loose clothes, jewellery or long hair can be caught in moving parts. g) If devices are provided for the connection of dust extraction and collection facilities, ensure these are connected and properly used.
- Page 4 Residual risks Some dust created by power sanding, sawing, and grinding, drilling, and other construction activities contains chemicals known to cause cancer, birth defects or other reproductive harm. Some examples of these chemicals are: Lead from lead-based paints. Crystalline silica from bricks and cement and other masonry products. Arsenic and chromium from chemically treated lumber.
-
Page 5: Your Product

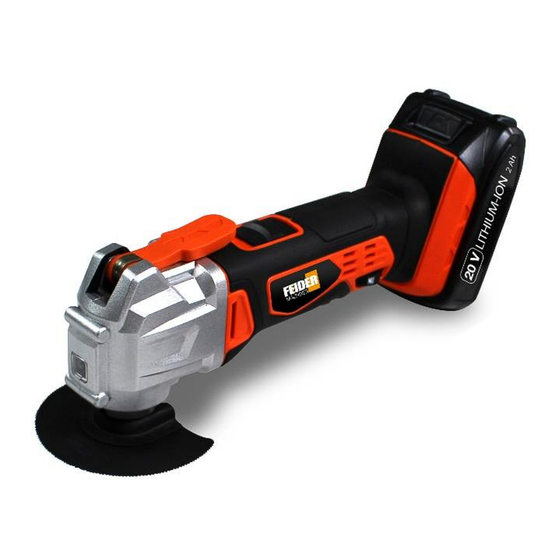

2. YOUR PRODUCT a. Description 1. Quick release lever 7. Scraper 2. ON/OFF switch 8. Segment saw blade 3. Hand grip 9. Sanding pad with dust extraction pipe 4. Battery release catch 10. Tool chuck 5. Li-ion battery 11. Work light 6. - Page 6 Technical data Model FMT20V Voltage 20V dc Sound power level LwA = 88.0dB(A) K= 3dB(A) Sound pressure level LwA= 77.0dB(A) K= 3dB(A) Vibration 4.68m/s² K= 1.5 m/s² Information: The declared vibration total value has been measured in accordance with a standard test method and may be used for comparing one tool with another;...
- Page 7 2. USE...
-
Page 8: Charge Status
a. Charging FEIDER range battery and charger not sold together with this tool. Battery has not been fully charged at the factory. Before using it for the first time, charge the battery for 60min to 130min. Insert the charger plug into the charging socket and plug the charger into a 230V / 50 Hz electrical outlet. Detailed information please read carefully the manual for battery and charger. - Page 9 b. Assembling /function choosing CHANGING ACCESSORIES Note: Before carrying out any assembly or disassembly of the accessories please ensure that the battery is disconnected from the machine. Lift the quick release lever and push it firmly forward over the detent, Fig.5. This will release the tool chuck.
-
Page 10: Led Work Light
SPEED CONTROL (FIG.9) The orbital stroke rate is adjustable. To change the orbital stroke rate, turn the dial between 1 and MAX. The higher the number is, the higher the orbital stroke rate is. Turn the speed control to a desired position. NOTE: The dial cannot be turned directly from 1 to MAX or from MAX to 1. -
Page 11: Maintenance
3. MAINTENANCE WARNING! Always remove battery pack from your tool when you are assembling parts, making adjustments, cleaning, or when not in use. Removing battery pack will prevent accidental starting that could cause serious personal injury. This power tool normally requires no maintenance; from time to time the ventilation slots on the motor casing should be cleaned out. -
Page 12: Declaration Of Conformity (Ce)
5. DECLARATION OF CONFORMITY CE EC Declaration of conformity FEIDER 32, rue Aristide Bergès - ZI 31270 Cugnaux – France declare that the machine Designation: CORDLESS MULTITOOL MODEL: FMT20V Serial number: Is in conformity with the European Directives: Machine Directive 2006/42/EC EMC Directive 2014/30/EU...
