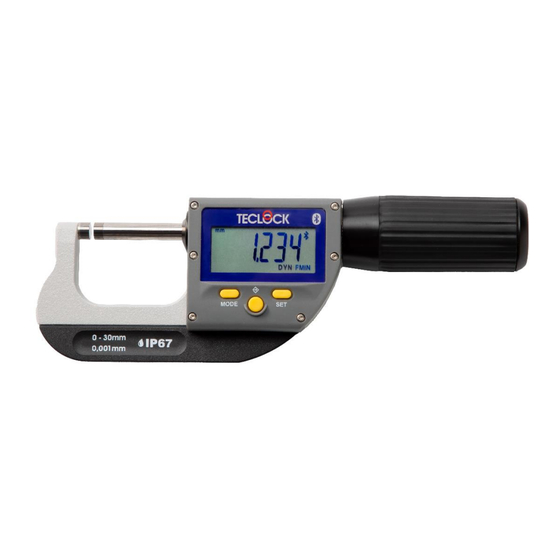

- Page 1 User’s Manual Bluetooth Digital Micrometer 0-30/30-66 型名 : SSM-750/850 Features ➢Resolution：0.001mm ➢Protection：IP67 ➢Ｗｉｒｅｌｅｓｓ Communication：Ｂｌｕｅｔｏｏｔｈ® SSM-750(0-30mm) SSM-850(30-66mm) Q-140-2-E ver1.0...
- Page 2 12. Data transfer indicator 3. Isolate plate 8. Proximity Connecter 13. Locking indicator 4. MODE button 9. Battery cover 14. Bluetooth indicator 5. Favorite button 10. Low battery Indicator 15. FMIN mode indicator SSM-750(0-30mm) SSM-850(30-66mm) 37.3mm 73.3mm 27.5mm 43mm 68mm 74mm 12.5mm 13.5mm...
-
Page 3: Installing And Replacing The Battery
1. Open the battery cover ⑨ using the accessory(opener) provided 2. Change the Battery (Lithium CR2032 type) 3. Check the rubber protection position 4. Close the battery cover ⑨ ★Measuring force adjustment（SSM-750 only） 1. Operation button The instrument has 2 operating modes: basic functions (with direct access) and advanced functions. -
Page 4: Basic Functions
３．Basic functions : button⇒Short press( < 1 sec ) Preset rESEt Reset Bluetooth Short press ４．Advanced functions : button Long press( ≻ 1 sec) Long press Unit : Unit selection (mm or inch). Unit Inch OFF : Automatic switch-off mode. MAn : disabled. -
Page 5: Start Measurement
５．F function The high-speed micrometer features a spring-loaded spindle. This construction ensures high repeatability, thanks to the constant force in the measuring zone. When the FMIN mode is active, the minimum measuring value is automatically stored and displayed. The FMIN stroke value can be set by the user according to his needs (0.010mm to 5.080mm depending on model). - Page 6 6.3. Bluetooth configuration Display status Operating mode Bluetooth disconnected blinking Bluetooth advertising Bluetooth connected reset : clear pairing information MAC : display the MAC address Simple : profile without pairing Pair : paired and secured profile HID : virtual keyboard 6.4.
-
Page 7: Switching Off
7. Favorite key The «favorite» button provides direct access to a predefined function, and can be configured according to the user’s needs. To assign a function to the «favorite» button, press and hold (>2s), then select the desired function: Confirm selection : Long press on or short press on Note:... - Page 8 11. Connecting the instrument * Some of the commands in the table are not available for this instrument, as they are implemented for other instruments. Selection and configuration Interrogation Assign measurement direction Measurement direction? CHA+ / CHA- CHA? CHA+:positive sense / CHA-:negative sense Response : CHA+ / CHA- «favourite»...
-
Page 9: Specifications
12. Specifications Specification Items SSM-750 SSM-850 Measuring range 0-30mm 30-66mm Resolution 0.001mm 0.001mm Measureing force Ajustable 5N/10N Indication error ±2µm ±2µm Repeatabirity 1µm 1µm Probe/Anvil Flatness 0.6µm 0.6µm Probe/Anvil Parallelism 2µm 2µm Advance 10mm/rotation 10mm/rotation Number of refreshments display 10 times/s... - Page 10 14. Certification The Bluetooth® word mark and logos are registered trademarks owned by the Bluetooth SIG, Inc. and any use of such marks by Teclock is under license. Other trademarks and trade names are those of their respective owners. ➢U.S./Canada |￣...
- Page 11 ➢Brazil ➢South Korea ➢Taiwan...
- Page 12 CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
