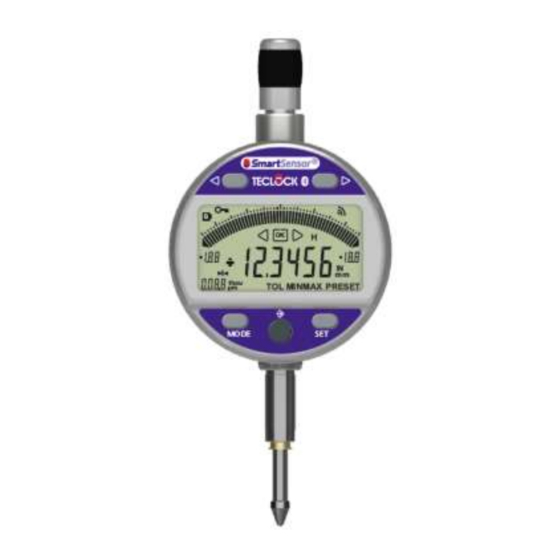

- Page 1 User’s Manual Bluetooth Digital Indicator 1/10000 Type : SSI-650 Features ➢Resolution ：0.0001mm ➢Protection ：IP54 ➢Ｗｉｒｅｌｅｓｓ Communication ：Ｂｌｕｅｔｏｏｔｈ Q-143-1-J ver1.2...
- Page 2 Description ⑪ Low battery ⑫ + / - Indicator ⑬ Keypad lock ⑭ 7-digit display ⑮ Hold measured value ⑯ Send data ⑰ Measurement units (mm / INCH) ⑱ Preset mode ① MODE button ⑲ Analogue scale ② SET button ⑳...
-
Page 3: Installing And Replacing The Battery
★Installing and replacing the battery 1. Operating features of the instrument ①Button The instrument has two operating modes: basic functions (direct access) and advanced functions. In addition to the configuration functions, available access to the MIN, MAX and DELTA mode, or display of tolerances (see chaps. -
Page 4: Basic Functions
3. Basic functions Each short press on gives direct access to the basic functions : ・Normal mode : Zero reset ・Min (Max) mode : Preset on the measured min (max) value ・Inputting a Preset value (see chap. 7) ・Assign NORMAL/MIN/MAX/DELTA mode (see chap. - Page 5 5. Work in MINIMUM, MAXIMUM and DELTA mode : In this operating mode, the digital display stores the MIN, MAX or DELTA value. On the other hand, the analogue scale always indicates the current measured value. - A short press on resets the MIN/MAX stored value (CLEAr) - A long press (>2s) on assigns the Preset value to the position of current measurement.
-
Page 6: Entering A Numeric Value
7. Entering a numeric value To enter or modify a numeric value (Preset, nominal ratings, tolerance intervals or multiplication factor), you can proceed in two ways : 7.1 Increases / decreases the current value : Decreases the current value Increases the current value Note: - the scanning speed increases with a long press on the button - save the value with one of the three lower buttons 7.2 Entering digit by digit :... - Page 7 9. Operation via Bluetooth 9.1. HID mode（External Key board mode） 9.3. Bluetooth configuration ①Set HID mode by Advanced function. Display status Operating mode ②Set BT On mode by Advanced function. Bluetooth disconnected ③Reset Bluetooth mode by Basic function. ④Pairing connection the instrument to the PC. blinkinng Bluetooth advertising （Instrument name：S_Dial Work HID）...
- Page 8 10. Favorite key The «favorite» key gives direct access to a predefined function, and can be configured according to the needs of the user. In order to assign a function to the «favorite» key, give a prolonged press on and then select the required function : Validation of selection: By a prolonged press on or a short press on Note : - A function can also be assigned via RS232 using the command <FCT + Function No.>...
-
Page 9: Switching Off
12. Switching off The dial gauge goes automatically into stand-by if not used for 10 minutes, unless automatic switch-off mode has been turned off (see Chap. 4, advanced functions). Stand-by mode can be forced by a prolonged press (> 2 sec) on In stand-by mode, the value of the origin is retained by the sensor (SIS mode), and the instrument Bluetooth®... -
Page 10: Serial Communication Commands
Switch-off (wake up using a button or RS) Reset the instrument Put instrument in stand-by mode(SIS) FAC RST Reset (Restores the factory parameters) Inputting current tolerance limits TOL +/-nnn.nnn +/-xxx.xxx +/-yyy.yyy n :nominal value / (In the case of SSI-650） x :lower tolerance limit/y :upper tolerance limit... -
Page 11: Specifications
17. Specifications Items Specification Measuring range 12.5 mm Resolution 0.0001 mm Measureing force 0.65～0.9 N Indication Error 1.8 µm Repeatabirity 0.5 µm MAX. speed of travel 1.7 m/s No. of measurements /second Normal mode : up to 10 meas/s , MIN/MAX mode : 20 meas/s Data output Bluetooth/USB/RS232 Data output parameter... - Page 12 CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
