Summary of Contents for TECLOCK SSC-650

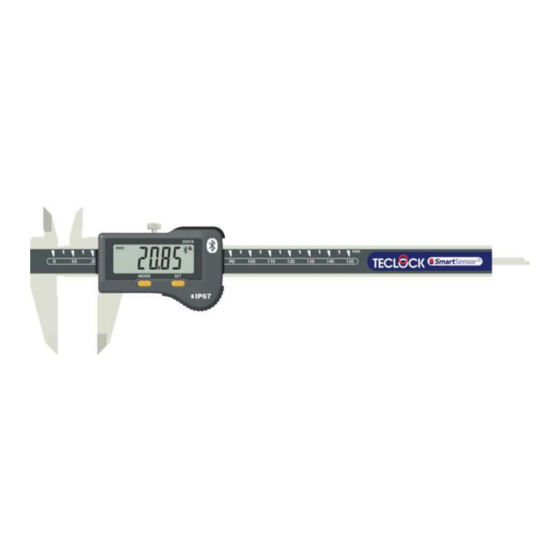

- Page 1 User’s Manual Bluetooth Digital Caliper 150/200/300 Type : SSC-650/750/850 Features ➢Measuring Range ：150mm/200mm/300mm ➢Resolution ：0.01mm ➢Protection ：IP67 ➢Wireless communication ：Ｂｌｕｅｔｏｏｔｈ Q-139-1-E ver1.4...
- Page 2 Description SSC-650 Measuring Range：0-150mm 。 SSC-750 Measuring Range：0-200mm SSC-850 Measuring Range：0-300mm Unit：mm Depth rod SSC-650 234.5 16x3.5 4x1.4 SSC-750 290.5 16x3.5 4x1.4 SSC-850 16x4...
-
Page 3: Operation
Description Internal Jaw DATA Depth Rod MODE External Jaw ★Operation ①Button MODE There are two functions, Basic one and Advanced one. ②Button DATA In the case of measuring, Data transmission. In the case of setting, Data enter. ③Button Preset by long press. In the case of setting, Data change. ④Serial communication（Bluetooth/RS232/USB）... - Page 4 [2] Advanced functions : MODE button⇒Long press( ≻ 1 sec) inch Unit Bluetooth Profile Simple Paired and Secure (2) not available with Simple profile (3) Active configuration displays first [3] Switching off [4]Favorite setting : DATA button⇒Long Press( ≻ 1 sec) SET button⇒Long Press( ≻...
- Page 5 [6] Operation via Bluetooth 6.1. HID mode（External Key board mode） 6.3.Bluetooth configuration ①Set HID mode by Advanced function. Display status Operating mode ②Set BT On mode by Advanced function. Bluetooth disconnected ③Reset Bluetooth mode by Basic function. blinking Bluetooth advertising ④Pairing connection the instrument to the PC.
-
Page 6: Maintenance
[7]仕様 Items SSC-650 SSC-750 SSC-850 Resolution(mm) 0.01 Measuring Range(mm) 0～150 0～200 0～300 ±0.02(0-100mm) ±0.02(0-100mm) ±0.02(0-100mm) Indication Error(mm) ±0.03(100-150mm) ±0.03(100-200mm) ±0.03(100-300mm) Repeatabirity(mm) ±0.01 Max slider speed(m/sec) Display refresh rate(times/sec) min 10 Data output Bluetooth Mean power consumption(μA) Battery life about 6 months(general using) Woking temperature(℃) - Page 7 [9]Description of Bluetooth® module: This module is based on Nordic Semiconductor nRF8001 μBlue Bluetooth Low Energy Platform. The nRF8001 is a single chip transceiver with an embedded baseband protocol engine, suitable for ultra-low power wireless applications conforming to the Bluetooth Low Energy Specification contained within v4.0 of the overall Bluetooth specification.
-
Page 8: Certificate Of Calibration
CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
