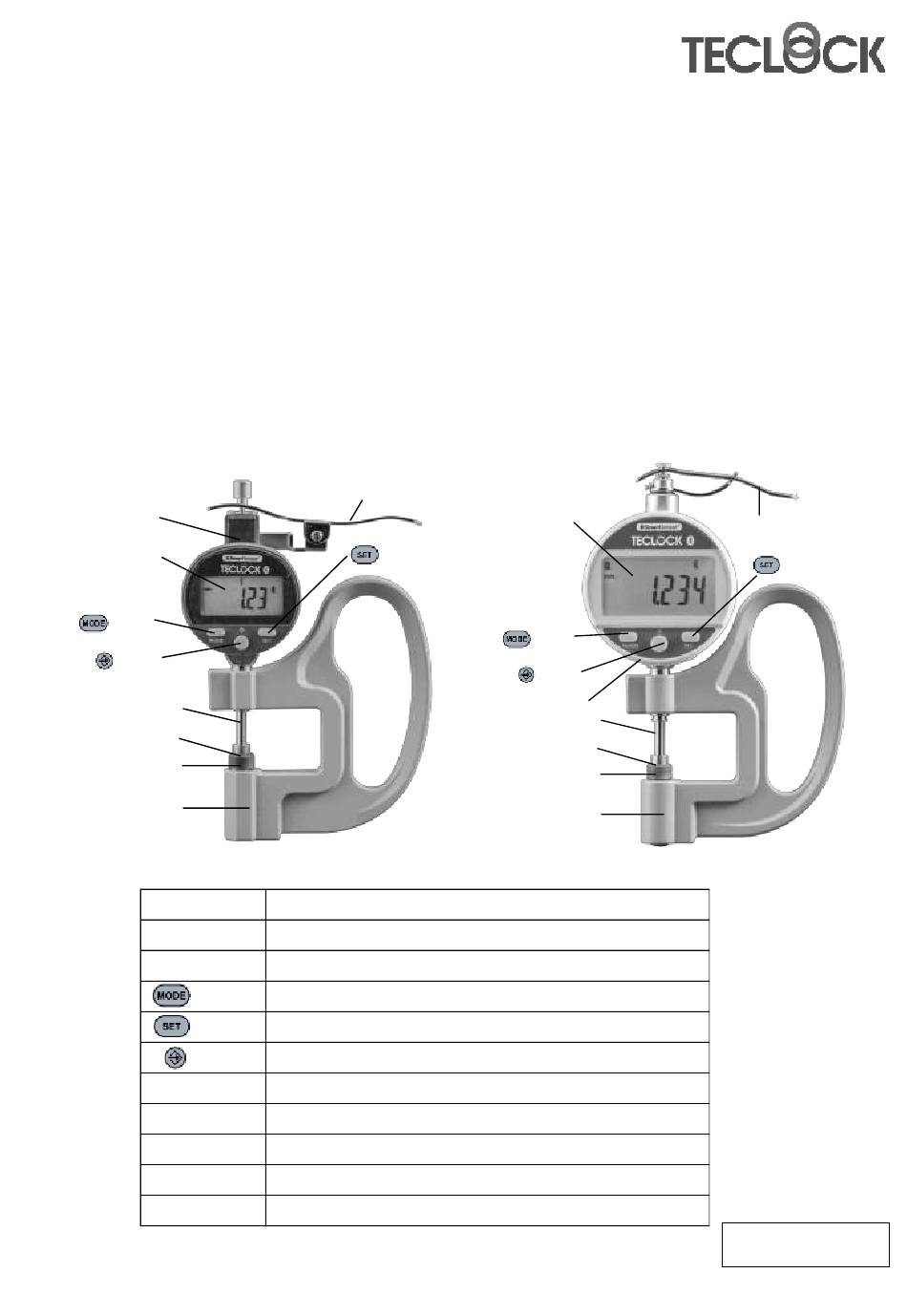

User's Manual

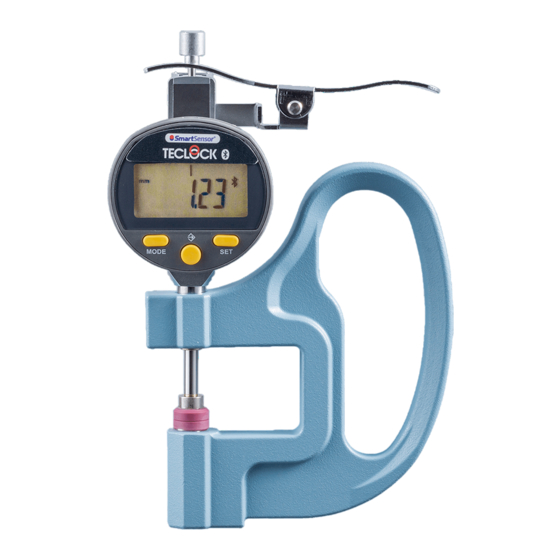

Bluetooth Digital Thickness Gauge
Battery Cover
Display
Button
Button
Spindle
Probe
Anvil
Flame
ＳＳＳ－５４０
Parts
Battery Cover
Display
Button
Button
Button
Lift Lever
Flame
Spindle
Probe
Anvil
Type : SSS Series
Lift Lever
Button
for exchange the Battery(CR2032)
Display Measuring value, Setting mode, etc.
Basic function by short press, Advanced function by long press
Change each mode, digit, etc.
Send button on Measuring, Enter button on setting
Lifting lever for putting in work
Flame
Measuring axis
Contact point
Base of measuring
*1) Refer to Indicator manual for detail operation.
*2) Refer to Chapter 6 about Probe shape.
Display
Button
Button
Battery Cover
Spindle
Probe
Anvil
Flame
Features
1
Lift Lever
Button
ＳＳＳ－５６５０
Q-150-1-E Ver1.4
Advertisement
Table of Contents
Related Manuals for TECLOCK SSS Series
Summary of Contents for TECLOCK SSS Series
- Page 1 User’s Manual Bluetooth Digital Thickness Gauge Type : SSS Series Lift Lever Battery Cover Display Lift Lever Button Display Button Button Button Button Button Battery Cover Spindle Spindle Probe Probe Anvil Anvil Flame Flame ＳＳＳ－５６５０ ＳＳＳ－５４０ Parts Features Battery Cover...
- Page 2 Descriptions ＳＳＳ－５４０ ＳＳＳ－５４０ Unit:mm Φ10 72.5 ＳＳＳ－５５０ 25.4 ＳＳＳ－５６５０ Φ10 (Φ15) 72.5...
- Page 3 １．Power on/off operation （１）Power on Press any button, then Power on. （２）Power off ① Long press button(2 sec. or more), then it is standby and display is disappeared. ② Long press button(4 sec. or more), then 「ｏｆｆ」displayed and Power off. ※）In the case of no using for a long time, do ②...
- Page 4 ３．Measuring （１）Setting zero point ① Hold this Moving arm in standing position. ② Short press button, 「Zero」displayed and reset. （２）Measuring a thickness ① Place a work between contact point and anvil by Lift lever. ② Press button, then measuring data is sent to PC. 4.Maintenance Carefully dry all mechanical parts of the instrument after contact with liquids to ensure proper operation and avoid corrosion.
- Page 5 ７．Specifications Type SSS-540 SSS-540-LS SSS-540-LW SSS-540-3A SSS-550 SSS-550-LS SSS-550-LW SSS-550-3A SSS-5650 SSS-130 0.01 Resolution(mm) 0.001 0.01 Measuring range(mm) 50(25) ±20 Indication error(μm) ±3 ±20 Measuring force(N) 1.2 or less 1.2 or less 1.2 or less Contact point(mm) Φ10Flat Φ3.2Ball Φ3.2Ball Φ5Flat Φ10Flat Φ3.2Ball...
- Page 6 CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
