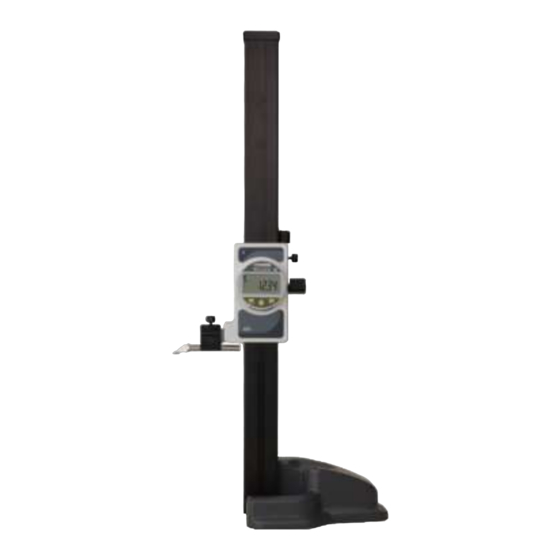

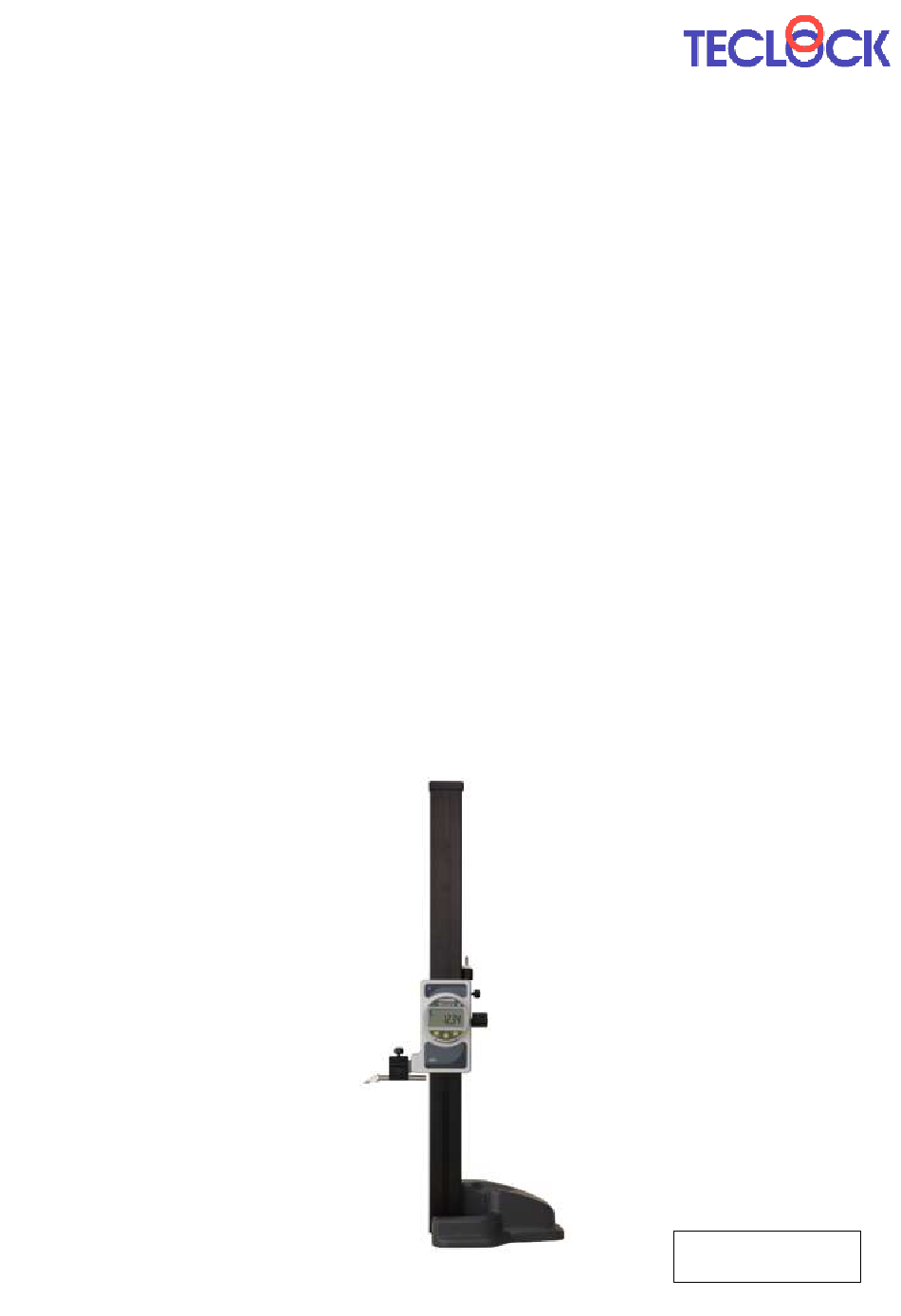

- Page 1 User’s Manual Bluetooth Digital Hight Gauge Type : SSH-R1400/SSH-R1600 Features ➢Measuring Range ：400mm/600mm ➢Resolution ：0.01mm ➢Ｗｉｒｅｌｅｓｓ Communication ：Ｂｌｕｅｔｏｏｔｈ Q-162-1-E ver1.2...
- Page 2 Description ２０．Automatic reference mode indicator １．Base ２１．Data sending ２，Post ２２，Diameter / groove mode indicator ３．Carriage ２３．Preset Mode ４．Fast Movement ２６．Active reference indicator ５．Carriage Lock ２７．Unit(mm) ６．Fine Adjustment ２８．+/-Indicator ７．Probe Folder ２９．Low battery Dimensions ８．Probe ９．Display １０．ＭＯＤＥ Button １１．ＳＥＴ Button １２．SEND Button １３．Slot for battery １４．Slot for interface cable Unit :mm...
-
Page 3: Installing And Replacing The Battery
★ Installing and replacing the battery ★Changing the probe ＊）Comply with the probe orientation ! ★Using the carriage ➢Rapid carriage movement : Turn the lever (4) and Updown ➢fine adjustment : Tighten the carriage locking knob (5) and rotate the knob (6). - Page 4 1. Operating features of the instrument ①Button The instrument has two operating modes: basic functions (direct access) and advanced functions. In addition to the configuration functions, you can access to MIN, MAX and DELTA mode, plus input of multiplication factor other than 1:1 (see chaps. 3 and 4). ②Button The <favorite>...
-
Page 5: Basic Functions
3. Basic functions Each short press on gives direct access to the basic functions : ・Choice of reference： REF1/REF2/AutoREF rEF1 rEF2 Auto ・Inputting a preset value： ：Next ：Digit 0-9 ：Save ・Selection of Measurement mode： OFF：Surface measurement ON：Diameter/Groove ・Bluetooth ON/OFF ・Reset Pairing mode ・Display the MAC add. - Page 6 5. Taking a constant with a calibration block Block Gauge “CSt” ：Constant value for reference measurement Press the CST key and touch one of the Note) The probe constant must ground surfaces of the cylindrical gauge. be re-entered after change of Release the probe and touch the opposite probe or after modifying the surface.
- Page 7 7. Operation via Bluetooth 7.1. HID mode（External Key board mode） 7.3. Bluetooth configuration ①Set HID mode by Advanced function. Display status Operating mode ②Set BT On mode by Advanced function. Bluetooth disconnected ③Reset Bluetooth mode by Basic function. ④Pairing connection the instrument to the PC. blinkinng Bluetooth advertising （Instrument name：Hi Gage HID）...
- Page 8 ８. Favorite key The «favorite» key gives direct access to a predefined function, and can be configured according to the needs of the user. In order to assign a function to the «favorite» key, give a prolonged press on and then select the required function : Validation of selection: By a prolonged press on or a short press on Note :...
- Page 9 12. Serial communication commands Selection and configuration Interrogation Assign measurement direction Measurement direction? CHA+ / CHA- CHA? CHA+:positive sense / CHA-:negative sense Response : CHA+ / CHA- «favourite» function ? FCT0 / FCT1 / … / FCTA / … / FCTF Assign «favourite» function FCT? Response : FCT0～FCTF Assign measurement unit...
- Page 10 Carefully dry all mechanical parts of the instrument after contact with liquids to ensure proper operation and avoid corrosion. Don’t use aggressive products (alcohol, trichloroethylene or others) to clean plastic parts. Don’t expose the instrument to direct sunlight, heat or humidity. 14. Specifications Type SSH-R1400 SSH-R1600 0.01 Resolution(mm) Measuring range(mm) 0-400...
- Page 11 CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
