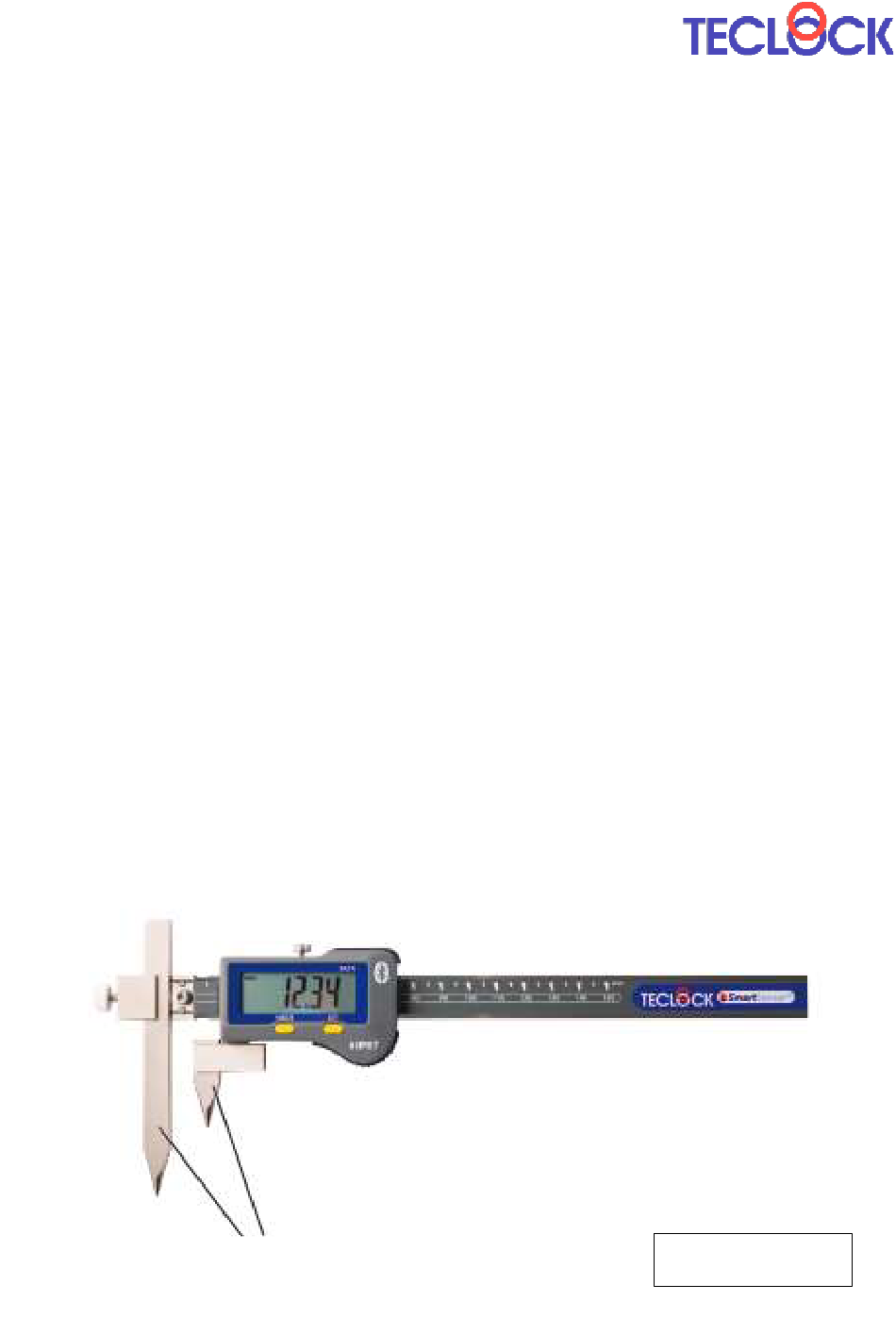

- Page 1 User’s Manual Bluetooth Digital Pitch Caliper Type : SSC-650P/650E/650C Features ➢Measuring easily Pitch hole to hole or Pitch edge to hole ➢Resolution ：0.01mm ➢Wireless communication ：Bluetooth Q-148-1-E ver1.1 Flat plate Cone...
- Page 2 Description Dimensions Unit : mm Flat plane cone ■Measuring Pitch hole to hole or Pitch edge to hole Edge to Hole plane cone Dimensions Cone Unit : mm Flat plane ■Measuring Pitch edge to hole Dimensions Unit : mm Cone ■Measuring Pitch hole to hole...
-
Page 3: Operation
It is able to transmit the measuring data and set the mode data by serial communication. Transmission specification are 4800bps, 7 bits, even parity and 2 stop bits. [1] Basic functions : MODE button⇒Short press( < 1 sec ) Short press Long press Preset value SSC-650P 10.00mm set the preset value SSC-650E 10.00mm SSC-650C 20.00mm... - Page 4 [2] Advanced functions : MODE button⇒Long press( ≻ 1 sec) inch Unit Simple Bluetooth Profile Paired and Secure (2) not available with Simple profile (3) Active configuration displays first [3] Switching off [4]Favorite setting : DATA button⇒Long Press( ≻ 1 sec) SET button⇒Long Press( ≻...
- Page 5 [6] Operation via Bluetooth 6.1. HID mode（External Key board mode） 6.3.Bluetooth configuration ①Set HID mode by Advanced function. Display status Operating mode ②Set BT On mode by Advanced function. Bluetooth disconnected ③Reset Bluetooth mode by Basic function. blinking Bluetooth advertising ④Pairing connection the instrument to the PC.
-
Page 6: Maintenance
[7]仕様 Items SSC-650P SSC-650E SSC-650C Resolution(mm) 0.01 Measuring Range(mm) 5～150/10～150 10～150 20～150 Indication Error(mm) ±0.03 ±0.03 ±0.03 Repeatabirity(mm) ±0.01 Max slider speed(m/sec) Display refresh rate(times/sec) min 10 Data output Bluetooth Mean power consumption(μA) Battery life about 6 months(general using) Woking temperature(℃) 5～40... - Page 7 [9]Description of Bluetooth® module: This module is based on Nordic Semiconductor nRF8001 μBlue Bluetooth Low Energy Platform. The nRF8001 is a single chip transceiver with an embedded baseband protocol engine, suitable for ultra-low power wireless applications conforming to the Bluetooth Low Energy Specification contained within v4.0 of the overall Bluetooth specification.
-
Page 8: Certificate Of Calibration
CERTIFICATE OF CALIBRATION We hereby certify that this product has been calibrated and found to be in accordance with the applicable NATIONAL STANDARDS and TECLOCK STANDARDS, Equipment used in this calibration has traceable accuracy to the NATIONAL LENGTH and FORCE STANDARD.
