Veris Industries Hawkeye 10F Installation Manual

H10F
Wiring Example
CONTACTOR
Motor
Z204651-0E PAGE 1
CURRENT MONITORING
Insulated DDC CONTROLLER
conductor
only
DI
Pump or Fan
©2007 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com
INSTALLATION GUIDE

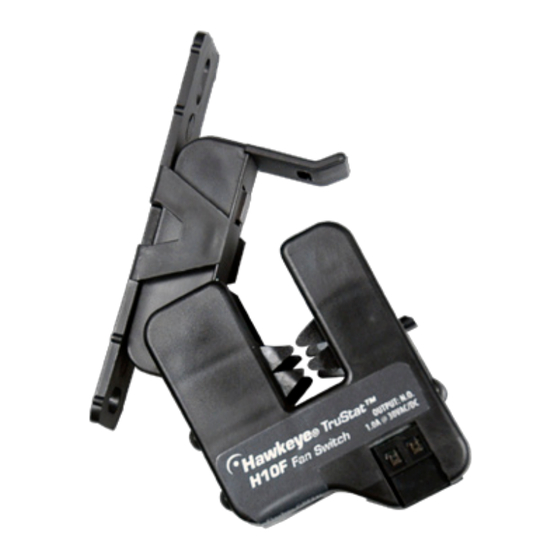

Split-Core, Auto-calibration, Current Switch
Installer's Specifications
Amperage Range
Sensor Supply Voltage
Isolation
Temperature Range
Humidity Range
Status Output Ratings
On-state Resistance
Off-state Resistance
Frequency Range
Setpoint Target Range ±20% window around learned setpoint, nominal@25˚C*
Alarm Reset Range ±15% window around learned setpoint, nominal@25˚C*
Setpoint Calibration Learn Period
NORMAL-to-ALARM Status Output Delay
ALARM-to-NORMAL Status Output Delay
*For best performance, monitor 5A or more current. At currents less than 5A, these ranges are approximate.
**If current switch experiences a momentary loss of power, 30 second delay may or may not apply.
Specification Note: For CE compliance, conductor shall be insulated according to IEC 61010-1:2001, Installation
Category III or equivalent. The unit design provides for basic insulation only.
quick install
1. Plan the installation:
Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the iris, or "window" when it is installed
and keep the product at least 1/2" from any uninsulated conductors (CE). Determine
cable routing for the controller connection, allowing wiring to reach the mounting
location.
2. Install mounting bracket
Drill holes to mount the bracket to the chosen surface using the included screws.
3. Wire the output connections between the sensor and the controller (solid-state
contact).
4. Snap the sensor over the wire to be monitored and clip the assembly to the
mounting bracket.
5. Close up and power up!
Dimensions
Removable Mounting Bracket
2.1"
(54 mm)
(13 mm)
2.0"
(51 mm)
0.4" x 0.2"
(10 mm x 5 mm)
Slot (2x)
(74 mm)
10F
3.5-100A Continuous
Induced from monitored conductor
600VAC rms.(UL); 300VAC rms (CE)
10-90% RH non-condensing
N.O. 1.0A@30VAC/DC not polarity sensitive
Self-learning on 5 sec pushbutton actuation,
30 sec. learn period
30 seconds nominal**
1.2"
(31 mm)
0.6"
(16 mm)
0.5"
2.5"
(64 mm)
2.1"
(54 mm)
1.0"
(26 mm)
2.9"
3.5"
(89 mm)
-15º to 60º C
≤1.0 ohms
≥1 megohm
50/60Hz
1 second max.
09071
