Veris Industries H909 Installation Manual

H909
Wiring ExamplE
CONTACTOR
Insulated Conductor
Z201495-0B PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
CURRENT MONITORING
CONTROLLER
Digital
Input
MOTOR
Fan or Pump
©2009 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com

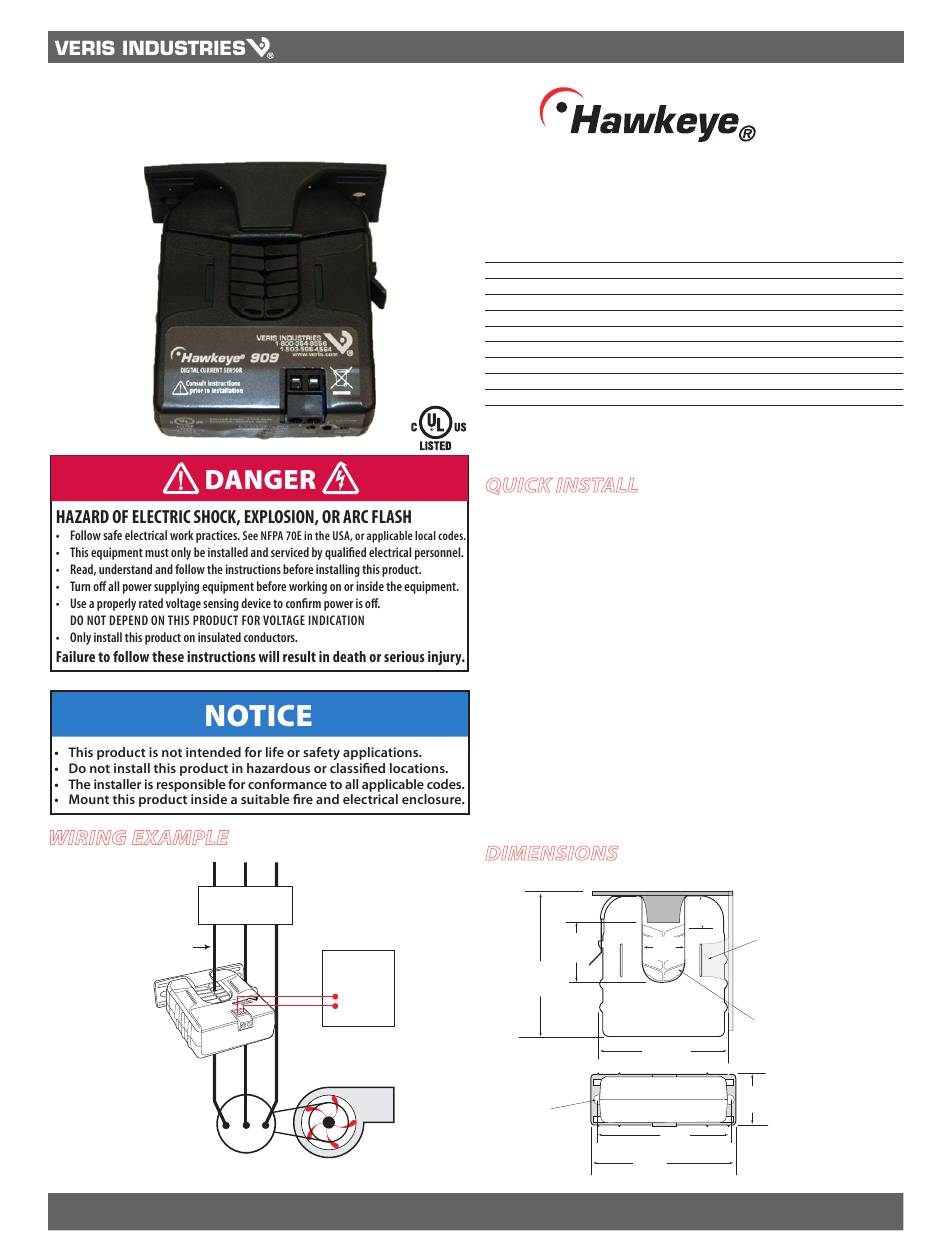

INSTALLATION GUIDE

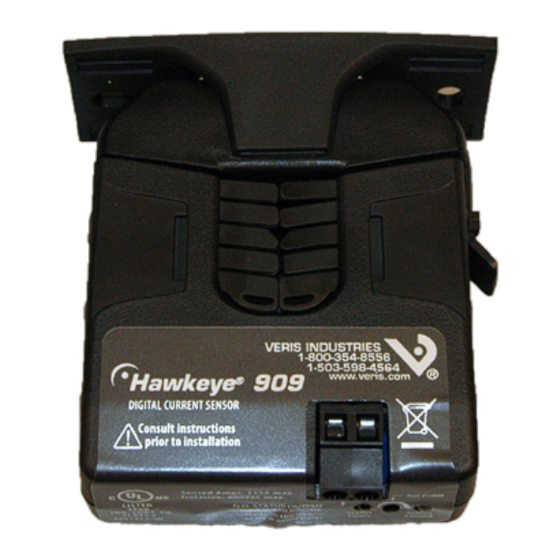

Split-Core Current Switch, Adjustable Trip Point,
120VAC/DC Output
Installer's Specifications
Sensor Power
Insulation Class
Frequency Range
Temperature Range
Humidity Range
Amperage Range
Output
Hysteresis
Off-State Leakage
Safety
Specification Note: For CE compliance, conductor shall be insulated according to IEC 61010‑1:2001,
Installation Category III or equivalent.
The product design provides for basic insulation only.
quick install
1. Disconnect and lock out power to the conductor to be monitored.
2. Plan the installation:
Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the iris, or "window" when it is installed
and keep the product at least 1/2" (13mm) from any uninsulated conductors (CE).
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
3. Install mounting bracket
Drill holes to mount the bracket to the chosen surface using the included screws.
4. Wire the output connections between the sensor and the controller (solid-state
contact).
5. Snap the sensor over the wire to be monitored and clip the assembly to the
mounting bracket.
6. Calibrate the sensor (see page 2) with the load running normally.
DimEnsions
Removable Mounting Bracket
1.1"
0.8"
(26 mm)
(21 mm)
3.1"
(79 mm)
2.8"
(70 mm)
Ø = 0.3"
(8 mm)
(64 mm)
3.0"
(76 mm)
909
Induced from monitored current
600VAC rms (UL), 300VAC rms (CE)
-15° to 60°C (5° to 140°F)
10-90% RH non-condensing
2.5 - 135A Continuous
N.O. 200mA@120VAC/DC, polarity insensitive
10% of setpoint, typical
UL 508, IEC 61010-1: 2001 CAT III
1.0"
(25 mm)
Bracket can be mounted
on either side for added
installation flexibility.
Self-gripping
Iris
Use DIN Rail
1.4"
Mounting clip
(36 mm)
(Veris part
2.5"
number AH01) to
mount on stan‑
dard DIN rail.
50/60Hz
1+ MΩ
05092
