Veris Industries Hawkeye 959 Installation Manual

HAZARD OF ELECTRIC SHOCK, EXPLOSION, OR ARC FLASH
• Follow safe electrical work practices. See NFPA 70E in the USA, or applicable local codes.
• This equipment must only be installed and serviced by qualified electrical personnel.
• Read, understand and follow the instructions before installing this product.
• Turn off all power supplying equipment before working on or inside the equipment.
• Use a properly rated voltage sensing device to confirm power is off.
DO NOT DEPEND ON THIS PRODUCT FOR VOLTAGE INDICATION
• Only install this product on insulated conductors.
Failure to follow these instructions will result in death or serious injury.
• This product is not intended for life or safety applications.
• Do not install this product in hazardous or classified locations.
• The installer is responsible for conformance to all applicable codes.
• Mount this product inside a suitable fire and electrical enclosure.
WIRING EXAMPLE
CONTACTOR
Motor
Z201504-0C PAGE 1
Alta Labs, Enercept, Enspector, Hawkeye, Trustat, Veris, and the Veris 'V' logo are trademarks or registered trademarks of Veris Industries, L.L.C. in the USA and/or other countries.
Find Quality Products Online at:
CURRENT MONITORING
TM
H959
DANGER
NOTICE
CONTROLLER
DO
(Relay
Coil)
DI
(Status)
CONTROL
POWER
Fan or Pump
©2012 Veris Industries USA 800.354.8556 or +1.503.598.4564 / support@veris.com
GlobalTestSupply
www.

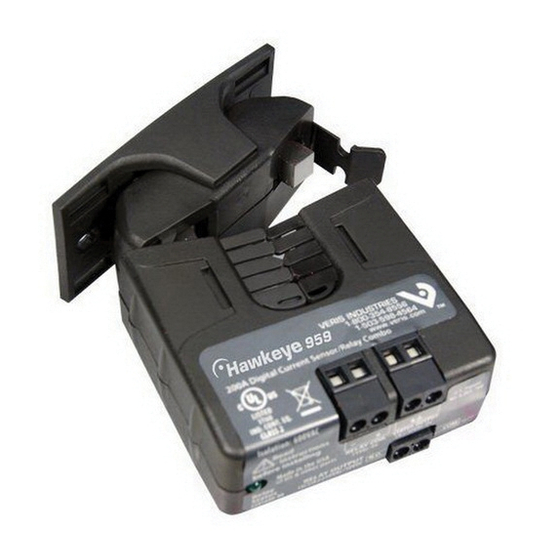

INSTALLATION GUIDE
Split-Core Current Switch, High Voltage Output,
with Command Relay
Installer's Specifications
Sensor Power
Insulation Class
Frequency Range
Temperature Range
Humidity Range
Hysteresis
Terminal Block Maximum Wire Size
Terminal Block Torque (nominal)
Safety
Do not use the LED status indicators as evidence of applied voltage.
INSTALLATION
Disconnect and lock out power to the enclosure containing the
conductor to be monitored.
1. Locate a mounting surface for the removable mounting bracket that will allow
the monitored conductor to pass through the center window when it is installed
and that will keep the device at least 1/2" from any uninsulated conductors.
Determine cable routing for the controller connection, allowing wiring to reach
the mounting location.
2. Install mounting bracket to the chosen surface using the included screws.
3. Wire the output connections between the sensor and the controller.
4. Snap the sensor over the conductor to be monitored and clip the assembly to the
mounting bracket.
5. Secure enclosure and reconnect power
6. Calibrate the sensor (see Calibration section).
DIMENSIONS
Removable Mounting Bracket
1.1"
0.8"
(26 mm)
(21 mm)
3.1"
(79 mm)
(70 mm)
Ø = 0.3"
(8 mm)
3.0"
(76 mm)
.com
959
TM
Induced from monitored conductor
600VAC RMS
-15° to 60°C (5° to 140°F)
10-90% RH, non-condensing
10% Typical
4 in-lbs (0.45 N-m)
UL508 open device listing
1.0"
(25 mm)
Bracket can be mounted
on three sides for added
installation exibility.
Self-gripping
Iris
2.8"
Use DIN Rail
1.4"
Mounting clip
(36 mm)
(Veris part
2.5"
number AH01) to
(64 mm)
mount on stan-
dard DIN rail.
sales@GlobalTestSupply.com
50/60Hz
14 AWG
01122
