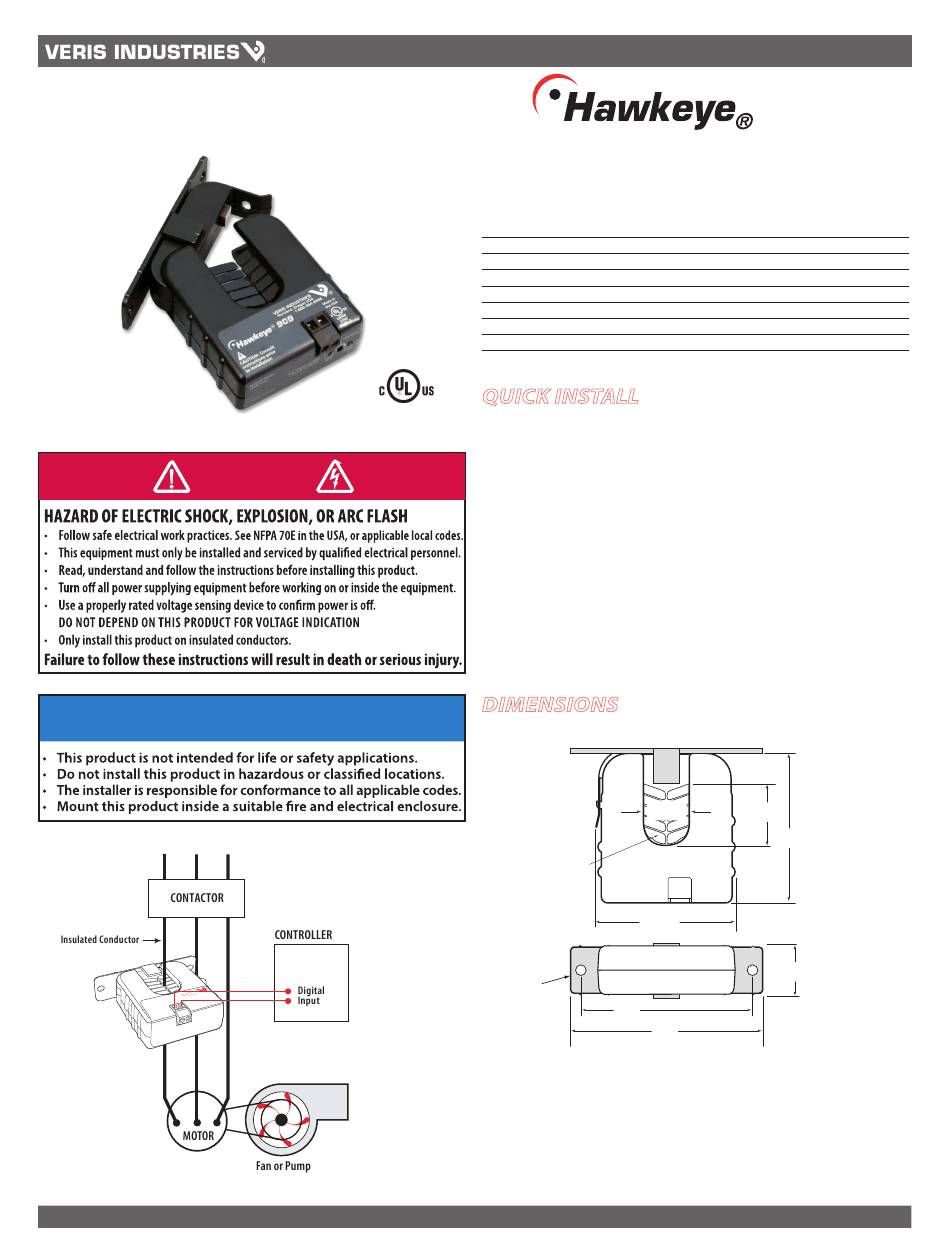

Veris Industries Hawkeye 909 Installation Manual

H909
DANGER
NOTICE
Wiring Example
Z201495-0A page 1
CURRENT MONITORING
©2007 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com
INSTALLATION GUIDE
Split-Core, Adjustable Current Switch
with 120VAC/DC Output
Installer's Specifications
Amperage Range
Sensor Supply Voltage
Isolation
Temperature Range
Humidity Range
Status Output
On-State Resistance (max)
Off-State Resistance (min)
*When operating at 50Hz, low threshold may be 2.6A
quick install
1. Plan the installation:
Locate a mounting surface for the removable mounting bracket that will allow the
monitored conductor to pass through the iris, or "window" when it is installed. Determine
cable routing for the controller connection, allowing wiring to reach the mounting location.
2. Install mounting bracket
Drill holes to mount the bracket to the chosen surface using the included screws.
3. Wire the output connections between the sensor and the controller (solid-state contact).
4. Snap the sensor over the wire to be monitored and clip the assembly to the mounting bracket.
5. Calibrate the sensor (see page 2) with the load running normally.
6. Close up and power up!
Dimensions
Removable Mounting Bracket
0.8"
(20 mm)
Self-gripping Iris
2.8"
(71 mm)
.2"
(5 mm)
3.3"
(84 mm)
3.7"
(94 mm)
909
2.5 to 135A Continuous*
Induced from monitored conductor
600VAC rms.
-15º to 60º C
10-90% RH non-condensing
N.O. 200mA@120VAC/DC
20 ohms
1 megohm
1.1"
(28 mm)
3"
(76 mm)
1.1"
(27 mm)
03071
