H908
DANGER
NOTICE
Wiring Example
���������
�������������������
�����
Z201494-0D
page 1
CURRENT MONITORING
����������
�������
�����
�����������
©2006 Veris Industries USA 800.354.8556 or 503.598.4564 / support@veris.com

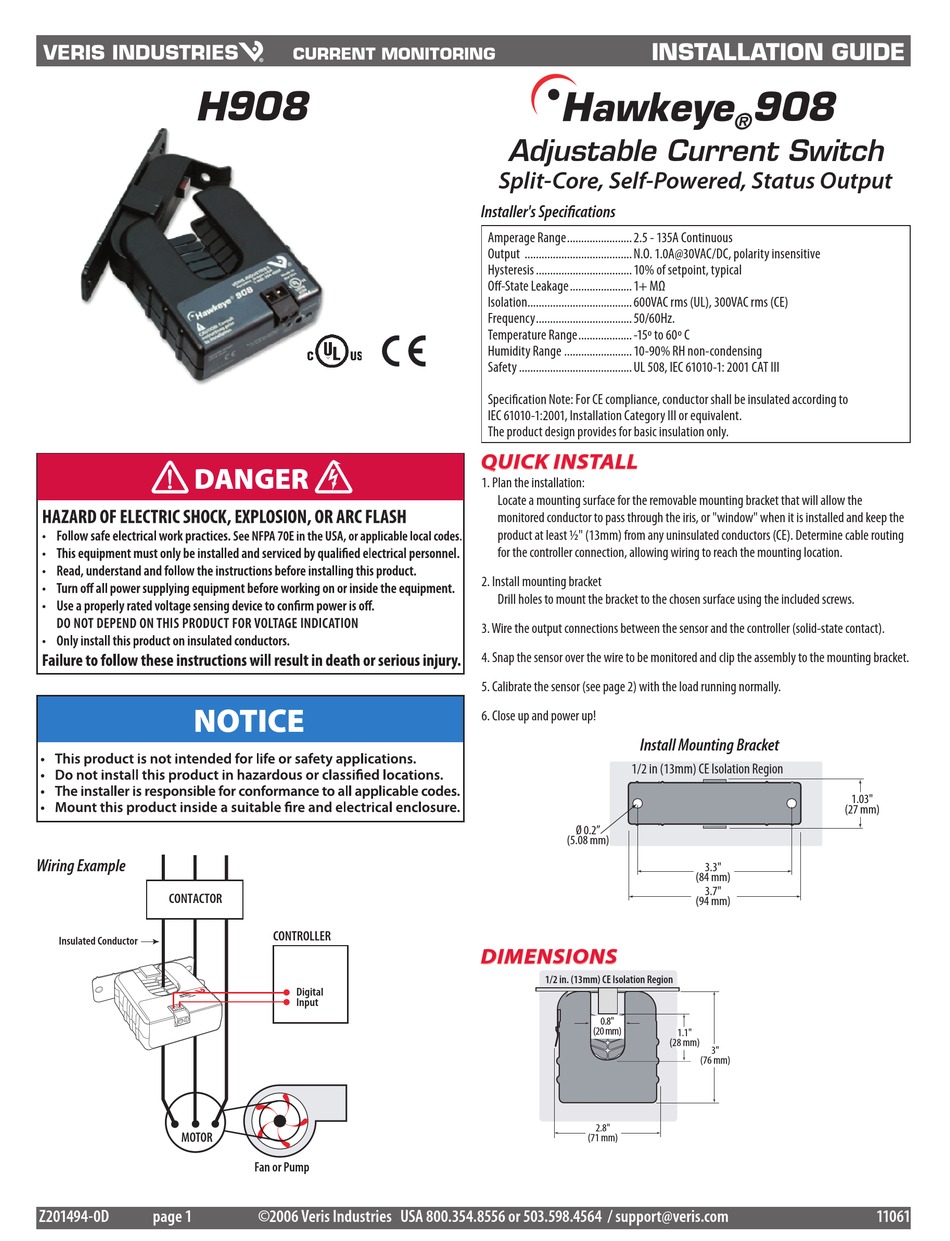

INSTALLATION GUIDE

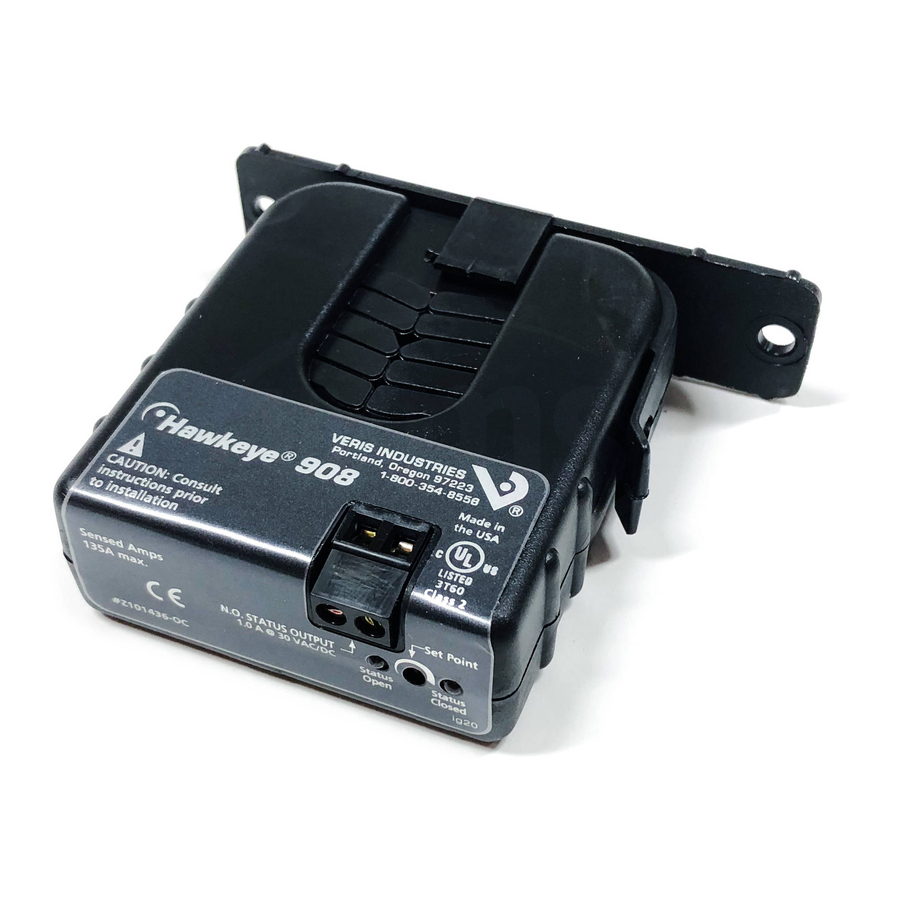

Adjustable Current Switch
Split-Core, Self-Powered, Status Output
Installer's Specifications
Amperage Range ....................... 2.5 - 135A Continuous
Output ...................................... N.O. 1.0A@30VAC/DC, polarity insensitive
Hysteresis .................................. 10% of setpoint, typical
Off-State Leakage ...................... 1+ MΩ
Isolation ..................................... 600VAC rms (UL), 300VAC rms (CE)
Frequency .................................. 50/60Hz.
Temperature Range ................... -15º to 60º C
Humidity Range ........................ 10-90% RH non-condensing
Safety ........................................ UL 508, IEC 61010-1: 2001 CAT III
Specification Note: For CE compliance, conductor shall be insulated according to
IEC 61010-1:2001, Installation Category III or equivalent.
The product design provides for basic insulation only.
QUICK INSTALL
1. Plan the installation:
Locate a mounting surface for the removable mounting bracket that will allow the
monitored conductor to pass through the iris, or "window" when it is installed and keep the
product at least ½" (13mm) from any uninsulated conductors (CE). Determine cable routing
for the controller connection, allowing wiring to reach the mounting location.
2. Install mounting bracket
Drill holes to mount the bracket to the chosen surface using the included screws.
3. Wire the output connections between the sensor and the controller (solid-state contact).
4. Snap the sensor over the wire to be monitored and clip the assembly to the mounting bracket.
5. Calibrate the sensor (see page 2) with the load running normally.
6. Close up and power up!
Install Mounting Bracket
���������������������������������
������
���������
DIMENSIONS
����������������������������������
����
�������
����
�������
908
�������
����
�������
����
�������
����
�������
��
�������
�����
11061
