l e x
F
W1013-8311/ 8312

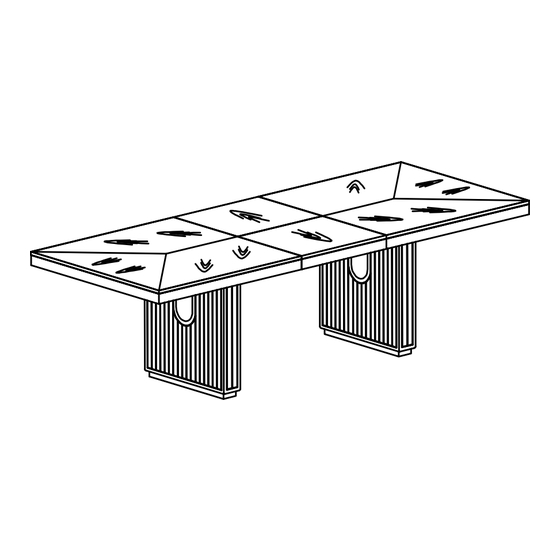

Rectangle Dining Table
IMPORTANT NOTES
Carefully remove all the parts from the carton and put them
individually on a soft cloth to prevent damage to the parts.
We have taken great care in the design of this product
and request that you carefully and accurately follow our
assembly instructions to ensure proper set-up.
We recommend at least two adults assemble this product.
D. Small Bolt
Ø5/16" - 18 UNC x 1"
16 pieces
F. Spring Washer
Ø5/16" x 1.5mm
24 pieces
t e e l
A.Table Top
1 piece
G. Flat Washer
Ø5/16 x Ø16mm x 2mm
R
B.Assembly Panel
2 pieces
24 pieces
Hardware pack
C. U Shape Leg
2 pieces
E. Large Bolt
Ø5/16" - 18 UNC x 1-3/8"
8 pieces
H. Hex Key 4mm
1 piece
Advertisement
Related Manuals for FLEXSTEEL W1013-8311
Summary of Contents for FLEXSTEEL W1013-8311
- Page 1 W1013-8311/ 8312 Rectangle Dining Table IMPORTANT NOTES Carefully remove all the parts from the carton and put them individually on a soft cloth to prevent damage to the parts. We have taken great care in the design of this product and request that you carefully and accurately follow our assembly instructions to ensure proper set-up.
-
Page 2: Important Notes
l e x t e e l IMPORTANT NOTES Do not tighten up all the screws until each part is properly assembled. Keep the Hex Key in a safe place as you may need to tighten up the bolts in the future. Use a soft cloth between these parts and the floor. - Page 3 l e x t e e l STEP 3 Ask for assistance to lift the unit upright and position it at the desired location. Adjust the levelers on the legs until the furniture is leveled. (See Figure 3). Figure 3 Adjustable leveler To Retrieve Leaf 1.
- Page 4 l e x t e e l To Store Leaf 1. Unlock the sash locks underneath the Table Top (A) and release the slide locks on both slide mechanisms to allow the slide to operate, then pull the Table Top wide open equally from both ends 2.
-
Page 5: Care Instructions
Avoid the use of harsh chemicals or abrasive cleaning materials. Wipe the table clean with a soft. dry cloth after each use. Wipe up spills quickly with a soft, dry cloth. Flexsteel Industries, Inc. For Parts or Customer Service call toll-free:...
