F
W1013-840

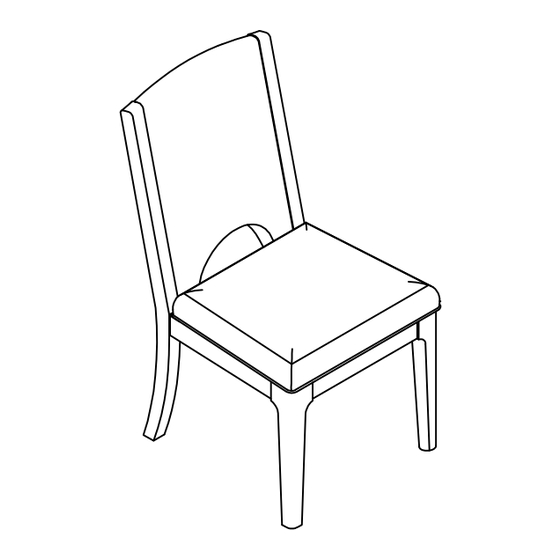

Upholstered Dining chair
IMPORTANT NOTES
Carefully remove all the parts from the carton and put them
individually on a soft cloth to prevent damage to the parts.
We have taken great care in the design of this product
and request that you carefully and accurately follow our
assembly instructions to ensure proper set-up.
We recommend at least two adults assemble this product.
A. Back frame
1 piece
D. Medium Bolt
Ø5/16" - 18 UNC x 2-1/4"
4 pieces
F. Small Bolt
Ø5/16" - 18 UNC x 1-3/4"
2 pieces
t e e l
Hardware pack
B. Front legs
2 pieces
G. Spring Washer
Ø5/16" x 1.5mm
10 pieces
R
C. Seat frame
1 piece
E. Large Bolt
Ø5/16" - 18 UNC x 3-1/2"
4 pieces
H. Flat Washer
Ø5/16 x Ø19mm x 2mm
10 pieces
Hardware pack
J. Hex Key 4mm
1 piece
