ProFire PF2100 Replacement Manual

PF2100 DOOR CARD
REPLACEMENT GUIDE
• Do not service or open enclosure unless power has been switched off and the area is known to be non-hazardous.
• No warranty is provided for the PF2100 replacement Door Card for damage resulting from improper application.
• Verify the firmware on the Terminal Card is compatible with the firmware on the replacement Door Card before purchasing.
OVERVIEW
This document contains step-by-step instructions to replace the Profire PF2100 Door Card.

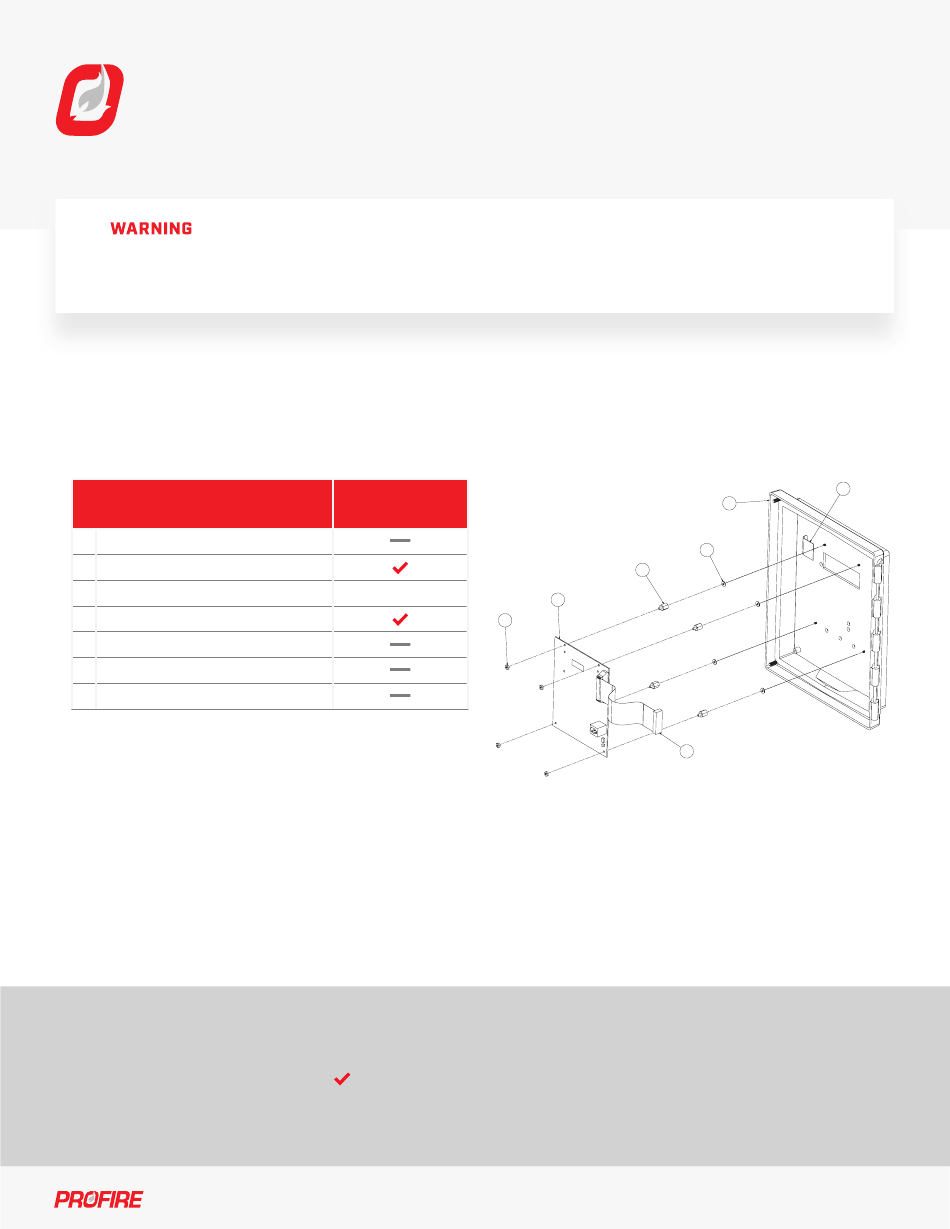

COMPONENTS
A 4 x Hex Nut
B 1 x PF2100 Door Card
C
4 x Hex Standoff
Note 1
D 4 x Flat Washer
E 1 x Door with Keypad
F 1 x Keypad Flat Flex Cable
G
1x Door Card to Terminal Card Ribbon Cable
Note 1
If the version of Door Card (B) being installed is lower than v1.7.50, ensure that 4 standoffs
(C) are installed. If the version of Door Card (B) being installed is v1.7.50 or greater, ensure that 8
standoffs (C) are installed.
Note 2
Replacement Door Cards whose version is lower than v1.7.50 do not come with standoffs.
Replacement Door Cards whose version is v1.7.50 or greater do come with standoffs.
WWW.PROFIREENERGY.COM | 855.PRO.FIRE | SUPPORT@PROFIREENERGY.COM
INCLUDED WITH
REPLACEMENT CARD
Note 2
A
BEFORE YOU GO TO SITE
Check that all components listed in the
table are included in the box and that
you have any others that you may need
to complete the repair.
E
D
C
SEE NOTE 1
B
G
F
DOC-001032 v1.2
