Choke Cable Kit
Greensmaster
Model No. 147-3066
Installation
1
Preparing the Machine
No Parts Required
Procedure
1.
Park the machine on a level surface.
2.
Engage the parking brake.
3.
Lower the cutting units.
4.
Shut off the machine and remove the key.
5.
Disconnect the main-power connectors; refer to
your machine Operator's Manual.
© 2022—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
eTriFlex 3360 Traction Unit
Removing the Existing
Choke Cable
No Parts Required
Removing the Choke Cable from
the Engine
Take note of the cable routing from the engine to the
console. The new cable follows the same routing
direction as the old cable.
Register at www.Toro.com.
2
1.
Raise the hood.
2.
Remove the hardware that secures the choke
cable to the engine

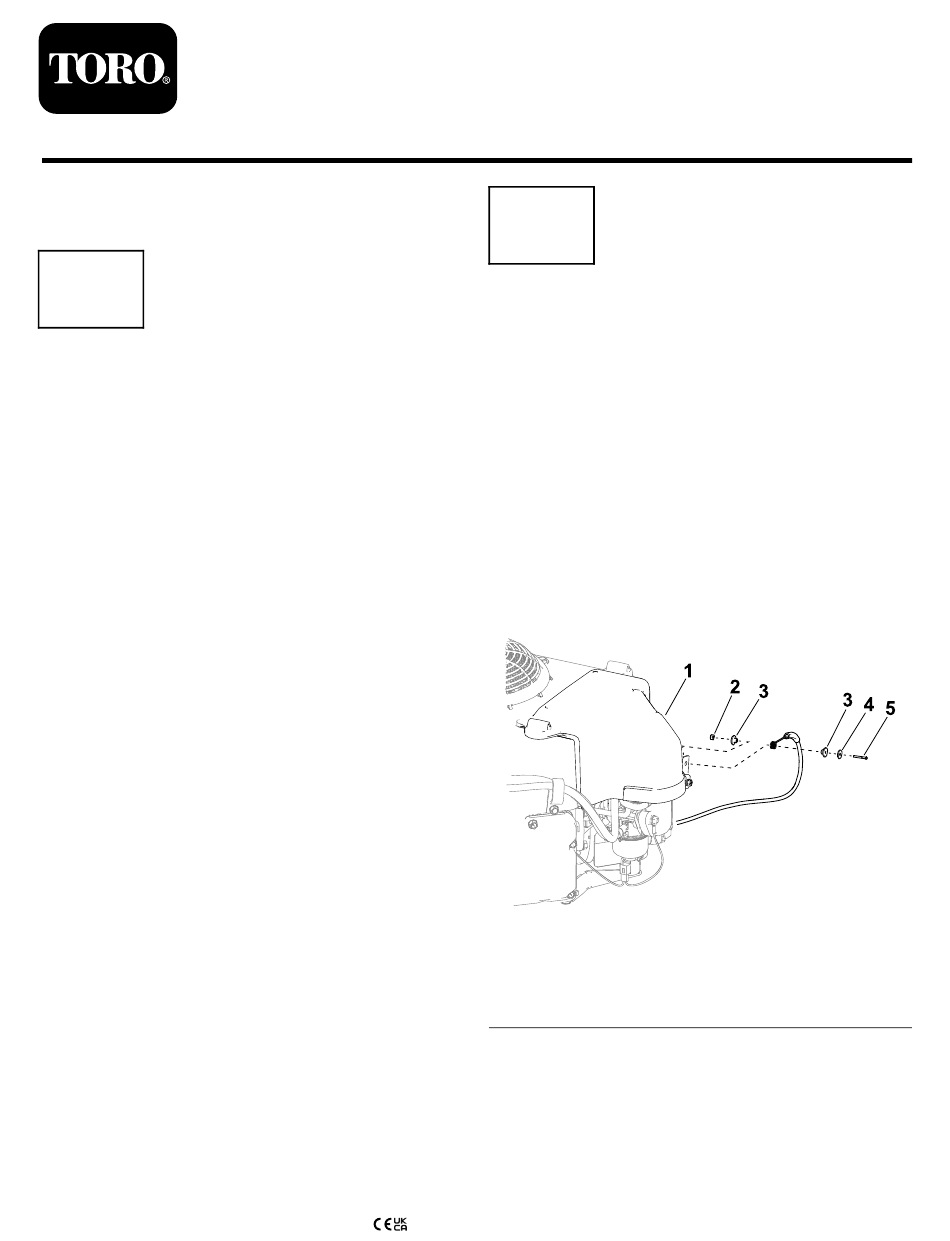

Figure 1
1. Engine
2. Nut
3. Spacer
3.
Remove the choke cable from the engine.
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Form No. 3454-209 Rev A
Installation Instructions
(Figure
1).
4. Spacer
5. Bolt
*3454-209*
g399376
Advertisement
Related Manuals for Toro 147-3066
Summary of Contents for Toro 147-3066
- Page 1 Form No. 3454-209 Rev A Choke Cable Kit Greensmaster ® eTriFlex 3360 Traction Unit Model No. 147-3066 Installation Instructions Installation Removing the Existing Choke Cable Preparing the Machine No Parts Required No Parts Required Removing the Choke Cable from Procedure the Engine Park the machine on a level surface.
- Page 2 Removing the Choke Cable from the Console Remove the 10 button-head screws from the console and remove the console plate (Figure Retain the screws. g398898 Figure 2 1. Button-head screw 4. Bolt 2. Console plate 5. Choke cable 3. Speed nut Remove the bolts and speed nuts that secure the choke cable to the console plate (Figure Remove the choke cable from the machine.
- Page 3 Routing the Choke Cable Route the choke cable as shown in Figure Note: The new cable follows the same routing direction as the old cable. g399377 Figure 3 1. Cable ties Installing the Choke Cable to the Engine Set the choke lever to the full O position.
