Toro Greensmaster eTriFlex 3360 Installation Instructions Manual

Toro Greensmaster eTriFlex 3360 Installation Instructions Manual

3wd kit traction unit
Hide thumbs Also See for Greensmaster eTriFlex 3360:

Advertisement

Table of Contents

3WD Kit
Greensmaster
Model No. 04504—Serial No. 400000000 and Up
Installation
1
Preparing the Machine
No Parts Required
Procedure
1.
Park the machine on a level surface.
2.
Engage the parking brake.
3.
Lower the cutting units.
4.
Shut off the machine and remove the key.
5.
Disconnect the main-power connectors; refer to
your machine Operator's Manual.
2
Raising the Machine
No Parts Required
Procedure
Raise the machine; refer to the pre-maintenance
section of your machine Operator's Manual.
© 2024—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
®
eTriFlex
®
3360 or 3370 Traction Unit
Remove the Rear Wheel
No Parts Required
Procedure
Register at www.Toro.com.
3
1.
Remove the 4 lugnuts that secure the wheel to
the wheel-hub assembly

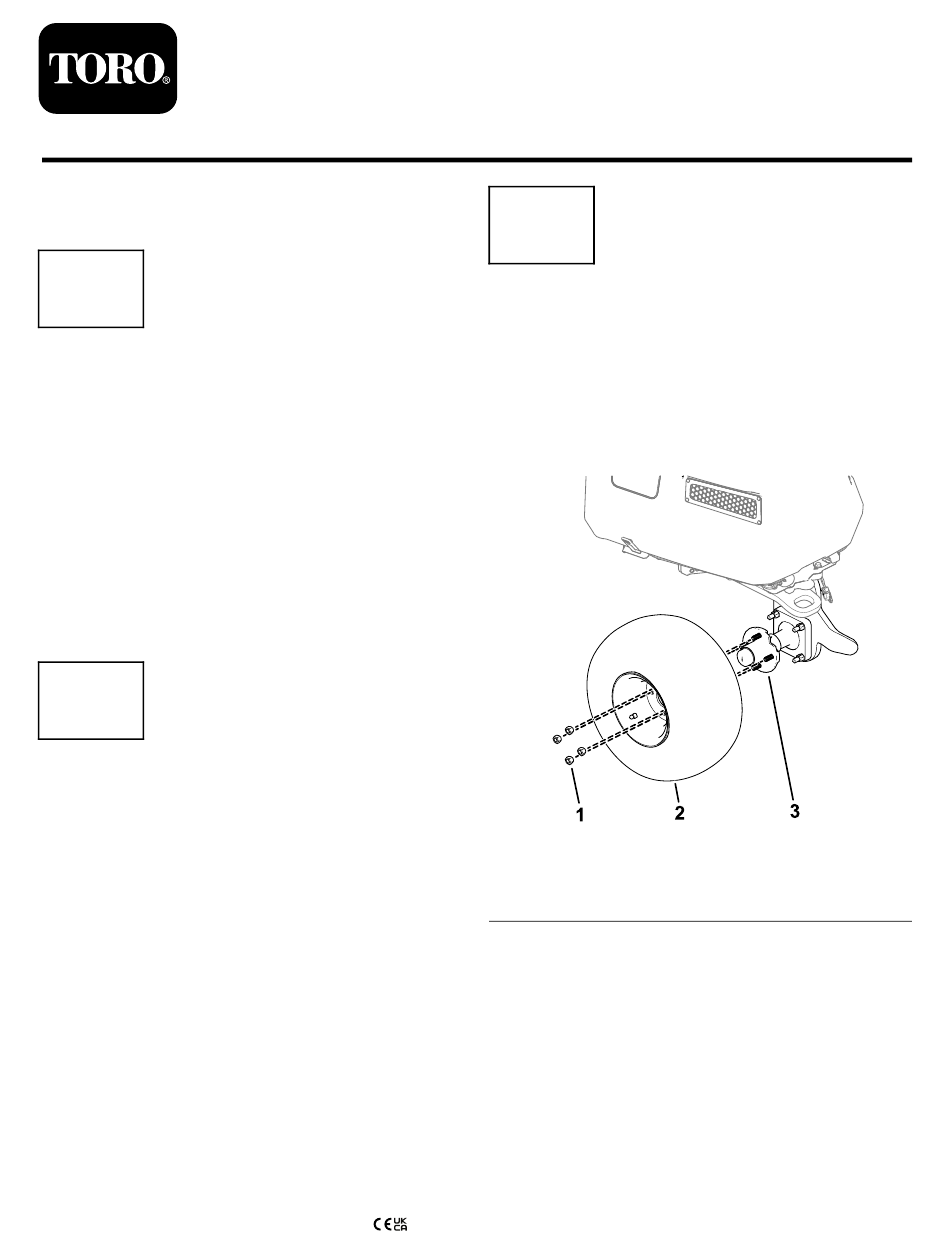

Figure 1
1. Lugnut
2. Tire
2.
Remove the wheel from the machine
Original Instructions (EN)
Printed in the USA
All Rights Reserved
Form No. 3468-435 Rev A
Installation Instructions
(Figure
1).
3. Wheel-hub assembly
(Figure
*3468-435*
g293906
1).

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Greensmaster eTriFlex 3360 and is the answer not in the manual?

Questions and answers

Related Manuals for Toro Greensmaster eTriFlex 3360

Summary of Contents for Toro Greensmaster eTriFlex 3360

  • Page 1 Raise the machine; refer to the pre-maintenance section of your machine Operator’s Manual. Remove the wheel from the machine (Figure *3468-435* © 2024—The Toro® Company Original Instructions (EN) Register at www.Toro.com. 8111 Lyndale Avenue South Printed in the USA Bloomington, MN 55420...

  • Page 2: Installing The Gearbox

    Removing the Existing Installing the Gearbox Wheel-Hub Assembly Parts needed for this procedure: Gearbox assembly No Parts Required Dust cap Procedure Snap ring Bolt (M12) Remove the existing wheel-hub assembly by removing Fitting the bolts and nuts that secure the assembly to the castor fork (Figure Vent hose...
  • Page 3 g301398 Figure 4 1. Plug 2. Vent hose and fitting Secure the vent hose and fitting to the gearbox (B of Figure g311730 Figure 3 1. Bolt (M12) 5. Snap ring 2. Castor fork 6. Thrust washer 3. Gearbox 7. Bearing 8.
  • Page 4 Connecting the Gearbox Wire Harness Parts needed for this procedure: R-clamp Bolt (5/16 x 1-1/2 inches) Locknut (5/16 inch) Push-mount fastener Procedure Raise the hood; refer to your machine Operator’s g344561 Figure 6 Manual. 1. Steering column 5. Gearbox wire harness Route the gearbox wire harness toward the 2.

  • Page 5: Installing The Fuse

    Greasing the Hub Assembly Installing the Fuse No Parts Required Parts needed for this procedure: Fuse Procedure Grease the hub assembly; refer to Greasing the Hub Procedure Assembly (page Install the fuse to the designated 3-wheel-drive slot on the reel-drive-circuit fuse block; refer to the electrical system maintenance section in your machine Operator’s Manual.

  • Page 6: Completing The Installation

    Installing the Serial-Plate Engaging 3-Wheel-Drive Decal Mode Parts needed for this procedure: No Parts Required Serial-plate decal Procedure The 3-wheel-drive mode should automatically Procedure enable when you install the gearbox-wire-harness Install the serial-plate decal on the frame tube as connections to the machine wire harness. shown in Figure To ensure that the 3-wheel-drive mode is activated,...

  • Page 7: Maintenance

    Maintenance Changing the Gearbox Fluid Greasing the Hub Assembly Service Interval: After the first 8 hours Every 800 hours Service Interval: Every 100 hours Fluid specification: SAE 80W-90 Use No. 2 lithium grease to lubricate the hub assembly. Refer to Figure 10 for the location of the Gearbox fluid capacity: approximately 1.2 L (40 fl...
  • Page 8 Allow the fluid to drain completely from the gearbox. Clean the plug. Install the drain plug into the drain port (Figure 11). Adding Fluid to the Gearbox Remove the fill-port fitting shown in Figure g321851 Figure 12 1. Fitting 2. Fill port Add the specified fluid to the gearbox until the fluid level reaches the bottom of the fill port.
  • Page 9 Notes:...
  • Page 10 Notes:...
  • Page 11 Countries Other than the United States or Canada Customers who have purchased Toro products exported from the United States or Canada should contact their Toro Distributor (Dealer) to obtain guarantee policies for your country, province, or state. If for any reason you are dissatisfied with your Distributor's service or have difficulty obtaining guarantee information, contact your Authorized Toro Service Center.
