Toro 08713 Operator's Manual

Front Hydraulic Blade
Sand Pro
Model No. 08713—Serial No. 260000001 and Up
Setup
1
Mounting the Hydraulic
Blade to the Frame Lift Kit
Parts needed for this procedure:
1 Front hydraulic blade assembly
Procedure
Note:
The traction unit must be equipped with the
Front Lift Frame Kit.
1. Position the machine and the attachment on a
level surface.
2. Remove any existing attachment from the front
of the machine.
3. Start the engine and drive the traction unit into
position behind the attachment adapter. Lower
the traction unit adapter.
Note:
Ensure that the locking lever
pivoted to the left (unlocked position) as viewed
from the front of the machine.
4. Lift the attachment adapter onto the traction unit
adapter.
Note:
Be careful not to pinch yourself between
adapters.
5. Pivot the locking lever to the right to lock the
adapters together
© 2019—The Toro® Company
8111 Lyndale Avenue South
Bloomington, MN 55420
® /Infield Pro
(Figure
(Figure 1).
Register at www.Toro.com.
® 5040 Traction Unit
1. Attachment adapter
2
Adjusting the Link
Assembly
No Parts Required
Procedure
1) is
1. With the attachment mounted and secured on
the traction unit, raise the attachment.
2. Measure the gap between the top washer
and the spacer in the link assembly on the
attachment adapter as shown in
The gap between the washer and the shoulder
should be 1.5 to 2 mm (0.060 to 0.080 inch).
Form No. 3432-337 Rev A
Operator's Manual

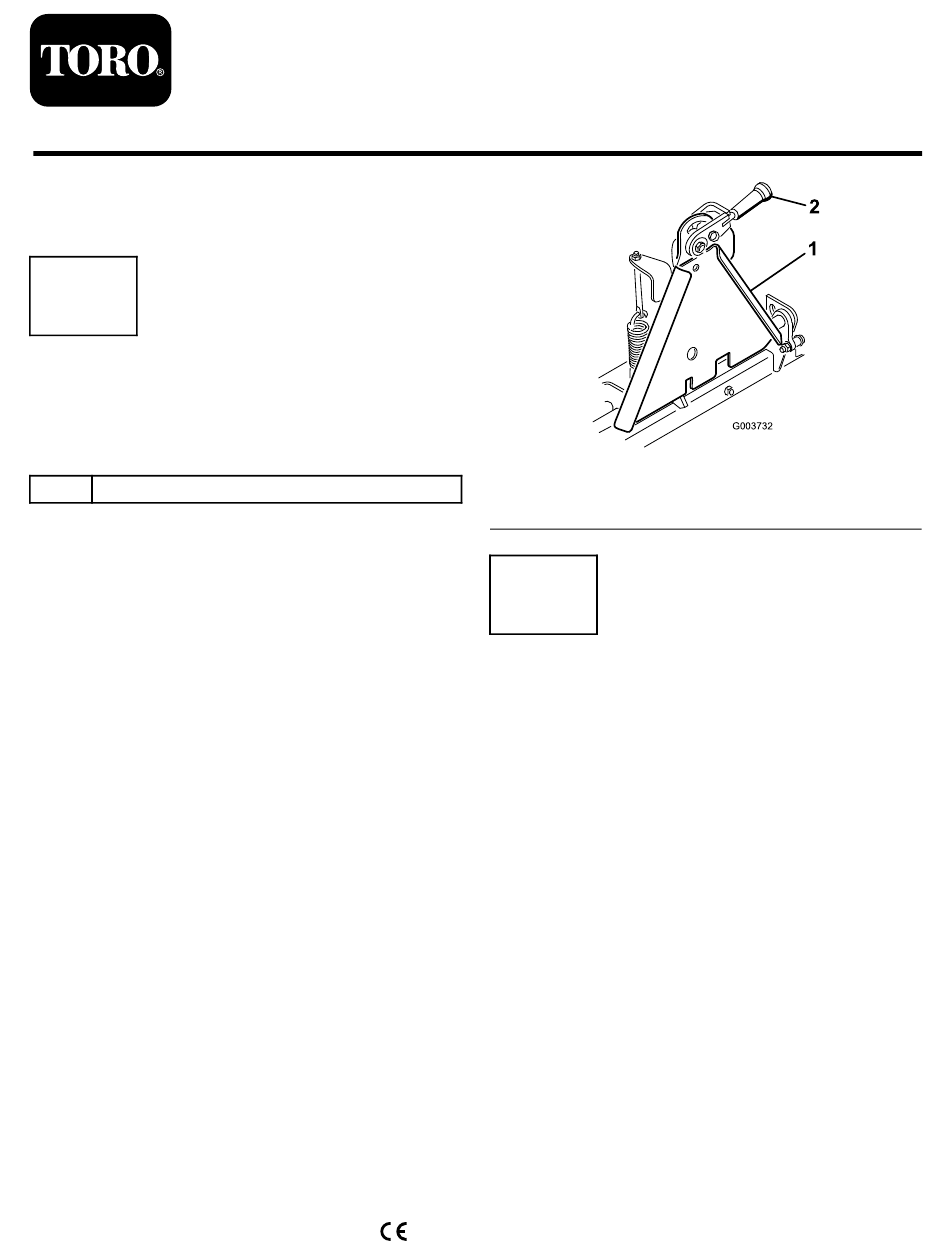

Figure 1
2. Locking lever
Original Instructions (EN) All Rights Reserved *3432-337* A
Printed in the USA
g003732
Figure 2.
