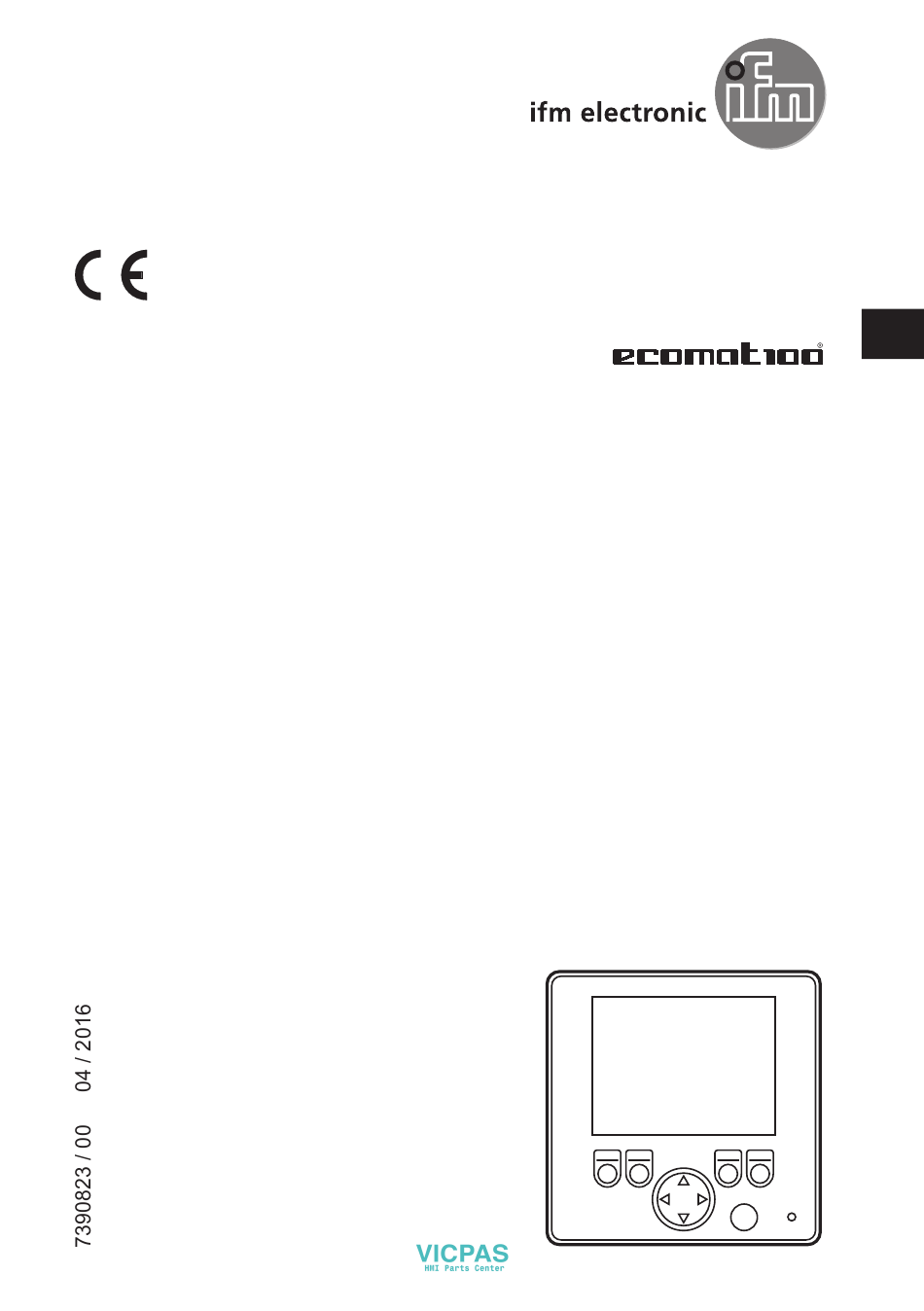

- Page 1 Installation instructions BasicDisplay CR0451...
-
Page 2: Table Of Contents
BasicDisplay Contents 1 Preliminary note � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � � 4 1�1 Symbols used�... - Page 3 BasicDisplay This document is the original instructions� Licences and trademarks Microsoft , Windows , Windows XP , Windows Vista and Windows 7 are registered trademarks of Microsoft ® ® ® ® ® Corporation� All trademarks and company names are subject to the copyright of the respective companies�...
-
Page 4: Preliminary Note
BasicDisplay 1 Preliminary note This document applies to devices of the type "BasicDisplay" (art� no�: CR0451)� It is deemed as a part of the unit� This document is intended for specialists� These specialists are people who are qualified by their appropriate training and their experience to see risks and to avoid possible hazards that may be caused during operation or maintenance of the device�... -
Page 5: Safety Instructions
BasicDisplay 2 Safety instructions 2.1 In general These instructions contain texts and figures concerning the correct handling of the device and must be read before installation or use� Observe the operating instructions� Non-observance of the instructions, operation which is not in accordance with use as prescribed below, wrong installation or incorrect handling can seriously affect the safety of operators and machinery�... -
Page 6: Functions And Features

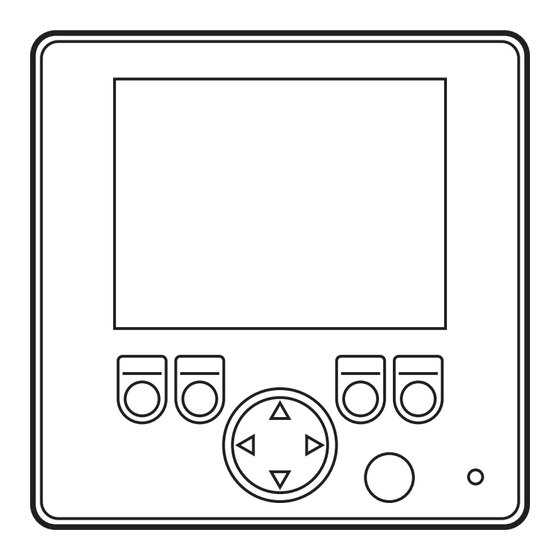

BasicDisplay 3 Functions and features BasicDisplay is a programmable graphic display for controlling, parameter-setting and operation of mobile machines and plants� Communication with other system components is ensured via a CAN interface� Application-specific extensions and adaptations are possible in conjunction with additional devices of the modular Basic products�... -
Page 7: 3�3 Devices Of The Basic Products (Examples)
BasicDisplay 3.3 Devices of the Basic products (examples) ● BasicController (art� no�: CR040x) mobile controller, freely programmable to IEC 61131-3 2 CAN interfaces (incl� interface for CR0451 BasicDisplay) configurable inputs/outputs ● BasicRelay (art� no�: CR0421) freely wirable relay and fuse carrier for 6 automotive relays and 10 automotive fuses ●... -
Page 8: Installation
BasicDisplay 4 Installation 4.1 General installation instructions 4.1.1 Types of mounting and required accessories Mounting type Required accessories Art. no. Installation e�g� in a panel mounting frame EC0403 mount e�g� as desktop unit that can be mount set EC0405 ® ®... -
Page 9: 4�3 Ram ® Mount
BasicDisplay 4.3 RAM mount ® Using the RAM mount set, available as accessories, the device can be used as a ® firmly mounted desktop unit� Two balls allow a variable orientation of the unit� 25,4 (1") mount set EC0405 Mounting plate with ball ®... -
Page 10: 4�4 Surface Mounting
BasicDisplay 4.4 Surface mounting Suitable for material thicknesses up to 3 mm� ► Make a round cutout and hole for the locating pins� Cutout for surface mounting (→ 8 Technical data) ► Remove the M52 nut from the device� ► Insert the device into the cutout� ►... -
Page 11: 4�5 Combination With Basiccontroller
BasicDisplay 4.5 Combination with BasicController 4.5.1 Installation of the display with cover ► Remove the M52 nut from the device� ► Place the device into the cover with built-in display recess� ► Screw the M52 nut onto the device and tighten by hand� Mounting principle Cover with built-in display recess 1: M52 nut... -
Page 12: 4�5�3 Removing The Cover
BasicDisplay ► Close the cover onto the lower part� The 2 guides and slots provide a pivot point� ► Move the locking lever back into its initial position� > The cover is locked� 1: BasicController 2: cover with premounted BasicDisplay 4.5.3 Removing the cover ►... -
Page 13: Electrical Connection
BasicDisplay 5 Electrical connection 5.1 General electrical connection Wiring (→ 8 Technical data) ► If the device is used as a stand-alone display, provide the connected cable with a strain relief� M12 connector: Max� tightening torque 1,5 Nm� 5.2 Fuse ►... -
Page 14: Display Elements
BasicDisplay 6 Display elements 1: status LED Operating states (→ 8 Technical data) -
Page 15: Set-Up
BasicDisplay 7 Set-up 7.1 Programming The user can easily create the application software by means of the IEC 61131-3 compliant programming system CODESYS 2�3� WARNING The user is responsible for the safe function of the application programs which he created himself� If necessary, he must additionally carry out an approval test by corresponding supervisory and test organisations according to the national regulations�... -
Page 16: Technical Data
(on the front panel when mounted, otherwise IP 65) Operating/storage temperature -20...70° C / -30...80° C Weight 0.17 kg ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR0451 / page 1 16.01.2014... - Page 17 (data valid for the 24 V system) Pulse 4, severity level: III; function state C (data valid for the 12 V system) ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR0451 / page 2...
- Page 18 Connection M12 connector, A-coded, 5 poles Wiring Supply, CAN n.c. 8...32 V DC CAN_H CAN_L ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen We reserve the right to make technical alterations without prior notice! CR0451 / page 3 16.01.2014...
-
Page 19: Maintenance, Repair And Disposal
BasicDisplay 9 Maintenance, repair and disposal 9.1 Maintenance The device does not contain any components that need to be maintained by the user� 9.2 Cleaning the housing surface ► Disconnect the device� ► Clean the device from dust and light dirt using a soft, chemically untreated, dry cloth�...
