Summary of Contents for PowMr POW-RELAB Series

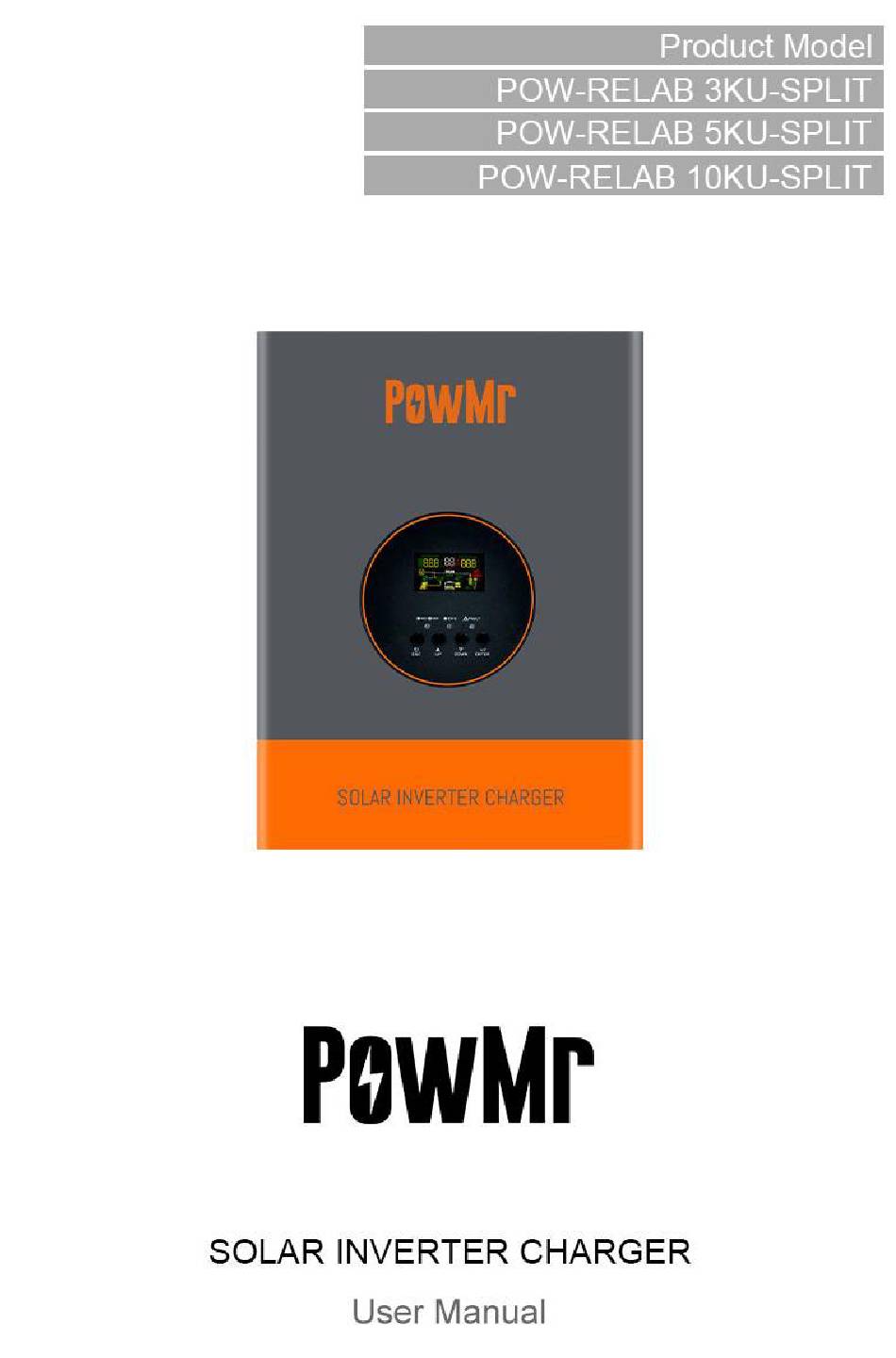

Page 1 User Manual POW-RELAB SERIES...
Page 2: Important Safety Instructions
User Manual POW-RELAB SERIES Important Safety Instructions Please keep the user manual properly for future reference! Warning: It is essential to read, understand, and adhere to all safety instructions provided in this document. Failure to comply with safety regulations may result in property damage or personal injury.
Page 3: Installation
User Manual POW-RELAB SERIES ➢ Installation 1. Do not use this product in areas where there is a risk of gas or dust explosions. Prior to use, consult with the battery manufacturer's relevant literature to ascertain the compatibility of this product with the battery.
Page 4 User Manual POW-RELAB SERIES ➢ Transportation and Storage 1. Ensure that the power and battery cables are disconnected before storing or transporting the product. 2. If the equipment is not in its original packaging during transportation, any transport damage is not the responsibility of the manufacturer.
Page 5: Table Of Contents
User Manual POW-RELAB SERIES Table of Content Important Safety Instructions..........................1 1 Overview ................................4 1.1 Scope ................................. 4 1.2 Target Audience ............................4 1.3 Manual Usage ............................4 2 Product Overview ............................... 5 2.1 Features ..............................5 2.2 System Basic Architecture ........................6 2.3 Product Appearance ..........................
Page 6 User Manual POW-RELAB SERIES 6.1 Alarms ..............................32 6.2 Alarm Event ............................33 6.3 Troubleshooting ............................ 34 7 System Maintenance ............................35 8 Specifications ..............................36 8.1 Table 1: Utility Mode Parameters ...................... 36 8.2 Table 2: Inverter Mode Parameters ....................36 8.3 Table 3: Charging Mode Parameters ....................
Page 7: Overview
1. Before using the product, carefully review this user manual and keep it stored in an easily accessible location. 2. All information in the user manual, including images and symbols, is the property of PowMr. Unauthorized use of any portion or all of the content is prohibited for individuals outside the company.
Page 8: Product Overview
2.1 Features 1. The POW-RELAB-SPLIT series low frequency solar inverter-charger integrated machines from PowMr are suitable for most residential and commercial scenarios, ensuring higher output stability and reliability. 2. Dual AC outputs support single-phase 110V AC output or two-phase 220V AC output from a single inverter, easily powering split-phase equipment.
Page 9: System Basic Architecture
User Manual POW-RELAB SERIES 2.2 System Basic Architecture The following illustration depicts the basic application of the inverter/charger, along with the additional equipment required to form a complete operational system: ⚫ Engine or mains power ⚫ Photovoltaic modules Additional system architectures can be consulted with system integrators based on your requirements.
Page 10: Product Appearance
User Manual POW-RELAB SERIES 2.3 Product Appearance 2.3.1 3KW Model (POW-RELAB-SPLIT 3KU) RS232 communication interface AC input BMS/RS485 communication interface AC output Dry contact ports Photovoltaic input Battery negative terminal Toggle switch Battery positive terminal Input overcurrent protector Battery circuit fuse...
Page 11 User Manual POW-RELAB SERIES 2.3.2 5KW & 10KW Models (POW-RELAB-SPLIT 5KU/ POW-RELAB-SPLIT 10KU) Power on/ off switch RS232 communication port AC input BMS/RS4B5 communication port AC output Dry contact Communication port Battery terminal negative PV input Battery terminal positive Battery input...
Page 12: Installation
User Manual POW-RELAB SERIES 3 Installation 3.1 Unboxing and Inspection Before assembly, please inspect the unit to ensure that the items in the packaging are undamaged. Inside the package, you will find the following items: ⚫ Inverter device x1 ⚫ Battery fuse x 1 ⚫...
Page 13: Equipment Installation
User Manual POW-RELAB SERIES 3.3 Equipment Installation Before selecting an installation location, consider the following points: ⚫ Do not install the inverter on combustible building materials. ⚫ Install on a solid surface. ⚫ Position the inverter at eye level for easy viewing of the LCD display.
Page 14: Wiring
User Manual POW-RELAB SERIES 4 Wiring 4.1 Cable Size and Circuit Breaker Specifications ➢ PV IN The configuration of the photovoltaic input cable depends on the actual power and voltage parameters of the photovoltaic array.  Required Parameters: Photovoltaic input power, Photovoltaic input voltage ...
Page 15: Ac Input & Output Connection
User Manual POW-RELAB SERIES 4.2 AC Input & Output Connection 1. Connect the live wire, neutral wire, and ground wire to the respective terminals of the mains input and AC output as illustrated below, and install circuit breaker protection devices that meet the requirements on each of the two lines.
Page 16 User Manual POW-RELAB SERIES AC Input Wiring for 5KW/10KW Model: Green & yellow → Ground wire, Blue → Neutral wire, Red → Live wire AC Output Wiring for 5KW/10KW Model: Green & yellow → Ground wire, Blue → Neutral wire, Red →...
Page 17: Battery Connection
Battery Connection for 3KW Model: Black→Negative terminal, Red→Positive terminal Battery Connection for 5KW/10KW Model: Black→Negative terminal Red→Positive terminal ATTENTION ⚫ The POW-RELAB series inverters come standard with a fuse device for the battery circuit. Please use it according to actual needs.
Page 18: Photovoltaic Connection
User Manual POW-RELAB SERIES DANGER ⚫ Before connecting the battery, it is essential to disconnect the circuit breaker to avoid the risk of electric shock. Do not perform any operations while the power is on. ⚫ Ensure that the positive and negative terminals of the battery are correctly connected and not reversed, as this could damage the inverter.
Page 19 User Manual POW-RELAB SERIES DANGER ⚫ Before connecting the photovoltaic panels, it is essential to open the circuit breaker to avoid the risk of electric shock. Do not perform any operations while the power is on. ⚫ Please ensure that the open-circuit voltage of the connected photovoltaic modules in series does not exceed the maximum open-circuit voltage of the inverter (which is 150V in the POW-RELAB-SPLIT series), as otherwise, the inverter may be damaged.
Page 20 User Manual POW-RELAB SERIES ⚫ In any scenario, the total output power is equal to the power of a single photovoltaic panel multiplied by the total number of panels. The guideline for configuring photovoltaic panels is that the total power should be equal to or slightly greater than the maximum allowable PV power of the solar controller (refer to the technical specifications table).
Page 21: Final Installation
User Manual POW-RELAB SERIES MPPT controller: Every 6 panels of photovoltaic panels are connected in series to form one group, and 7 groups of photovoltaic panels are connected in parallel. ➢ Solar panel daily output = Total power of solar panel x Controller conversion efficiency x Local average sunlight time.
Page 22 User Manual POW-RELAB SERIES 4.6.3 Dry Contact Function Operating Principle: Dry contacts can control the AC input switch for battery charging. Dry Contact Port: Device Condition Status NC&C NO&C Power Off Device is turned off with no output power. Close Open Battery voltage <...
Page 23: Operation
User Manual POW-RELAB SERIES 5 Operation 5.1 Starting the Inverter After closing the circuit breaker of the battery line, start the inverter by using the boat-shaped switch at the bottom. Once the inverter starts up normally, sequentially close the circuit breakers of the photovoltaic input, AC input, and AC output lines.
Page 24: Display Panel Introduction
User Manual POW-RELAB SERIES Function Keys Function Key Description To exit setting mode. To go to previous selection. DOWN To go to next selection. ENTER To confirm the selection in setting mode or enter setting mode. 5.3 Display Panel Introduction...
Page 25 User Manual POW-RELAB SERIES Output Information Indicates output voltage, charging current, load percentage, photovoltaic input current, charging mode, firmware version. Battery Information In battery mode and mains mode, charging status is represented by 0-24%, 25-49%, 50-74%, and 75-100% indicating battery level.
Page 26: Interface Overview
User Manual POW-RELAB SERIES 5.4 Interface Overview Middle Display Left Display Right Display AC Input Voltage AC Output Voltage Battery Voltage Charging Current Device Temperature Load Percentage Photovoltaic Input Voltage Photovoltaic Input Current Operating Mode Charging Mode Firmware Version 5.5 OPERATION 5.5.1...
Page 27 User Manual POW-RELAB SERIES showing with a continuous beeping sound, if the electricity not recovery, it will keep this status until the battery reaches the low voltage cut-off point and shut down automatically. 5.5.5 Bypass Mode The product's power button is off. but the electricity or generator on, it has output to load meanwhile charging the battery.
Page 28: Lcd Screen Settings
User Manual POW-RELAB SERIES 5.6 LCD Screen Settings ➢ To enter the settings mode, follow these basic steps and configure the program as needed: 1. Enter settings mode: Long press the ENTER button for 10 seconds. 2. Exit mode: Press the ESC button multiple times.
Page 29 User Manual POW-RELAB SERIES Additionally, if the battery voltage reaches the low battery warning level or the preset voltage point for switching from DC output to AC output, the power supply to the load will switch to the grid. The battery power is only activated when solar power is available.
Page 30 User Manual POW-RELAB SERIES battery. When the battery voltage drops below the setting value of item 09, grid power will be automatically enabled to charge the battery. When the battery voltage exceeds the setting value of item 10, the charging source automatically switches to solar energy.
Page 31 User Manual POW-RELAB SERIES Set the shutdown voltage point for battery protection. Battery When the battery voltage Discharge 40.8V 38.0~46.0V drops below this set value, Cutoff Shutdown the inverter will automatically Voltage shut down to prevent deep discharge of the battery.
Page 32 User Manual POW-RELAB SERIES faults. Backlight remains on and Always On does not turn off. Backlight remains off and Always Off Backlight does not turn on. Control Automatically turns off Delayed Off backlight after 1 minute of default inactivity. When enabled, the buzzer...
Page 33 User Manual POW-RELAB SERIES After abnormal shutdown of the inverter, the device can Startup 46.0V 42~48.8V only be manually restarted if Battery Voltage the battery voltage is higher than this set value. After shutdown due to battery undervoltage, the Undervoltage...
Page 34 User Manual POW-RELAB SERIES shut down to protect the battery. If the inverter operation mode is set to Battery Switch to Priority Mode, when the 5~50% Utility Mode default battery SOC is below the set value, it will forcibly switch to utility charging mode.
Page 35: Troubleshooting
User Manual POW-RELAB SERIES 6 Troubleshooting 6.1 Alarms Left Display Right Display Instructions Device Communication Connection Failure PV temperature sensor abnormal High PV temperature alarm PV current detection signal abnormal Abnormal Utility Output Abnormal Load in the Device Overload in the Device...
Page 36: Alarm Event
User Manual POW-RELAB SERIES Abnormal load fault Inverter over temperature fault High battery voltage fault Low battery voltage fault Load-causing over temperature fault Current detection signal failure Abnormal mains output fault Temperature sensor connection failure Host computer software planned shutdown failure 6.2 Alarm Event...
Page 37: Troubleshooting
User Manual POW-RELAB SERIES 6.3 Troubleshooting Issue Possible Causes Solution Inverter fails to operate Battery terminals not Tighten the battery properly after startup tightened terminals. Inspect the polarity of the Sparking observed at Reverse polarity connection terminals and reconnect inverter terminals them correctly.
Page 38: System Maintenance
User Manual POW-RELAB SERIES 7 System Maintenance 1. To maintain optimal and long-term performance, it is recommended to conduct the following checks twice a year: 2. Ensure that the airflow around the all-in-one machine is not obstructed, and clear any dirt or debris from the heat sink.
Page 39: Specifications
User Manual POW-RELAB SERIES 8 Specifications 8.1 Table 1: Utility Mode Parameters POW-RELAB POW-RELAB POW-RELAB Model 3KU-SPLIT 5KU-SPLIT 10KU-SPLIT Input Voltage Waveform Pure Sine Wave Nominal Input Voltage 110Vac AC Input Voltage Range 77~132Vac Nominal Input Frequency 50Hz / 60Hz (Auto Detection) Transfer Time <8ms...
Page 40 User Manual POW-RELAB SERIES 8.3 Table 3: Charging Mode Parameters POW-RELAB 3KU- POW-RELAB POW-RELAB Model SPLIT 5KU-SPLIT 10KU-SPLIT Battery Battery Type SEL, GEL, FLD, AGM, LiCoMnNiO2, LiFePO4 Battery Capacity Up to 500Ah Max. AC Charging Current 105A Max. PV Charging Current...
Page 41 User Manual POW-RELAB SERIES 8.4 Table 4: General Parameters POW-RELAB POW-RELAB POW-RELAB Model 3KU-SPLIT 5KU-SPLIT 10KU-SPLIT Operating temperature -10°C to 50°C Storage temperature -20°C to 60°C Humidity Relative humidity from 0% to 95% (non-condensing) Noise ＜45dB Dimensions (LxWxH) 465*310*135mm 545*400*200mm...
Page 42 User Manual POW-RELAB SERIES...

This manual is also suitable for:

Pow-relab 3ku-split Pow-relab 5ku-split Pow-relab 10ku-split
